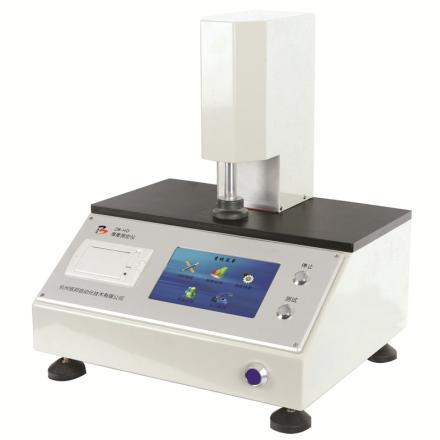

ZhiBang ZB-HD Computer Measurement and Control Toilet Paper Thickness Meter Specifications
Search
Brand：ZhiBang
Model：ZB-HD
Name：Computer Measurement and Control Toilet Paper Thickness Meter
Specifications
| Measurement range | 0~12mm |
| Resolution | 0.001mm |
| Error of indication | ±0.003mm/±0.5％ |
| Indication variability | ≤ 0.003Mm or ≤ 0.5% |
| Measurement plane parallelism | ≤0.004mm |
| Contact area | 1000mm² |
| Contact Pressure | 2.0±0.1kPa |
| Probe descent speed | 2.0±0.2mm/s |
| Dimensions | 400*360*520mm |
| Weight | About 25kg |
| Contact surface diameter | 35.7±0.1mm |
Packing list
After-sales instructions
Warranty days: 365 days
