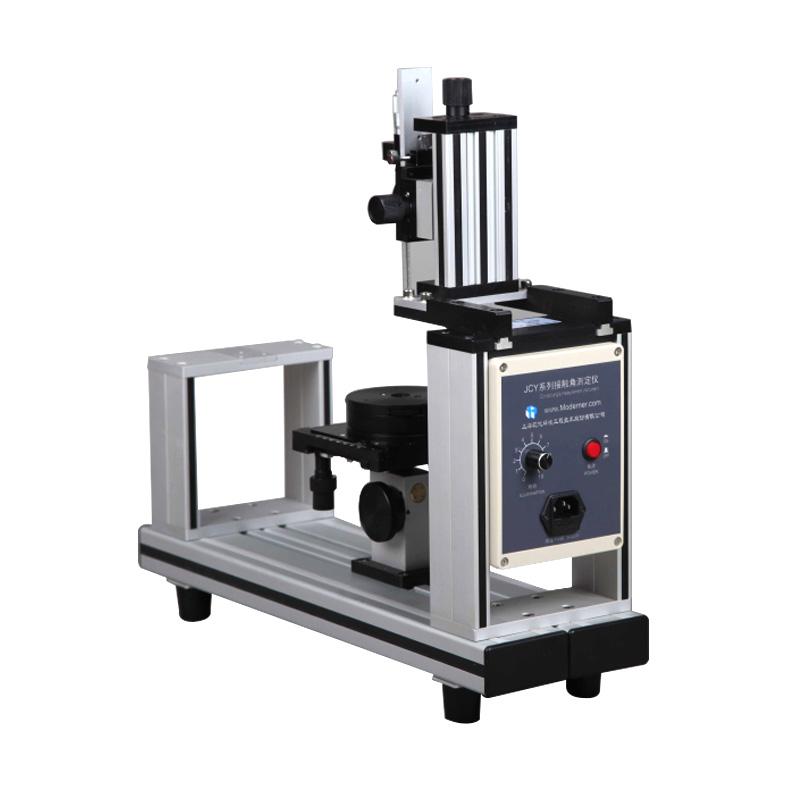

MODERNER XD-26-JCY-4 contact angle Tester with tilted platform

XD-26-JCY-4

Contact angle Tester

Introduction

XD-26-JCY series contact angle measuring instrument is a standard instrument used to measure solid contact angle, surface energy, etc. and liquid surface tension. Using professional optical video measurement technology, the images captured by high-precision industrial cameras are sent to the computer for data processing. It has complete functions and is very convenient to operate. Comply with ASTM D 724, ASTM D 5946, ISO15969 and other standards. It is widely used in quality testing of industrial and mining enterprise laboratories and scientific research in colleges and universities.

main feature

1. Using the new CCD camera system, the image of the measured droplet can be clearly displayed on the computer screen for high-precision contact angle analysis and measurement. The highest resolution of the camera: 1280×1024, frame rate: 15 or 45/ Second

2. High-precision level control, the combination of hardware level correction and software level correction (curve baseline correction) achieves more accurate horizontal line alignment of the contact angle curve

3. It adopts aviation aluminum body, which is both light and stable.

4. Automatic calculation of contact angle, left and right contact angle comparison function

5. Dynamic contact angle analysis system, including contact angle analysis that changes with time, advancing angle/retreating angle, tilt angle, and rolling angle analysis

6. Solid surface energy estimation: Surface free energy estimation using Fowkes one-liquid method, Owen two-liquid method, Zisman method, Acid-Base method, etc.

7. The software comes with a brightness correction function to modify the image brightness.

8. Multiple testing methods: hanging drop method, seat drop method (intravenous drop method)

9. Surface tension measurement: hanging drop method (Young’s equation) to measure liquid surface tension

10. Database management functions: query, backup, compression, and export of EXCEL tables

11. The operation calculation software is based on WIN XP and VIAST systems

Application scope

• During the metal welding process, the adhesion of the flux to the metal is tested;

• Adhesion between ink, metal, and paper in the printing industry;

• Study on the degree of adhesion between adhesive and solid;

• In the aerospace industry, the degree of wetting of aircraft substrates by aerial rain and fog is detected;

• Determination of the contact angle between shrapnel and rain and fog in the air in military science;

• During the oil extraction process, the determination of the advancing angle and receding angle of the injected additives and the solids in the crude oil;

• Determination and research on the wettability between nanomaterials and different active agents;

• Determination of hydrophilic angle of aluminum foil.

Comparison of parameters of contact angle measuring instrument series

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
