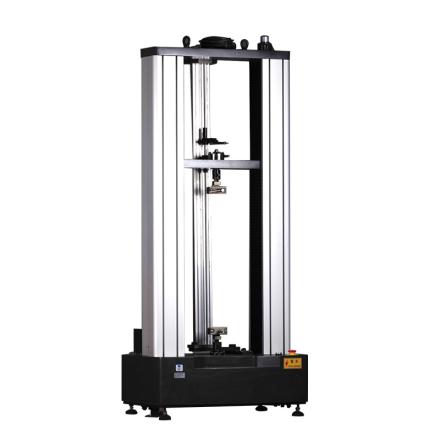

Moderner WDW-200 Microcomputer-controlled electronic universal testing machine Specifications
Search
Brand：Moderner
Model：WDW-200
Name：Microcomputer-controlled electronic universal testing machine
Specifications
| structural form | portal |
| Maximum test force | 200KN |
| Operation mode | Microcomputer control |
| Force Measurement Range | 2~100% |
| Test force Accuracy | +/- 1% better than indication |
| distortion display error | +/- 1% (or ± 0,5%) |
| Test force minimum resolution | 0.01N |
| Beam displacement Accuracy | ±1%(±0.5%) |
| Deformation Accuracy | Better than +/- 1% (± 0.5%) |
| Test speed range | 0.01~500/200mm/min |
| effective travel | > 700m (can be customized according to customer needs) |
| test width | 400mm |
| Test space adjustment mechanism | Servo motor, synchronous belt drive |
| Appearance | Comply with the national GB/T2611 standard |
| protection function | Overload protection, limit protection |
| Power | 220V |
| Weight | 500kg |
| Operating Environment | Room Temperature -35 ℃, Humidity 20%~ 80% |
| Fixture configuration | According to customer requirements, configure suitable fixtures. Special fixtures can be customized according to customers |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
