YINUO YN-RCT-B Ring pressure center plate

YINUO YN-RCT-B ring pressure center plate is the paper test ring pressure strength need to use the sample reprint plate, is a ring pressure measurement must have an auxiliary, YN-RCT-B ring pressure center plate clamping length 152 * 127mm, clamping thickness range (0.1~ 1.0) mm, clamping thickness deviation ≤ 0.01mm.
Model：
Certificate
Contact
Details SPEC

YiNuo YN-RCT-B Ring pressure center plateSPEC

YiNuo YN-RCT-B Ring pressure center plateDetails

YiNuo YN-RCT-B Ring pressure center platePacking list

SKU
NB033128
clamping length
152*127mm
Clamp thickness range
(0.1~1.0)mm
Clamping thickness deviation
≤0.01mm
Number of center disks
One master plate and thirteen sub plates.
YN-RCT-B
Ring pressure center plate

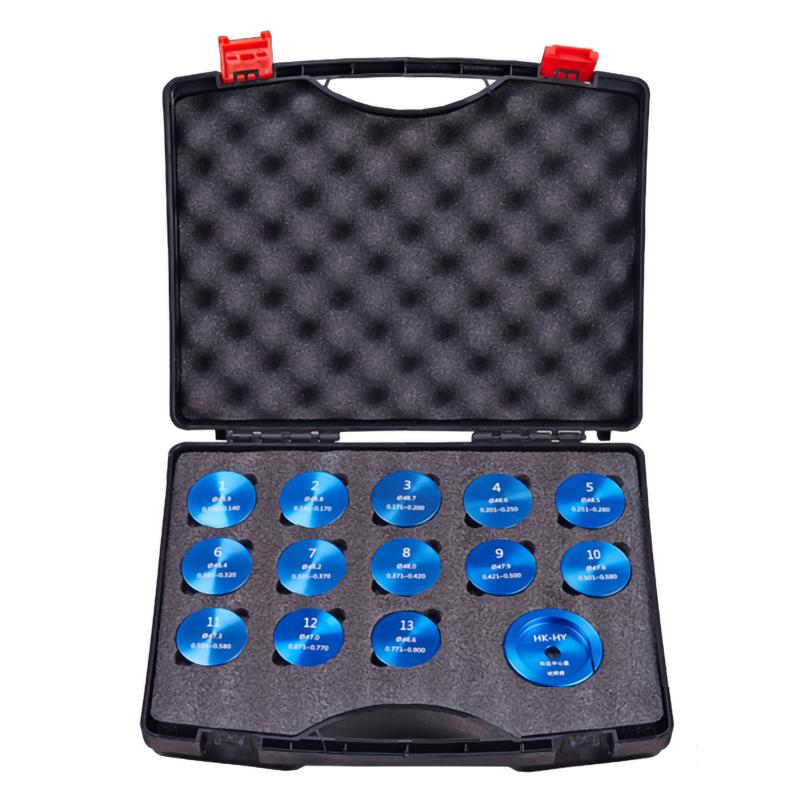

YINUO YN-RCT-B Ring pressure center plate Picture

use

The special center test disc of paper ring pressure Tester is also called the special center disc of ring pressure, which is the sample transfer disc that is needed to test the ring pressure strength of paper, and is an accessory that must be used for ring pressure determination, and the size of the special center disc of paper ring pressure is completed by 13 kinds of loading sizes of 0.1~1mm, which is composed of 13 loading sub-plates and 1 master plate, and the loading sample is a 152*12.7mm size ring pressure sample for testing, which is a special testing accessory selected by papermaking and scientific research institutions.

Enforce the standard

GB/T 2679.8 、GB/T 6546、GB/T 6548、GB/T 2679.6

Technical parameters

1. Equipped with ring pressure center plate and ring pressure sampler for ring pressure test (RCT)

2. Equipped with edge pressure sampler/guide block to carry out corrugated cardboard edge pressure test (ECT)

3. Equipped with a peel test frame for corrugated cardboard bonding peel test (PAT)

4. Equipped with a flat pressure sampler to carry out corrugated paper flat pressure test (FCT)

5. Flat compressive strength (CCT) and (CMT) after flugating in the base paper laboratory

Size Chart:

0.150～0.170

0.171～0.200

0.201～0.230

0.231～0.280

0.281～0.320

0.321～0.370

0.371～0.420

0.421～0.490

0.491～0.570

0.571～0.670

0.671～0.770

0.771～0.900

0.901～1.000

Scope of application

Paper and bobbin paper loop pressure determination
