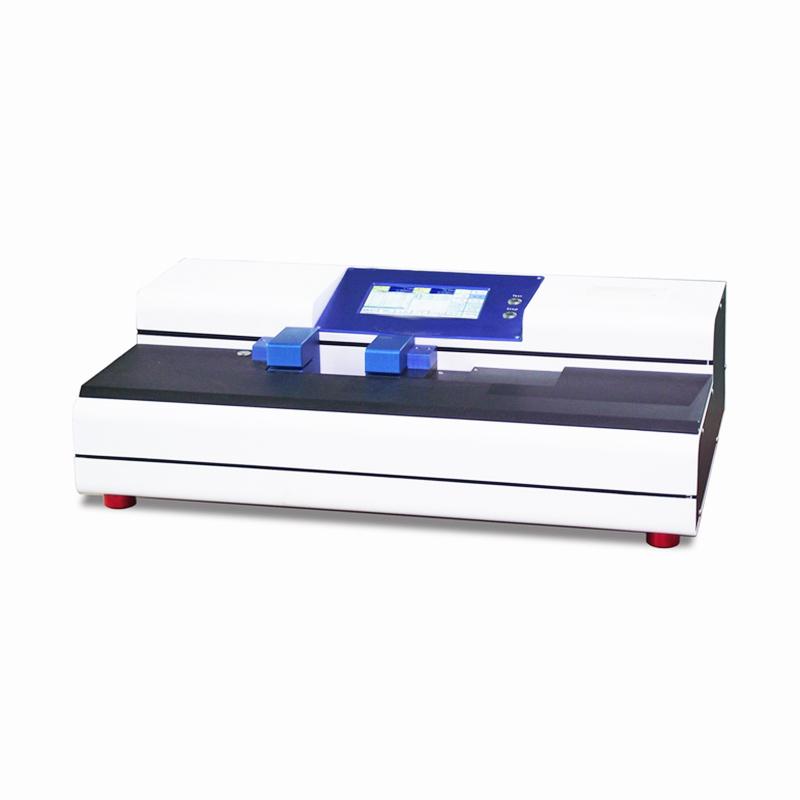

YINUO YN-WKZY50 horizontal Tensile strength Tester

YINUO YN-WKZY50 horizontal Tensile strength Tester is used to detect the tensile stress of the paper, the elongation of the paper, the fracture length of the paper, the tensile energy absorption, tensile index, tensile energy absorption index, etc., YN-WKZY50 horizontal Tensile strength Tester force accuracy indication +/- 0.1% (20~100% FS), Precision ≤ +/- 0.5%, deformation resolution ≤ 0.1mm.
Model：
Certificate
Contact
Details SPEC

YiNuo YN-WKZY50 Horizontal Tensile strength TesterSPEC

YiNuo YN-WKZY50 Horizontal Tensile strength TesterDetails

YiNuo YN-WKZY50 Horizontal Tensile strength TesterPacking list

SKU
NB033131
power resolution
1/100000
Data analysis sampling
Sampling Frequency 400 times/second
Force Precision
±0.1%(20~100％FS)
Force Precision
≤±0.5%
Displacement resolution
≤0.1mm
Sample holding method
Pneumatic automatic clamping
clamping pressure
0.2 - 0.7Mpa (adjustable)
Specimen size
1-25mm
Force range
0.4~100%FS
Measurement range of elongation
45~260mm
Test speed Accuracy
（1~10）mm/min：±0.1mm/min
Clip spacing positioning error
±0.2mm
Moving chuck reset error
±0.1mm
clip spacing
The test length is arbitrarily selected within the range of (1 to 250) mm.
stretching speed
1~ 500mm/min stepless speed change
return speed
100mm/min
Force range
3~ 30N (for household paper), 6~ 500N for cultural paper, Encasement paper, special paper, paper-based composites, etc
Sensing system protection
Rapid sensor protection device PROTEC SYSTEM
Wet stretch configuration
Configure wet tensile strength pool (optional)
Transmission screw
Adopting Taiwan, China single-column structure precision ball screw
Human Machine Interface
7.0In touch screen operation platform, detection status with Linear dispersion diagram display
software program
You can link the computer for computer control test, print the report and output it by computer.
printout
modular integrated thermal printer
Dimensions
650*500*400mm
Weight
About 40kg
YN-WKZY50
Horizontal Tensile strength Tester
YINUO YN-WKZY50 horizontal Tensile strength Tester Picture

Instrument Usage

YN-WKZY50 horizontal Tensile Strength Tester is used to detect the tensile stress, elongation of paper, crack length of paper, tensile energy absorption, tensile index, tensile energy absorption index and so on.

Operating Principle

The principle of paper horizontal tensile test: the Tensile Strength Tester stretches the specimen of the specified size to fracture under constant speed tensile, determines its tensile strength, and records the ultimate tensile strength, fracture length and tensile index at break.

Enforce the standard

GB/T453 、GB/T 12914、ISO 1924.2

Technical characteristics

Microcomputer control technology, fully automatic pneumatic clamping of the sample, simple and convenient operation, one-key to complete the test;

It adopts 7.0in large-screen color touch LCD display, Chinese menu, real-time display of various data and stretch curves.

Imported stepper motor control, the use of subdivision technology, accurate instrument positioning, fast speed response, save test time, improve test efficiency;

Using high-speed ARM processor, high degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable;

24-bit high-precision AD converter (resolution up to 1/10,000,000) is used to ensure the speed and accuracy of instrument force data acquisition;

Built-in air circulation and heat dissipation device to improve equipment failure for long-term operation;

It can be equipped with computer software to facilitate data analysis management, saving, printing and other functions;

FAQ
QDo you have the horizontal Tensile strength tester required by the QB/T2693 standard?
A This YN-WKZY50 horizontal Tensile strength tester will do.
