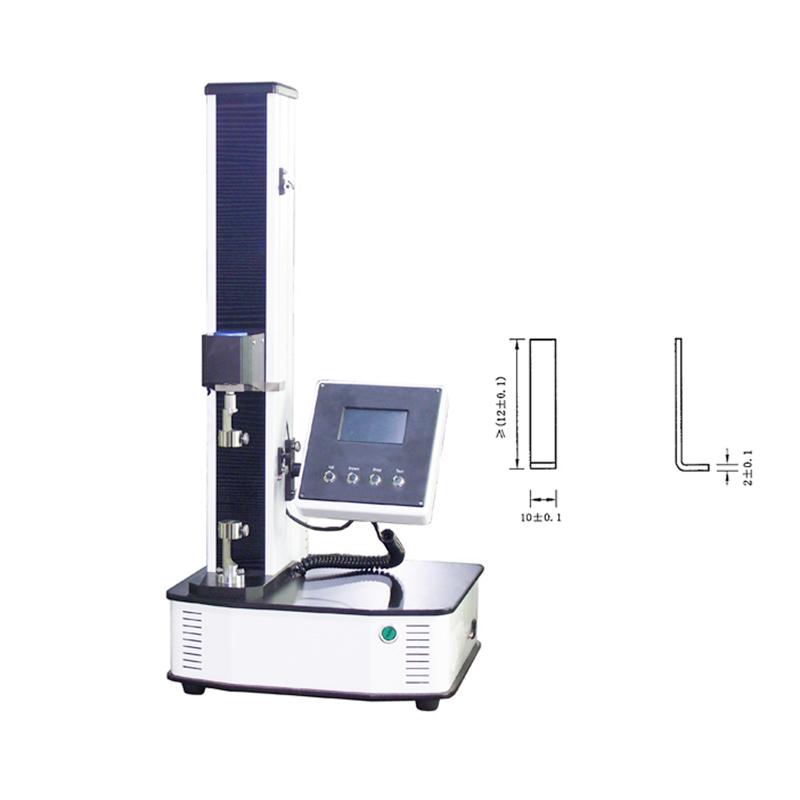

YINUO YN-KZY300 Microcomputer Vertical Tensile strength Tester
YN-KZY300
YiNuo YN-KZY300 Microcomputer vertical Tensile strength TesterSPEC
YiNuo YN-KZY300 Microcomputer vertical Tensile strength TesterDetails
YiNuo YN-KZY300 Microcomputer vertical Tensile strength TesterPacking list
- SKU
- NB033132
- Force range
- 6~ 30N is suitable for household paper, 6~ 300N is suitable for ordinary paper such as Encasement cultural paper, and 10~500N is suitable for all ordinary paper and high-strength paper
- Accuracy grade
- Level 1
- Force range
- 0.4~100%FS
- Force Precision
- ±0.3%
- Indication variability
- ≤0.3%
- Measurement range of elongation
- (0~400) mm (under 100mm test length)
- Test speed Accuracy
- (5~100)mm/min±0.2mm/min.
- Clip spacing positioning error
- ±0.2mm
- Moving chuck reset error
- ±0.05mm
- Force resolution
- 0.01N
- Force unit
- N, g, kg, Lb, kpa and other units
- Displacement resolution
- ≤0.1mm
- Fixture width
- 25 (Miscellaneous size can be customized)
- clip spacing
- The test length is (1~ 400) [can be customized]
- stretching speed
- 1~ 500mm/min stepless speed regulation
- return speed
- 150mm/min stepless speed change [ (1~ 550) mm/min adjustable]
- Transmission screw
- Adopting Taiwan, China single-column structure precision ball screw
- Shell material
- Made of aluminum alloy
- motor
- Stepping motor, 0~500mm/min stepless speed change
- Human Machine Interface
- 5.0In touch screen control
- printout
- Built-in modular integrated thermal printer
- Communication interface
- Built-in R232 interface, optional connection to computer
- Size/Weight
- 550*550*1100mm、About75kg
- Power Supply
- 220v、50Hz
- Error of indication
- ≤ 0.3%
Instrument Usage
YN-KZY300 microcomputer Tensile Strength Tester according to the national standard GB/T12914 and ISO1924-2 method to determine the tensile strength and tensile index of various paper and cardboard materials, the two-way test method can be used for tensile and compression test, is a small range, high precision tensile Strength Tester, professional for testing the tensile strength, elongation, crack length, tensile energy absorption, tensile index, tensile energy, absorption index, etc., suitable for paper mills, scientific research institutes and quality inspection departments.
Operating Principle
The test principle of the paper vertical Tensile Strength Tester is that under constant speed tensile, the specimen of the specified size is stretched to fracture, its tensile resistance is determined, and the ultimate tensile strength, length at break and tensile index are recorded.
Enforce the standard
GB/T 12914、GB/T453 、ISO1924-2、GB 8808、GB/T 1040、GB/T 17200、GB/T 16578.1、ASTM D882
Technical characteristics
The level 1 test accuracy effectively ensures the accuracy of the test results;
7.0in touch screen curve display, free switching between Chinese and English, real-time display of various data and stretch curves.
Built-in limit protection, overload protection, automatic return and other intelligent designs to ensure safe operation
Imported stepper motor control, the use of subdivision technology, accurate positioning of the instrument, fast speed response, improve the test efficiency;
Using high-speed ARM processor, high degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable;
24-bit high-precision AD converter (resolution up to 1/10,000,000) is used to ensure the speed and accuracy of instrument force data acquisition;
Built-in R232 interface, optional connection to computer software, convenient data analysis management, saving, printing and other functions;
The system has rich testing functions, equipped with more than 50 different specimen grips for users to choose, which can meet the testing requirements of more than 1,000 materials;
Product configuration
| Standard configuration | Main machine, 25mm fixture, standard paper cutter, power cord, manual, certificate, warranty card |
| Options | Special tensile sampler, professional software, communication cable |
Scope of application
| Basic application | Test materials | Uses |
| Paper | It is suitable for the determination of tensile strength of base paper, cardboard, kraft paper, whiteboard paper and cardboard | |
| Mica paper | It is suitable for the determination of tensile strength of mica paper, non-fabric and other materials | |
| paper | It is suitable for the determination of tensile strength of articles and new materials | |
| Insulating paper | Determination of tensile strength of electrical cardboard and electrically insulating cardboard | |
| Fiber paper | Tensile strength measurement of capacitor paper, cable paper, high-temperature fiber paper, etc | |
| Filter | Determination of tensile strength of qualitative filter paper, quantitative filter paper, etc | |
| other | Determination of tensile strength of other industrial paper, graphene, and composite fiber materials |
