YINUO YN-TDQ stiffness Sampler

YINUO YN-TDQ stiffness special Sampler for 38mm * 70mm paper bending stiffness test and 38mm * 36mm crease stiffness test sample special Sampler, YN-TDQ stiffness special Sampler two long side parallelism ≤ 0.015mm, sampling thickness (0.1~ 1.5) mm.
Model：
Certificate
Contact
Details SPEC

YiNuo YN-TDQ Stiffness SamplerSPEC

YiNuo YN-TDQ Stiffness SamplerDetails

YiNuo YN-TDQ Stiffness SamplerPacking list

SKU
NB033133
Sampling size
Stiffness specimen (70x38) mm/Crease stiffness specimen (38x36) mm
Parallelism of two long sides
≤0.015mm
Sampling thickness range
0.1~1.5mm
Dimensions
300*90*90mm
Weight
13kg
YN-TDQ
Stiffness Sampler

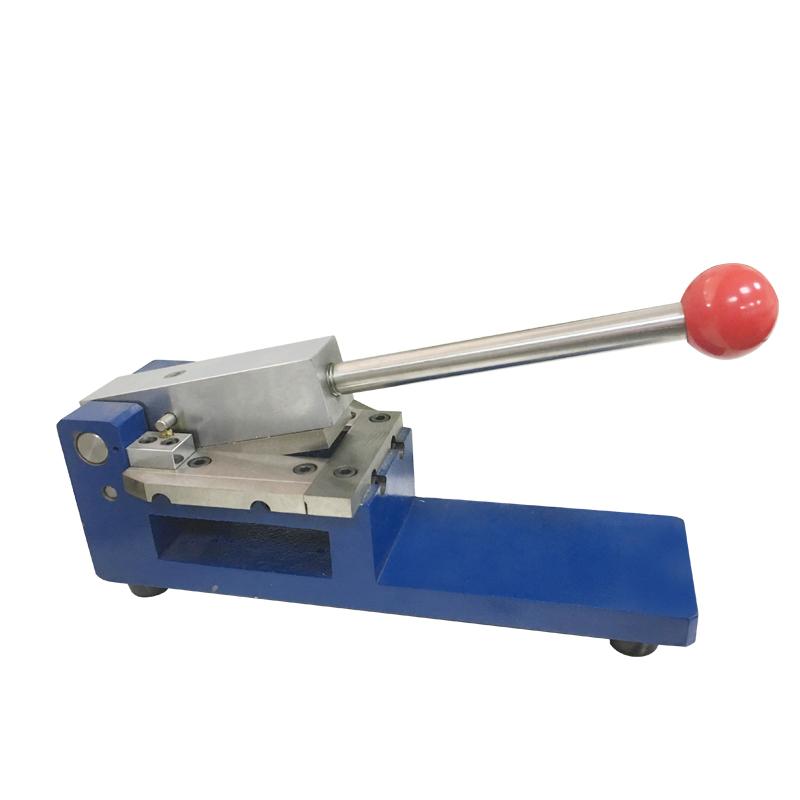

YINUO YN-TDQ stiffness Sampler Picture

Instrument Usage

YN-TDQ Stiffness Sampler is used for testing specimens during 38mm*70mm paper bending stiffness test and 38mm*36mm crease stiffness test, the specimen and guide need to be accurately parallel to ensure the stability and repeatability of the paper ring compressive strength test results.

Enforce the standard

GB/T 22364 、GB/T 2679·3 、ISO 2493、ISO 5628

Operating Principle

Specimens are accurately sampled during stiffness testing

Scope of application

Basic applicationTest materialsUses
Stiffness value testIt is suitable for specimen sampling during bending stiffness testing of paper, cardboard, film, plastic film and thin sheet
Crease stiffness testIt is suitable for sample sampling during crease indentation stiffness testing of various color boxes, toothpaste boxes and other packaging boxes
1mm torque testIt is suitable for specimen sampling during various banknote bending stiffness tests
Paper cardboardIt is suitable for specimen sampling during various paperboard bending stiffness tests
Film sheetsIt is suitable for sample sampling of various graphite sheets, optical diaphragms, and composite sheet materials during stiffness testing
wire rodIt is suitable for sample sampling during the stiffness test of various wires, power cords and metal cables

Technical characteristics

Stamping sampling method, accurate, convenient and fast;

The quenched knife has a more wear-resistant edge and a wide range of applications;

Stainless steel bearings, easy to operate, more convenient and faster to use;

It is easy to assemble, the sampling error is small, only ±0.2mm, and the test deviation can be ignored;

The mold blade is specially treated, which is not man-made, and the blade can be used for 10 years without replacing the blade.
