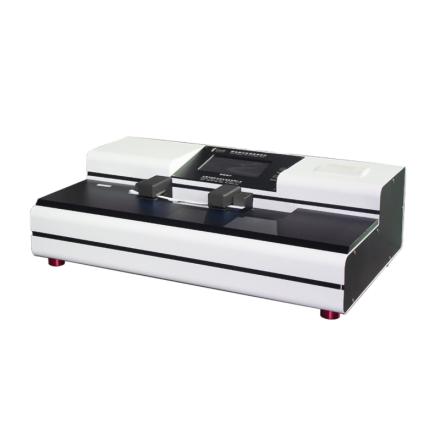

Specifications
| Force range | 3~ 30N (for household paper), 6~ 500N for cultural paper, Encasement paper, special paper, paper-based composite, etc |
| Power resolution | 1/100000 |
| Data analytics sampling | Sampling frequency 400 times/sec |
| Force range | +/- 0.1% of indication (20~100% FS) |
| Force value Accuracy | ±0.1% |
| Indication of variability | ≤0.3% |
| Elongation Measurement Range | (1~ 260) mm (under 100mm test length) |
| Clamp spacing positioning error | ±0.1mm |
| Moving collet reset error | ±0.05mm |
| Force resolution | 0.01N |
| Force unit | N, g, kg, Lb, kpa and other units |
| Displacement resolution | ≤0.1mm |
| Fixture width | 25mm |
| clip spacing | Test length in (1~ 250) |
| Test speed Accuracy | （1～10）mm/min：±0.1mm/min |
| stretching speed | 1~ 500mm/min stepless speed regulation |
| return speed | 100mm/min stepless speed change [ (1~ 550) mm/min adjustable] |
| Sensing System Protection | Rapid sensor protection device PROTEC SYSTEM |
| Sample holding method | Pneumatic automatic clamping |
| clamping pressure | 0.2 - 0.7Mpa (adjustable) |
| Human Machine Interface | 7.0In touch screen control with Linear dispersion analysis chart |
| printout | Built-in modular integrated thermal printer |
| Communication interface | Built-in R232 interface, connected to a computer (optional) |
| Size/Weight | 650*500*400mm、About40kg |
| Power | 220v、50Hz |
| Error of indication | ≤ 0.3% |
Packing list
host X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 540 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/33135/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
