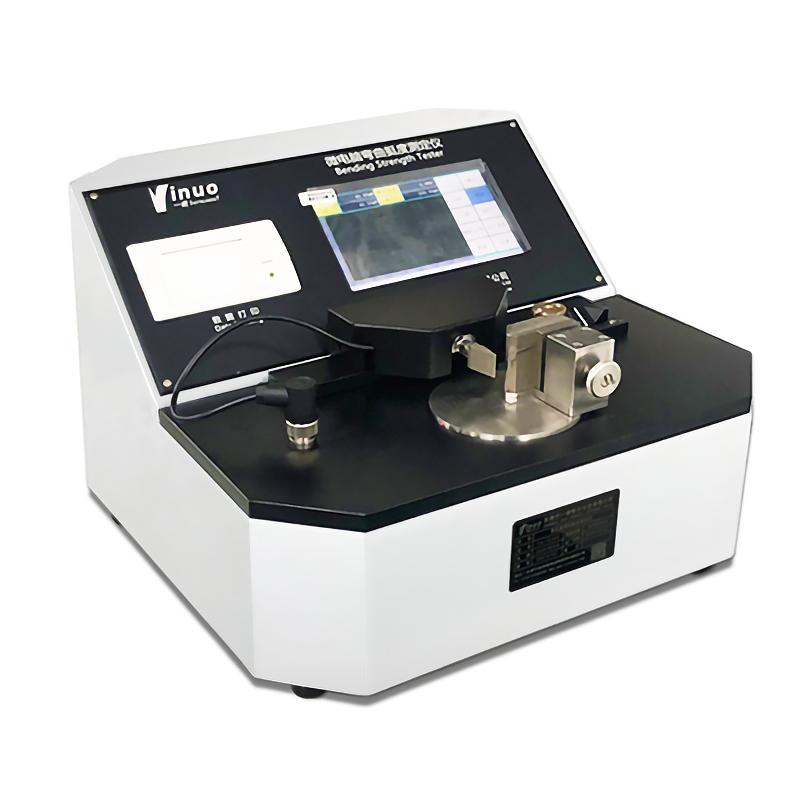

YINUO YN-TDY01 Microcomputer Bending Stiffness Tester ≤ 500mN · m

YN-TDY01

Microcomputer Bending Stiffness Tester

It is used to measure the flexural stiffness of paper Cardboard materials. It is used to evaluate the stiffness and resilience of flexibility materials. The vertical and horizontal directions, tension size, test speed and bending angle of the sample can be set according to the test requirements. Mainly used for the measurement of the stiffness test of various paper, Cardboard, film, plastic, metal sheet and other composite sheet materials

Instrument use

YN-TDY01 Microcomputer Bending Stiffness Tester is used to measure the bending stiffness of paper and cardboard materials. It is used to evaluate the stiffness and resilience of flexible materials. The vertical and horizontal dimensions of the sample, the tension, and the test can be set according to the test requirements. speed and bending angle. It is mainly used to measure the stiffness of various paper, cardboard, film, plastic, metal foil and other composite sheet materials. It is suitable for papermaking, packaging and printing industries, as well as related scientific research institutions and quality inspection departments.

Principle

The Principle of the stiffness Tester: under the specified conditions, measure the force or moment required when one end of the clamped sample is bent to an angle of 15 degrees, expressed in mN, if the sample stiffness is too large or the sample is broken when it is bent to an angle of 15 degrees , you can bend the sample to adjust to an angle of 7.5 degrees, and multiply the measurement result by 2 to get an approximate value, but it should be noted in the report.

Executive standard

GB/T 22364, GB/T 2679·3, ISO 2493, ISO 5628

technical features

1. 7in touch screen with curve display, free switching between Chinese and English;

2. The test angle is adjustable: (1-92) degrees can be set arbitrarily;

3. The test time can be set at any number between (2～50)s;

4. With the function of automatic zero adjustment, there is no need to manually check the sample before the test;

5. After the test is completed, return to the initial position at high speed, and the return speed can be set arbitrarily between (1~12);

6. The change of test angle is automatically controlled by the motor, which improves the measurement efficiency and reduces the human influence;

7. Automatic reset after the test is completed, and the force value and angle value are automatically cleared during the test to improve the accuracy of the test results;

8. It has functions such as measurement statistics and printing, which is convenient for users to perform test operations and data viewing;

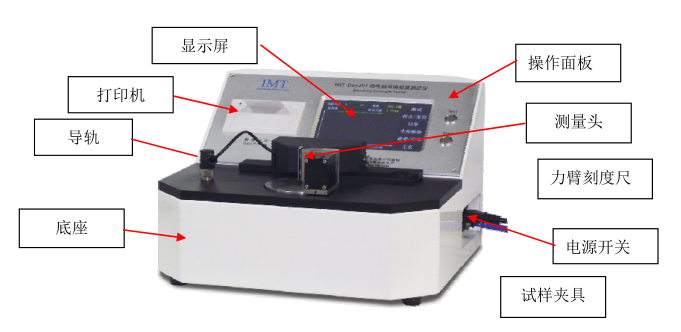

product configuration

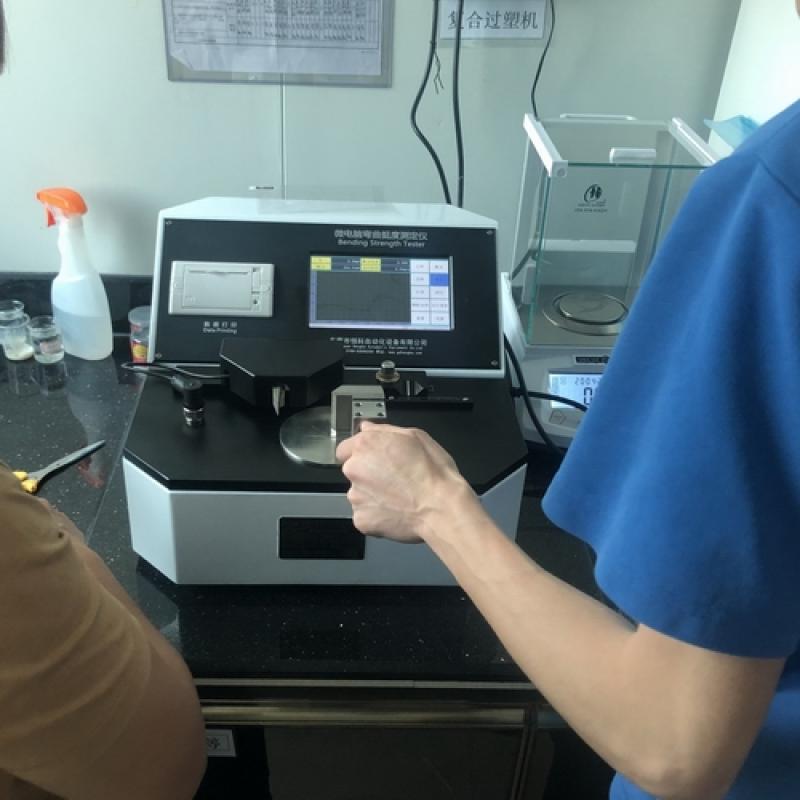

Application

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
