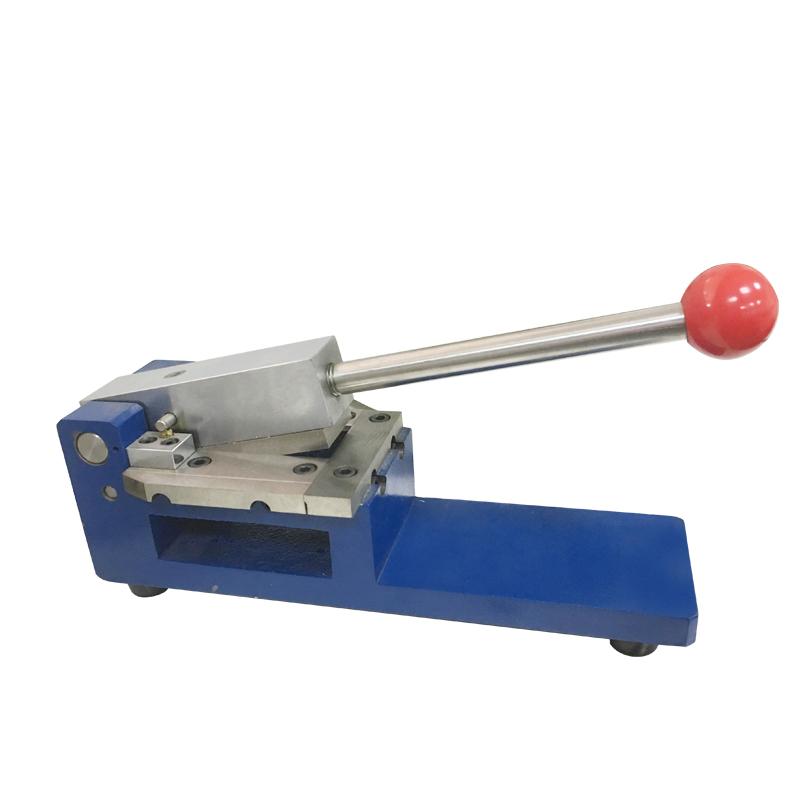

YINUO YN-TDY02 stiffness Sampler stiffness 38 * 70mm crease stiffness 36 * 38mm

SE
YINUO YN-TDY02 stiffness Sampler is used for 38mm * 70mm paper bending stiffness test and 38mm * 36mm crease stiffness test. The parallelism of the two long sides of the YN-TDY02 stiffness Sampler is less than or equal to 0.015mm, and the sampling thickness is (0.1~ 1.5) mm.
$630.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

YiNuo YN-TDY02 Stiffness SamplerSPEC

YiNuo YN-TDY02 Stiffness SamplerDetails

YiNuo YN-TDY02 Stiffness SamplerPacking list

SKU
NB033137
Stiffness sampling size
70*38mm
Parallelism of two long sides
≤0.015mm
Film thickness sampling range
(0.1~1.5)mm
Dimensions
300×90×90mm
Weight
13kg
Crease stiffness sampling size
38*36mm
YN-TDY02
Stiffness Sampler
YINUO YN-TDY02 stiffness Sampler stiffness 38 * 70mm crease stiffness 36 * 38mm Picture

Instrument use

YN-TDY02 Stiffness Special Sampler is used for 38mm*70mm paper bending stiffness test and 38mm*36mm crease stiffness test. The sampler and the guide must be accurately parallel to ensure the paper ring compression strength. Stability and repeatability of test results.

Executive standard

GB/T 22364, GB/T 2679·3, ISO 2493, ISO 5628

Principle

Accurate sampling of samples for stiffness testing

Application

basic applicationtest materialuse
Stiffness value testIt is suitable for sample sampling in the bending stiffness test of paper, cardboard, film, plastic film and sheet
Crease Stiffness TestIt is suitable for sample sampling during the crease indentation stiffness test of various color boxes, toothpaste boxes and other packaging boxes
1mm torque testIt is suitable for sample sampling during the bending stiffness test of various banknotes
paper cardboardIt is suitable for sample sampling in the bending stiffness test of various paper and cardboard
film sheetIt is suitable for sample sampling when testing the stiffness of various graphite sheets, optical films, and composite sheet materials.
wireIt is suitable for sample sampling when testing the stiffness of various wires, power cords, and metal cables

technical features

Stamping sampling method, accurate and convenient;

Quenched tool, the blade is more wear-resistant and has a wide range of applications;

Stainless steel bearings, easy to operate, more convenient and fast to use;

Easy assembly, small sampling error, only ±0.2mm, test deviation can be ignored;

The mold blade is specially treated, and it is not damaged by human beings. Used for 10 years without replacing the blade.

FAQ
QWhat is the error of the stiffness Sampler?
A Hello, the error is +/- 0.2mm.
