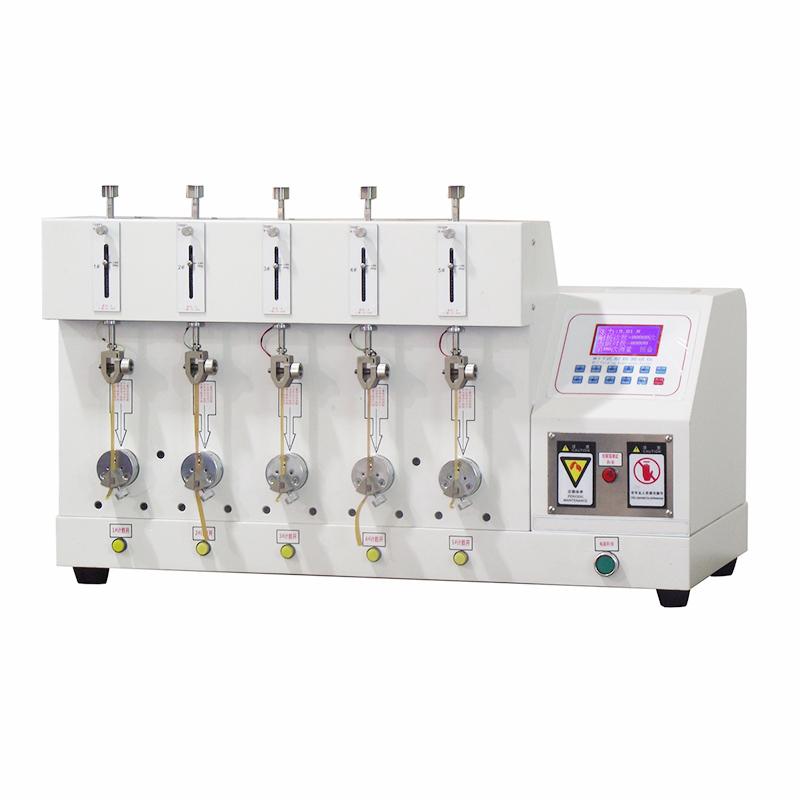

YINUO YN-MIT135-S Folding Tester
YN-MIT135-S
-
JINGWEN JW107C MIT Paper Folding Endurance Tester$ 1446.00SE -
CHINA NBC-5637 MIT Paper Folding Endurance Tester$ 1330.00SE -
CHINA ZY-NZ1 folding resistance instrument$ 1594.00SE -
CHINA ZY-NZ-1 Folding Tester Cardboard Folding Tester$ 1563.00SE -
Essence Instrument LD-NZ-01 MIT Flexural Strength Tester$ 1359.00SE
YiNuo YN-MIT135-S Folding TesterSPEC
YiNuo YN-MIT135-S Folding TesterDetails
YiNuo YN-MIT135-S Folding TesterPacking list
- SKU
- NB033138
- Measurement range
- 0~99999 times [Logarithmic 0~ lg4]
- number of test groups
- 5 groups of tests can be determined at the same time, and a single group of tests can also be done
- folding angle
- 135°（15~180°）±1°
- folding speed
- 175 +/- 5 times/min
- Spring tension
- 4.91N/9.82N/14.73N three-point tension setting
- Standard upper chuck
- Spiral locking fixture with specimen parallel position
- Upper clamping thickness range
- （0.1~2.30）mm
- Upper clamping width range
- （0.1~16.0）mm
- Upper Clamping Force area
- 7.8*6.60mm/51.48mm2
- Upper clamping torque
- 19.95:5.76—Wid 9.85mm
- Parallel positioning height of specimen
- 16.0mm
- lower folding chuck
- The tension change caused by swirl/spin eccentricity is not more than 0.343N
- The width of the lower folding head is
- 19±0.1mm
- Lower clamping torque
- 11.9:4.18~Wid 6.71mm
- crease radius
- 0.38±0.01mm
- Reproducibility
- 10%(when 30T), 8%(when 3000T)
- Specimen length
- ≥140mm
- Upper and lower chuck distance
- 9.5mm
- Folding mouth seam distance
- 3 mm
- Human Machine Interface
- 3.2In LCD display, real-time display of test data
- Ventilating system
- Self-priming cooling system, suitable for fatigue testing
- printout
- modular integrated thermal printer
- Size Weight
- 330*350*1150mm
- Weight
- 85kg
Instrument Usage
YN-MIT135-S Microcomputer Flexural Strength Tester can also be tested in a single group or in combination, mainly used to detect the folding fatigue strength of paper, fiber fabrics, metal sheets, plastic films and fiber composite materials, and is suitable for paper packaging and printing industry, communication equipment wire manufacturing industry and related industries, scientific research institutions and quality inspection departments.
Operating Principle
The working principle of the material folding resistance Tester refers to the number of double folds that paper or cardboard can withstand reciprocating 135 degrees under a certain tension, and the number of double folds in the past or the number of double folds at the base of 10 is expressed as a numerical value, and the number of times used to record the breaking is the folding resistance.
Enforce the standard
GB/T457 、QB/T2679.5、ISO 5626
Technical characteristics
The instrument is equipped with a variety of folding heads and weights, which can also be customized on demand;
At the same time, 5 groups of tests can be measured, and single groups of tests can also be done;
Save the initial settings when the power is off, and automatically reset after the test is completed;
Panic button, you can control the process at any time in case of emergency;
Fully automatic measurement, intelligent judgment function, automatic shutdown of breakpoint to save data,
Independent suction ventilation and heat dissipation system, suitable for long-term fatigue test of internal heat;
It can be connected to a computer to automatically draw a real-time test data curve (optional);
Product configuration
| Standard configuration | Main machine, 20 (4*5 groups) fixtures, thermal printing paper, power cord, manual, certificate, warranty card |
| Options | Professional software, communication cables, etc |
Practice:
| Basic application | Test materials | Uses |
| Paper | It is suitable for flexural strength testing of paper and other materials such as base paper, printing paper, bobbin paper, etc | |
| Corrugated cardboard | It is suitable for flexural strength testing of corrugated boxes, containerboard, corrugated cardboard and other materials | |
| Aluminum foil, copper foil | It is suitable for flexural strength testing of copper foil, aluminum foil and other materials of a certain thickness | |
| Fibrous material | It is suitable for flexural strength testing of glass fiber, carbon fiber and other materials | |
| membrane | Flexural strength testing of optical films, composite films, superconducting films, and insulating separator materials | |
| Flexible circuit boards | Flexural strength test of various FPC boards and circuit boards | |
| Other materials | It is suitable for flexural strength testing of non-woven fabrics, fabrics, leather, and conductive materials |
