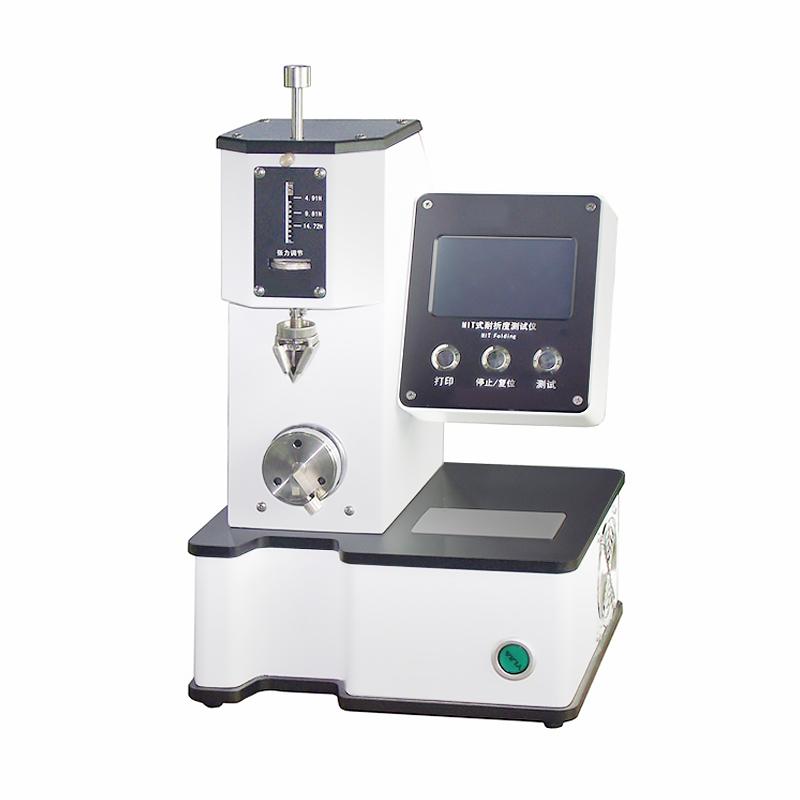

YINUO YN-MIT135 MIT type folding resistance Tester 135 °/15mm * ≥ 140mm: 1~ 99999 times

YINUO YN-MIT135MIT type folding resistance Tester is used to measure the folding performance test of paper fiber materials. The instrument is single folding head MIT type, YN-MIT135MIT type folding resistance Tester measurement range 0~99999 times [logarithm 0~ lg4], folding angle 135 ° (15~ 18 0 °） +/- 1 ° adjustable, folding speed 175 +/- 5 times/min (2~ 200 times/min adjustable).

$2418.00/set

PromotionLoading...

Coupon

Model：

YN-MIT135

Certificate

YiNuo

Contact

Details SPEC Con

YiNuo YN-MIT135 MIT type folding resistance TesterSPEC

YiNuo YN-MIT135 MIT type folding resistance TesterDetails

YiNuo YN-MIT135 MIT type folding resistance TesterPacking list

SKU: NB033139

Measurement range: 0~99999 times [Logarithmic 0~ lg4]

folding angle: 135 ° (15~ 180 °） +/- 1 ° adjustable

folding speed: 175 +/- 5 times/min (2~ 200 times/min adjustable)

spring tension: 4.91N/9.82N/14.73N (1~ 20N adjustable)

Standard upper chuck: Spiral locking fixture with specimen parallel position

Film thickness range: （0.1~2.30）mm

Upper clamping width range: （0.1~16.0）mm

Upper Clamping Force area: 7.8*6.60mm/51.48mm2

Upper Clamping Force torque: 19.95:5.76—Wid 9.85mm

Parallel positioning height of specimen: 16.0mm

Lower folding collet: Tension change not more than 0.343N

The width of the lower folding head is: 15±0.1mm（0.1~20.0mm）

Lower clamping torque: 11.9:4.18~Wid 6.71mm

Folding radius: 0.38±0.01mm

reproducibility: 10%(when 30T), 8%(when 3000T)

Specimen length: ≥140mm

Upper and lower collet distance: 9.5mm

Folding mouth gap distance: 0.25mm/0.5mm/0.75mm/1.00mm

Human Machine Interface: 5.0Inch color touch screen/Chinese and English dual system

Ventilating system: Self-priming cooling system, suitable for fatigue testing

printout: Modular integrated thermal printer

Size Weight: 300*300*450mm

Weight: 30kg

YN-MIT135

MIT type folding resistance Tester

Instrument use

YN-MIT135 Microcomputer Folding Strength Tester is used to test the folding resistance of paper fiber materials. The instrument is a single-folding head MIT type. The vertical and horizontal directions, tension, test speed and folding times of the sample can be set according to the test requirements. It is mainly used for the folding strength test of paper, fiber fabrics, metal sheets, plastic films and composite materials. It is suitable for paper making, packaging and printing industry, communication equipment wire manufacturing industry, scientific research institutions and quality inspection departments of related industries.

Principle

The principle of paper folding endurance test: refers to the number of double folds that paper or cardboard can bear under a certain tension of 135 degrees. That is the folding endurance.

Executive standard

GB/T457, QB/T2679.5, ISO 5626

technical features

7.0in touch screen curve display, free switching between Chinese and English;

The instrument is equipped with a variety of folding heads and weights, and can also be customized on demand;

Can set horizontal and vertical, speed, angle, times, adjustable tension;

Save the initial settings when the power is off, and automatically reset after the test is completed;

The emergency button can control the process at any time in case of emergency;

Fully automatic measurement, intelligent judgment function, automatic shutdown at breakpoints to save data,

Independent suction, ventilation and heat dissipation system, suitable for long-term fatigue test internally generated heat;

Can be connected to a computer to automatically draw real-time test data curves (optional);

product configuration

Standard configuration	Host, 4 sets of test fixtures, 15mm standard sampler, thermal printing paper, power cord, manual, certificate of conformity, warranty card
Optional	Professional software, communication cables, etc.

Application

basic application	test material	use
	the paper	It is suitable for the folding strength test of base paper, printing paper, bobbin paper and other paper materials
	corrugated cardboard	It is suitable for the folding strength test of corrugated box, cardboard, corrugated cardboard and other materials
	Aluminum foil copper foil	It is suitable for the bending strength test of copper foil, aluminum foil and other materials with a certain thickness
	fiber material	Suitable for flexural strength testing of glass fiber, carbon fiber and other materials
	film	Folding strength test of optical film, composite film, superconducting film, insulating diaphragm material
	flexible circuit board	Folding strength test of various fpc boards and circuit boards
	other materials	It is suitable for the folding strength test of non-woven fabrics, cloth, leather and conductive materials

FAQ

QIf the instrument is not turned off, is that setting cumulative?

A No matter whether it is turned off or turned on, it will have this data saved and can be accumulated. As long as you don't delete or clear it, it will be there when it is turned off or turned on.

QThis can be set 10w times, then paused 1w times, and continue to test later, right?

A He is like this, if you want to test 10,000 times, set 10,000 times, if you want to set 10,000 times, then test 10,000 times, you have to wait for it to test 10,000 times, and then we change that number to 20,000 times, 20,000 times it will accumulate, accumulated before testing 10,000, it 10,000 times, it is 20,000 times. If it is 20,000 times, but I want to test 100,000 times, 20,000 times to 100,000 times, we will test 120,000 times, 120,000 times, it is more 10,000 times, it can be accumulated.

QThe sample generally needs to be 10mm longer than this distance to be clamped, right?

A Yes, reserve 10mm for the upper fixture, and reserve 10mm for the lower fixture. However, it is best to reserve 10mm up and down.

QUpper and lower chucks, is their distance 20mm? Changing the weight mass will change the distance between the upper and lower chucks?

A If the sample is very short, it will change. The distance without weight is about 80mm, the distance between 4.9N is 70mm, and the distance between 9.8N is about 60. If both are placed, it is about 50mm.

QThe sample is very thin, 0.01 mm. Can the clamp hold it?

A Sure.

QIs this tension range a weight adjustment?

A Put the weight, now it is matched with 4.9 and 9.8N weights, you can also make any weight of 1~ 20N by yourself and put it on.

QCan the spacing be adjusted, and how short can it be? The sample is only 5-10cm in length?

A The shortest sample above 3cm can be tested

QCan Yinuo MIT type folding resistance tester measure aluminum foil?

A Film thickness can be measured.

QIs there a QB/T2693 standard MIT-style refractive tester?

A This YINUO MIT type folding resistance tester is fine!
