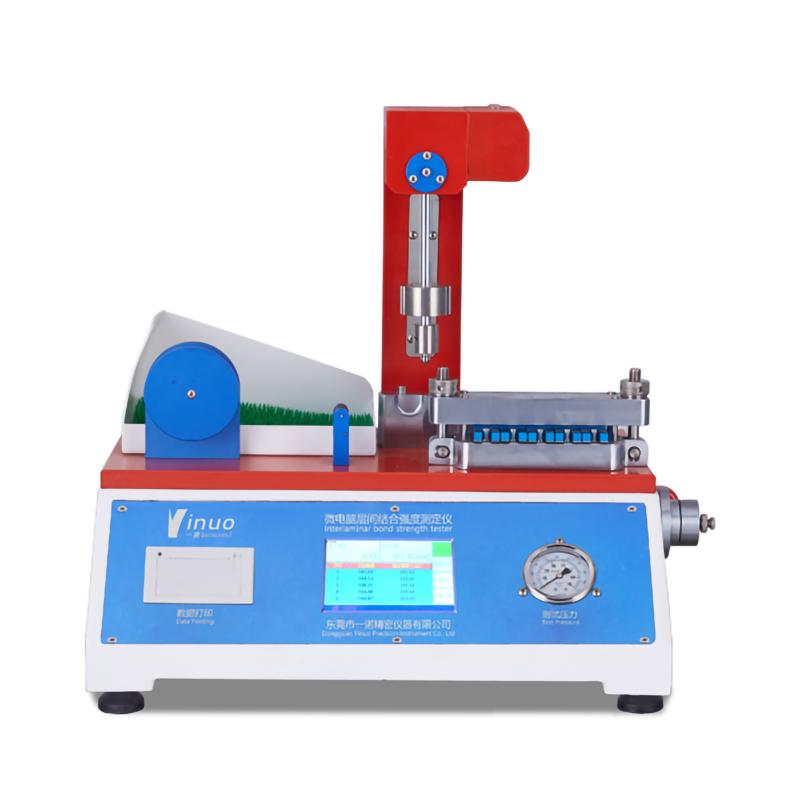

YINUO YN-IBTF Microcomputer Interlayer bonding strength Tester
YN-IBTF
YiNuo YN-IBTF Interlaminar Peel TesterSPEC
YiNuo YN-IBTF Interlaminar Peel TesterDetails
YiNuo YN-IBTF Interlaminar Peel TesterPacking list
- SKU
- NB033146
- Specimen size
- 25.4*25.4mm
- Specimen size
- 25.4*128mm
- test thickness
- （0.1~5）mm
- Impact Angle
- 90°
- release method
- Fully automatic release
- Measurement range
- A档：(0~500)J/m²；B档：(500~1000)J/m²
- Error of indication
- A档：±1J/m²；B档：±2J/m²
- Instrument Accuracy
- 0.01J/M2
- unit
- J/M²、lbf/in²
- Resolution
- 0.001Lbf/in ², 8000 pulse high-precision encoder
- Common sample pressure
- (690±21)kpa (1034±34)kpa
- Sample holding force
- 0~400N (adjustable)
- Sample pressure range
- 0~65kg/cm²（0~950psi）
- Primary pressure area
- 12.72cm²
- Parallel positioning of specimen holder
- R=0.4×10
- Pressure arm ratio
- 231.08：0.8
- Double-sided adhesive force
- >486N/m
- Display
- 7.0In Touch Screen Control system
- printout
- modular integrated thermal printer
- Dimensions
- 500*400*650mm
- Weight
- 70kg
- number of samples
- Group of 5
Instrument Usage
The YN-IBTF microcomputer interlayer adhesion strength Tester determines the internal adhesion strength of various paper and cardboard materials according to TAPPI T569 and ISO 16260 methods. The instrument design is based on a falling pendulum that creates a high-velocity impact on the paper sample, sandwiching it between two substrates of double-coated tape. Pendulum impact measures the total amount of energy required to split the internal fibers of the sample into two layers in the Z-shaped direction. It is used to test the interlayer peel strength test of industrial paper such as electrical insulating cardboard, bobbin paper, gray cardboard, etc., and is suitable for paper mills, scientific research institutions and quality inspection departments.
Operating Principle
The working principle of the interlayer bonding Tester: the combination of double-sided tape-specimen-double-sided tape forms a sandwich structure, which is pressed between a metal anvil and an aluminum block, and hits the inner surface of the upper part of the aluminum block with a pendulum, which flips the aluminum block and destroys the specimen in the Z direction. The energy absorbed during the destruction of the specimen is calculated by determining the position of the swing, expressed in J/m2.
Enforce the standard
GB/T 25203、ASTM T569 pm-00、DIN ISO 16260、TAPPI-UM403
Technical characteristics
7.0in touch screen curve display, free switching between Chinese and English;
Hydraulic adhesive pressing, the pressure can be automatically adjusted (patented);
It has the function of statistical processing of test data;
Dedicated 5-level calibration kit (optional);
The whole machine has strong rigidity and stable structure, which avoids energy loss caused by vibration during the test;
Reliable specimen clamping and positioning, reducing the error caused by sample sampling;
Optional PC connection to automatically draw real-time test data curves (optional)
Product configuration
| Standard configuration | Double-sided tape for the host and interlayer combination Tester, thermal printing paper, power cord, manual, certificate of conformity, and warranty card |
| Optional | Dedicated samplers, specialized software, communication cables, etc. are combined between the layers |
Scope of application
| Basic application | Insulating paper | Interlayer adhesion strength test of electrical cardboard and electrically insulating cardboard |
| Bobbin paper | Test the strength of interlayer adhesion between paper tube paper, bobbin paper and kraft paper | |
| Gray cardboard | Interlayer adhesion strength test of various gray cardboard, cardboard, and composite cardboard | |
| paper jam | Test of interlayer adhesion strength of kraft cardboard, white card, and whiteboard paper | |
| Box | Interlayer adhesion strength test of color boxes, cigarette boxes, and packaging boxes | |
| Extend your application | other | Test of the interlayer adhesion strength of other industrial paper that needs to be processed |
