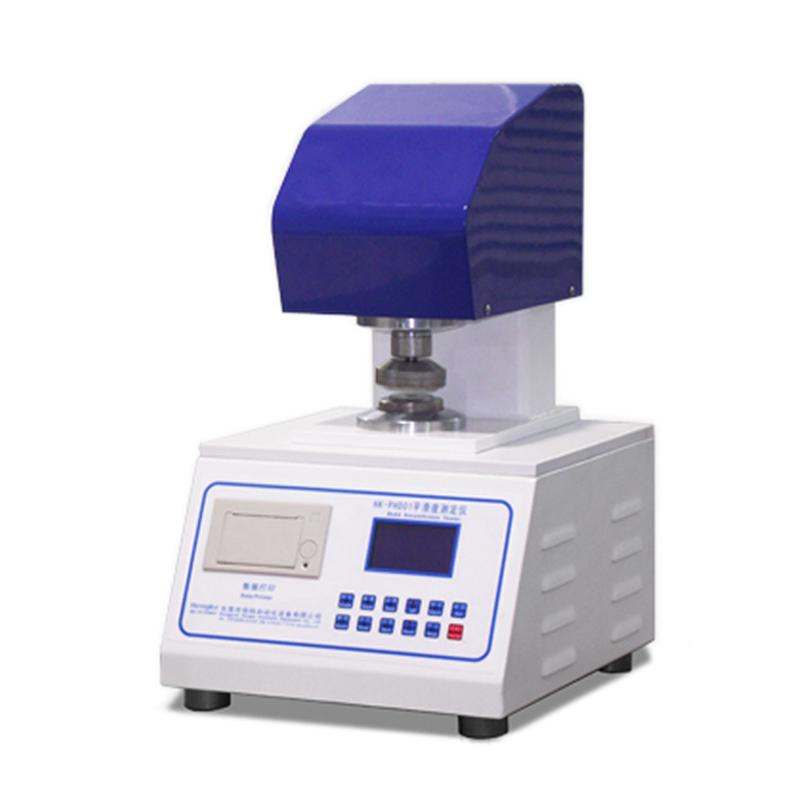

YINUO YN-PHD01 paper smoothness meter 0~9999s automatic
SE
YN-PHD01
-
Taichang Instrument TC-PHD Smoothness Meter, Buick Intelligent Tester 10 +/- 0.05cm ² Test Area$ 1835.00SE -
CHINA ZY-PH-2 smoothness Tester, Buick method mercury-free paper Tester$ 2340.00SE -
PUYUN PY-H622 paper Smoothness Tester Bekk Smoothness Tester$ 2325.00SE -
YANTE YT-ABST Smoothness Tester Automatic smart paper and Cardboard Detector$ 2440.00SE
YiNuo YN-PHD01 Paper smoothness meterSPEC
YiNuo YN-PHD01 Paper smoothness meterDetails
YiNuo YN-PHD01 Paper smoothness meterPacking list
- SKU
- NB033151
- Effective test area
- 10±0.02cm²
- Measurement range
- ≤ 15s, 15~ 300s, ≥ 300s three-speed conversion
- Vacuum range
- I rate 50.66kPa~29.33kPaII rate50.66kPa~48kPaIII rate 50.66kPa~48kPa
- Accuracy
- 0.01s
- Resolution
- 0.01s
- Large vacuum container
- 380±1ml
- Clamping and pressurizing method
- Intelligent pneumatic pressure, automatic clamping
- test pressure
- 100 ± 1kpa
- display
- 3.2In LCD display, real-time display of test data
- Comes with silent thermal printing
- Operating Environment
- Temperature (20 +/- 10 ℃), Humidity < 85%
- Dimensions
- 300*375*400mm
- Weight
- About 30kg
- Small vacuum container
- 38±1ml
Instrument use
YN-PHD01 paper smoothness Tester is an intelligent paper and cardboard smoothness performance testing instrument newly designed and developed according to the Principle of the internationally accepted Buick Bekk smoothness Tester. It uses imported vacuum mercury to draw a vacuum from the vacuum container. The required vacuum degree is reached in a very short time. The built-in three test gears of high, medium and low can quickly and accurately measure various samples, and is suitable for paper-making enterprises, packaging and printing enterprises and their related scientific research institutions and quality inspection departments.
Principle
How paper smoothness works: Place paper and cardboard on a glass plate, apply a specific pressure to create a semi-vacuum that draws in air and force it across the contact surface, and measure the time it takes for the vacuum to change within a specified range.
Executive standard
GB/T 456, QB/T1665, ISO 5627, TAPPI T479
technical features
Oil-free Vacuum Pump: The Vacuum Pump imported from Germany can work without refueling, no oil and no pollution;
The fully automatic one-button test is completed, and the required vacuum degree can be reached in a very short time, and the test is automatically reset after the test is completed;
It has the functions of testing, conversion, display, memory, printing, data processing, etc.;
Good airtightness: foreign vacuum sealant and selected sealing technology are used to make the airtightness of the instrument meet the requirements of national standards;
product configuration
Standard configuration: host, thermal printing paper, power cord, manual, certificate of conformity, warranty card
Optional : professional software, communication cable, small Air Compressor
Application
| basic application | the paper | Paper product packaging printing smoothness test |
| Paper tray | Smoothness test of paper tray packaging | |
| gray cardboard | Smoothness test of various gray cardboard, cardboard and composite cardboard | |
| paper jam | Kraft cardboard, white cardboard, white board paper smoothness test | |
| packing box | Color box, cigarette box, packing box smoothness test | |
| extended application | other | Other industrial paper smoothness tests that require processing operations |
