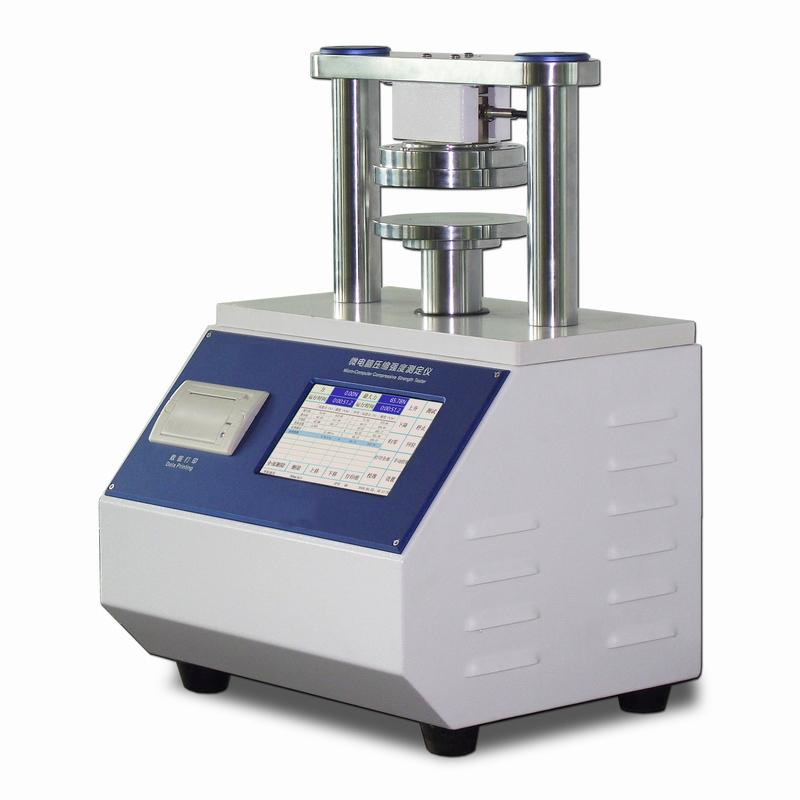

YINUO YN-YSC3000 Microcomputer Compressive Strength Tester
YN-YSC3000
YiNuo YN-YSC3000 Microcomputer compressive strength TesterSPEC
YiNuo YN-YSC3000 Microcomputer compressive strength TesterDetails
YiNuo YN-YSC3000 Microcomputer compressive strength TesterPacking list
- SKU
- NB033158
- Force range
- 0~3000N
- Error of indication
- ≤±1%
- Test force test range
- 0.4%~100%FS
- Working Travel
- 1~80mm
- Shaped compression size
- 1~260mm
- Force Accuracy
- +/- 1% or less
- Force resolution
- 0.01N
- Deformation resolution
- ≤0.1mm
- Up and down platen parallelism
- ≤0.05mm
- Parallelism self-regulation
- 45 °/360 ° 8-stage parallel adjustment
- Pressurization speed
- 12.5±1mm/min
- transverse pressure bearing
- 71*21mm/10000N
- longitudinal pressure bearing
- R=20.5mm/2/10000N
- Axial departure protection
- Brass seat cover
- System Power Supply
- Solid State Power Supply
- Human Machine Interface
- 7Inch touch screen + button test
- printout
- modular integrated thermal printer
- Size Weight
- 420m×400cm×500mm，38kg
Functional use
The microcomputer compressive strength Tester is used to detect 6 test items such as ring compression strength RCT, edge compression strength ECT, corrugated cardboard adhesion strength PAT, flat compression strength FCT, corrugated base paper CMT and CCT, etc.
The tests that can be carried out by the instrument with the corresponding auxiliary devices are as follows:
1. Equipped with ring pressure center plate and ring pressure sampler for ring pressure test (RCT)
2. Equipped with edge pressure sampler/guide block to carry out corrugated cardboard edge pressure test (ECT)
3. Equipped with a peel test frame for corrugated cardboard bonding peel test (PAT)
4. Equipped with a flat pressure sampler to carry out corrugated paper flat pressure test (FCT)
5. Flat compressive strength (CCT) and (CMT) after flugating in the base paper laboratory
Standard basis
GB/T 2679.8 、GB/T 6546、GB/T 6548、GB/T 2679.6
Main configuration
Main unit, 7.0in touch screen operation, 300kg Taiwan, CHINA brand sensor, high-precision motor, built-in printer, power cord, intelligent control system, manual, warranty card, printing paper
Features
Microcomputer control technology, high automation program, simple and convenient operation
7in touch screen with curve display, free switching between Chinese and English
The system automatically calculates, without the need for manual calculations, reducing workload and errors
Built-in air circulation and heat dissipation device to improve equipment failure for long-term operation
Using high-precision load cell, the factory accuracy error is controlled at < 0.3%
It adopts precision ball screw drive, aluminum alloy panel, good stainless steel upper and lower pressure plates and reasonable design to ensure that the instrument is durable.
Upper and lower limit protection devices, overload protection, automatic return after the test is completed, automatic judgment of crushing force and automatic saving of test data;
It adopts high-speed micro printer, which is easy to use and has low failure.
