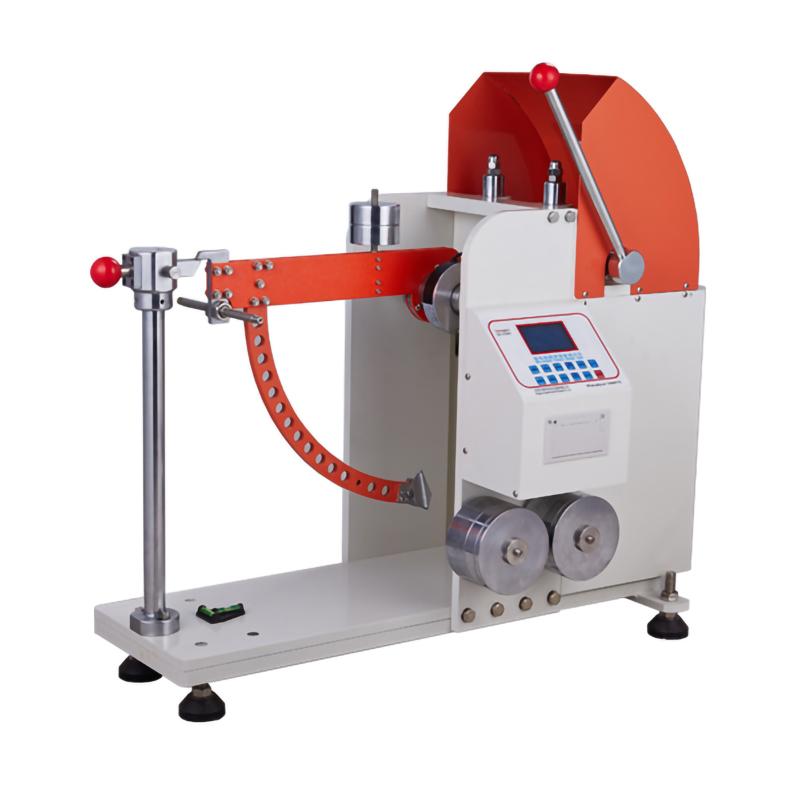

YINUO YN-CCY48 Microcomputer Penetration Strength Tester 1-48J

YN-CCY48

Microcomputer puncture strength Tester

Instrument use

YN-CCY48 microcomputer puncture strength Tester is used to detect the dynamic puncture strength of corrugated cartons. The triangular pyramid-shaped impact head is driven by the swing arm to puncture the sample instantly, and the safety performance index of protecting the product from external force damage when the carton is impacted by external force is measured. It is used to test the puncture resistance of corrugated carton packages, heavy carton packages, and various fiber composite boards. It is suitable for carton cardboard production and use enterprises, electronic component production and use enterprises, fragile product production and use enterprises and related scientific research units and testing agencies.

Principle

Test principle: Under the specified test conditions, clamp the sample on the puncture strength Tester, pierce the carton sample with a triangular prismatic cone, and read the energy consumed by the puncture of the sample, which reflects the instantaneous external force on the packaging carton The ability to protect the product from external damage during impact.

Executive standard

ISO 3036, GB/T 2679·7

technical features

Mechatronics modern design concept, compact structure, beautiful appearance, easy maintenance;

Using microelectronic professional measurement and control technology and computer technology, the degree of automation is high;

90-degree bow-shaped swing arm; triangular pyramid-shaped impact head (produced in accordance with international standards);

Strong steel structure to avoid energy loss caused by vibration during the test;

Separation mechanism with protection system, safety protection screen;

Pressure-adjustable self-tightening and anti-loosening fixtures and horizontal devices;

With data saving function, automatic measurement, statistics, and printing of test results;

product configuration

Standard configuration: host, weights, manual, warranty card, certificate of conformity.

Optional: drop, carton pressure Tester and other carton packaging and transportation testing equipment

Application

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
