YINUO YN-MC01 coefficient of friction, Coefficient of Friction Tester

SE
Measurement accuracy of +/- 0.001N, force range of 0~10N, slider mass can be selected 200 +/- 2g and other specifications, suitable for a variety of material testing.
$2612.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

YiNuo YN-MC01 Coefficient of frictIon MeterSPEC

YiNuo YN-MC01 Coefficient of frictIon MeterDetails

YiNuo YN-MC01 Coefficient of frictIon MeterPacking list

SKU
NB033165
Coefficient Measurement Range
0~1
Measurement Accuracy
±0.001N
Force range
0~10N
Slider Mass
200 +/- 2g (optional 100/500/1000g)
Slider size
63*63mm
Slider stroke
10 + 60mm (GB 10006, ISO 8295); 150mm (ASTM D1984); 1~ 320mm non-standard setting
Slider traverse speed
100mm/min（GB 10006、ISO 8295）；150mm/min（ASTM D1984）无级调速
Slider traverse speed
150mm/min (ASTM D1984) stepless speed regulation,
Miscellaneous speed
(0~550) mm/min adjustable
Maximum specimen size
Upper sample 63 * 63mm; lower sample 80 * 200mm
Film thickness
≤2mm
Work surface size
180*630mm
Dimensions
640*310*200mm
Weight
17kg
YN-MC01
Coefficient of frictIon Meter
Measurement accuracy of +/- 0.001N, force range of 0~10N, slider mass can be selected 200 +/- 2g and other specifications, suitable for a variety of material testing.

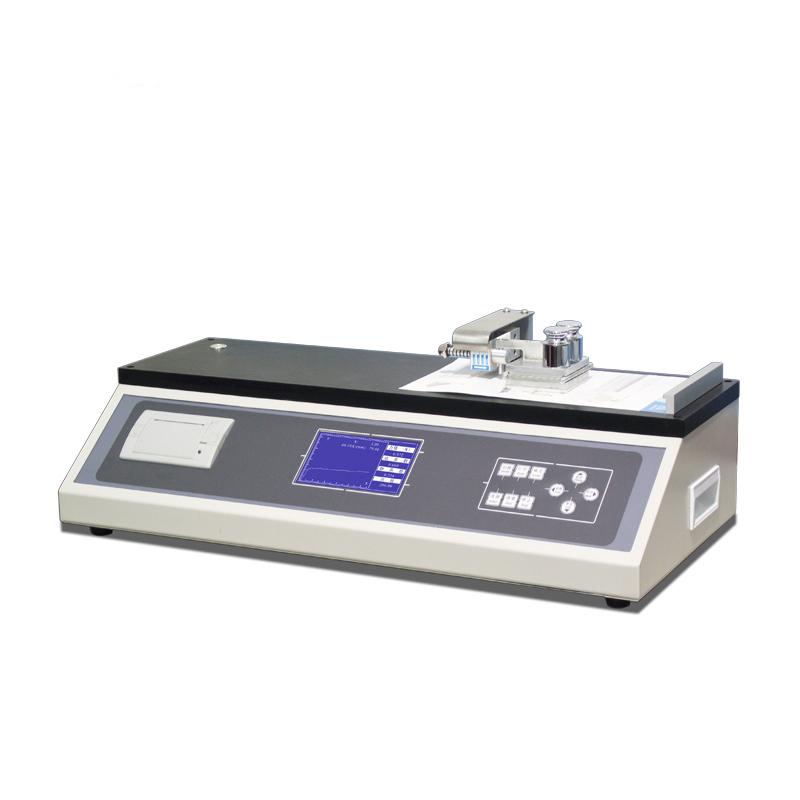

YINUO YN-MC01 coefficient of friction, Coefficient of Friction Tester Picture

use

YN-MC01 Friction Coefficient Meter refers to the ratio of the friction force between two surfaces to the vertical force acting on one surface. The friction performance of materials can be characterized by the dynamic and static friction coefficient of materials.

YN-MC01 coefficient of friction Tester is suitable for measuring paper and paper materials, plastic films and sheets, rubber, paper, cardboard, woven bags, fabric styles, metal material composite belts for communication cables and optical cables, conveyor belts, wood, coatings, brake pads The coefficient of static friction and coefficient of dynamic friction when materials such as wipers, shoe materials, and tires slide.

Executive standard

GB/T 17200, GB/T 22895, ISO 8295, ASTM D1894, TAPPI T816, GB/T 2792 and other standards

Features

1. The system can measure the static friction coefficient and dynamic friction coefficient of the sample at the same time

2. Both the instrument test bench and the test slider have undergone degaussing treatment and residual magnetism detection, which effectively reduces the system test error

3. The equipment is controlled by microcomputer, with menu-type operation interface, PVC control panel and LCD display, which is convenient for users to perform test operations and view data

4. The system accessories are all imported components that are familiar with the world, and the performance is stable and reliable

5. Professional software can automatically judge the state of slip and stick and statistically analyze the test results of group tests

6. Equipped with a micro-printer to automatically print the test report of a single piece or a group of samples

7. The standard RS232 interface facilitates the external connection and data transmission between the system and the computer

Application

basic applicationfilm, sheetDynamic and static friction coefficients of various plastic films, sheets, diaphragms, etc.
PaperDynamic and static friction coefficients of various paper, cardboard, composite cardboard, etc.
extended applicationmetal sheet, silicon chipDynamic and static friction coefficients of silicon wafers, foils, various metal sheets, etc.
Cardboard and other paper productsDynamic and static friction coefficients of cardboard and other paper products
textile materialDynamic and static friction coefficients of various textile materials such as woven fabrics, knitted fabrics, coated fabrics, etc.
Non-wovenDynamic and static friction coefficients of various nonwovens such as diapers, sanitary napkins, medical masks, etc.
other materialsDynamic and static friction coefficients of solid electrical insulating materials, adhesive tapes, geosynthetics, rubber, etc.


FAQ
QFriction coefficient meter can test the coating coefficient of friction?
A Hello, the sample Film thickness ≤ 2mm coating is OK.
