CHNSPEC CS-422 professional version spectroscopic Colorimeter 4mm + 11mm caliber

CS-422

Spectroscopic Colorimeter

4Mm + 11mm dual aperture, chromatic value Delta E * ab ≤ 0.03, 40mm integrating sphere diameter, support camera framing, with UV Light source can measure fluorescent color, 26 Light source indicators, Bluetooth connection mobile app, over one Measurement.

Introduction

The professional version of the Spectrophotometer CS-422 develops new skills of Colorimeter color measurement; built-in camera, you can measure where you want to measure; equipped with UV light source, realize fluorescent color measurement; connect mobile APP, data measurement and storage are not limited, multiple sets of Color Charts Information, search for similar colors anytime and anywhere; you can also use the APP to perform color matching and color correction functions. The CS-422 model supports caliber switching to meet the measurement of samples of different sizes.

Features

1. Automatic calibration, take care of yourself

2. SCI/SCE: It can remove the gloss measurement, which is more consistent with the human eye

3. There are many measurement parameters: 30+ measurement indicators such as hiding power, whiteness, yellowness, etc.

4. Many light source conditions: 26 kinds of light source evaluation indicators

5. Good repeatability and stable measurement——0.06

6. Guaranteed to pass the measurement certification

7. Portable massive Color Chart database

Connect to the mobile app, create a color database, and enter Color Chart information for printing, coatings, and textiles. You don’t need to carry a heavy Color Chart, you can use the instrument to find similar colors in multiple sets of Color Charts anytime, anywhere

8. Cloud database, more convenient to view and upload

Provide an official Color Chart database, search at will, and use as you like. The color information library created by the user can be uploaded to the cloud, data sharing among multiple devices, and color processing is more convenient. Enterprise users can create and manage their own Color Chart information library and color formula in the cloud. Through the unique invitation code, the information library and color formula Shared with merchants and users

9. Better performance

UV - Fluorescence can be seen

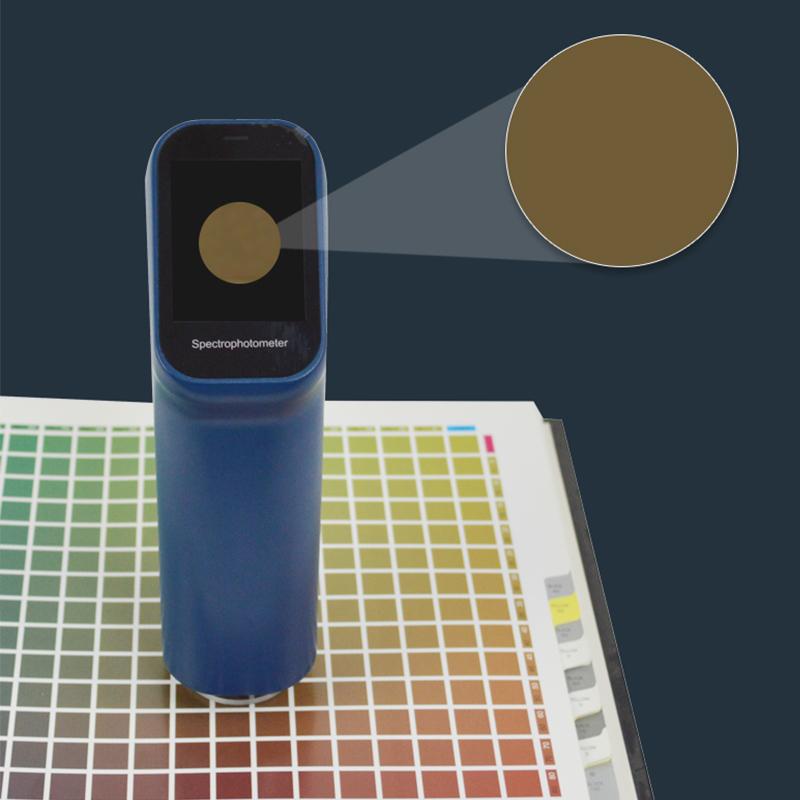

Camera - visible measurement area

Paint color matching software - you can use the App color correction function

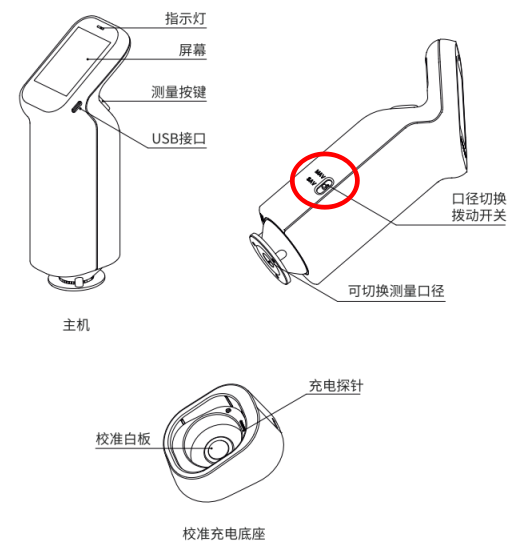

Product Structure

Packing list：Host X1, USB data cable X1, manual X1, warranty card X1, certificate X1, Encasement box X1, charging head X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
