JINGWEN JW104Q Pneumatic Cardboard Sampler

JINGWEN JW104Q Pneumatic Cardboard Quantitative Sampler is suitable for sampling of standard samples required for various paper quantitative determination and sheet burst resistance experiments. The JW104Q Pneumatic Cardboard Quantitative Sampler sampling area is 100cm2., the sample diameter is 112.8 mm, the sampling area error is +/- 0.35cm2., the sampling thickness is (0.1~ 1.2) mm.
Model：
Certificate
Contact
Details SPEC

jingwen JW104Q Pneumatic Cardboard SamplerSPEC

jingwen JW104Q Pneumatic Cardboard SamplerDetails

jingwen JW104Q Pneumatic Cardboard SamplerPacking list

SKU
NB033195
Sampling area
100cm²
Specimen diameter
112.8 mm
Sampling error
±0.35cm²
Sampling thickness range
0.1~1.2mm
Dimension
250*370*620mm
Mass
About 23kg
Measurement Accuracy
±0.01mm
Measurement range
0.05~1mm
JW104Q
Pneumatic Cardboard Sampler

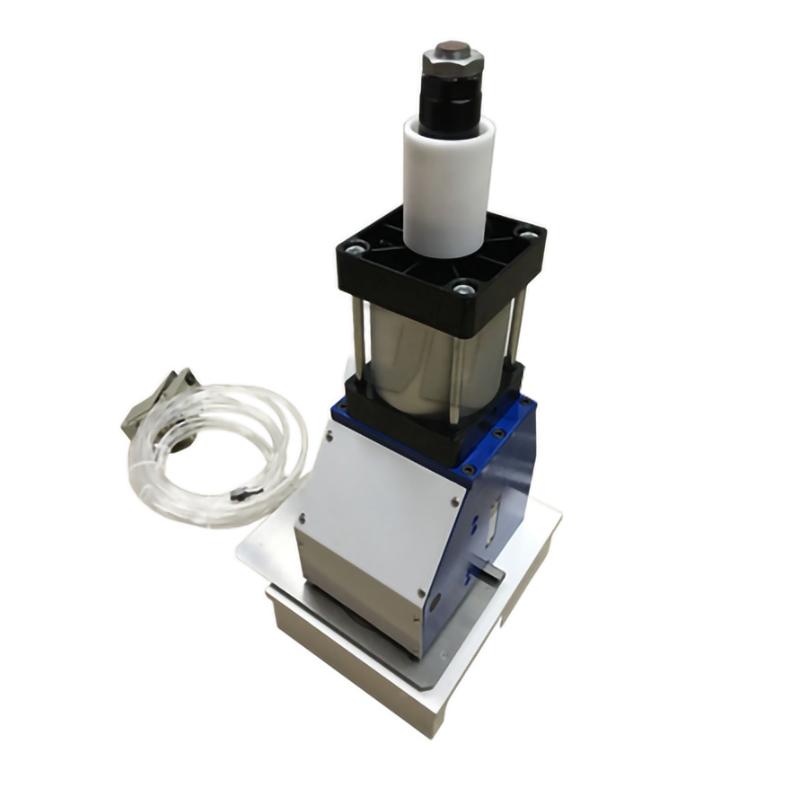

JINGWEN JW104Q Pneumatic Cardboard Sampler Picture

Brief introduction

The paper quantitative sampler, also known as the gram weight meter, is suitable for the sampling of standard samples required for the quantitative determination of various papers and the physical properties of thin sheet bursting experiments.According to the standard: QB/T 1671-98 "General Technical Conditions for Punching Specimen Instruments for Physical Properties Testing of Paper and Cardboard"

Operating Principle:

1. Place the instrument in a suitable position on a stable and firm work table.

2. Place the paper flat in the center of the chassis, press the foot switch, and then complete a sampling, and the sample falls into the chute and slides out from the side of the chute.

3. The upper punch automatically returns to the starting position. The specimen can be taken out for the corresponding test.


FAQ
QQB/T2693 Standard Pneumatic Cardboard Quantitative Sampler?
A This JINGWEN Pneumatic Cardboard Quantitative Sampler is fine!
