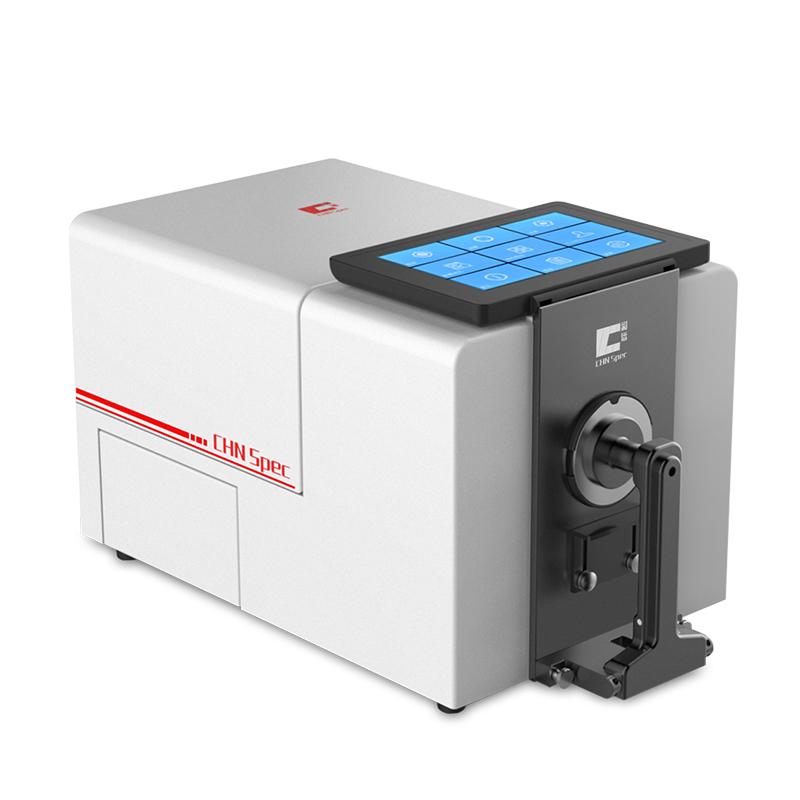

CHNSPEC CS-826 high-precision image Colorimeter high conformity

High Stability UV Light Source, Automatic Correction, With Pulse xenon arc and LED Lighting sources, 24 Standard light sources, 40 + measurement indicators, Dual light path Light spectrum analysis technology, Support SCI + SCE simultaneous fast measurement

$20249.00/set

PromotionLoading...

Coupon

Model：

CS-826

Certificate

CHNSpec

Manufacturer authorization

Contact

Details SPEC Con CAT OI

CHNSpec CS-826 ColorimeterSPEC

CHNSpec CS-826 ColorimeterDetails

CHNSpec CS-826 ColorimeterPacking list

SKU: NB033217

Lighting/Measurement conditions: Reflection: d/8 (diffuse illumination, 8 ° direction reception); Transmission: d/0 (diffuse illumination, vertical direction reception)

Sensors: Silicon photodiode array

spectroscopic mode: Concave grating spectroscopy

Integrating sphere size: Φ152mm

Wavelength range: 360~780nm

wavelength interval: 10nm

Light spectrum Bandwidth: 5nm

Reflectance Measurement Range: 0~200%

Lighting source: Pulse xenon arc and LED

Ultraviolet measurement: Includes UV, 400nm cutoff, 420nm cutoff, 460nm cutoff

Measurement time: SCI or SCE mode < 2s, SCI + SCE simultaneous measurement < 4s

Transmission measurement specification: Sample width and height: not limited, thickness: ≤ 50mm

Long Term Repeatability: XLAV chromatic value: standard deviation delta E * ab0.01, MAX Maximum delta E * ab 0.02)

Spectroscopic reflectance Repeatability: XLAV Light spectrum reflection/transmittance: standard deviation within 0.1%

Inter-instrument Agreement: ΔE*ab<0.1(XLAV)

Viewing Angle: CIE 2°/10°

Available Light Sources: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84

Operating language: Simplified Chinese, English, Traditional Chinese, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish

display mode: Light spectrum data, Light spectrum graph, chroma data, color difference data, color difference graph, pass/fail judgment, simulated color, color evaluation, haze, liquid chroma, Color bias

Color Space: L*a*b, L*C*h, Hunter Lab, Yxy, XYZ

Chroma indicator: WI, YI, TI, homochromatic index MI, colour fastness, discoloration fastness, force, coverage, intensity, ISO luminance, R457, A density, T density, E density, M density, APHA, Hazen, Pt-Co (platinum cobalt index), Gardner (Gardner index), Saybolt (Seibert index), Astm color, haze, total transmittance

Color difference formula: delta E * ab, delta E * CH, delta E * uv, delta E * cmc, delta E * 94, delta E * 00, delta Eab (Hunter), 555 shade classification

Storage space: 8GB

Display: 7-Inch capacitive touch screen

Operating system: Android

Power supply Voltage: 12V/3A

Operating environment: 5~ 40 ℃, Relative Humidity 80% (35 ℃) no condensation

Storage environment: -20~45 ℃, Relative Humidity 80% (35 ℃) no condensation

Interface: RS-232、USB、USB-B

meet the standard: CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 Condition C, ASTM E1164, ASTM-D1003-07

Repeatability of chromatic value: XLAV chromatic value: standard deviation delta E * ab0.01, MAX Maximum delta E * ab 0.02

Reflectance resolution: 0.01%

CS-826

Colorimeter

Introduction

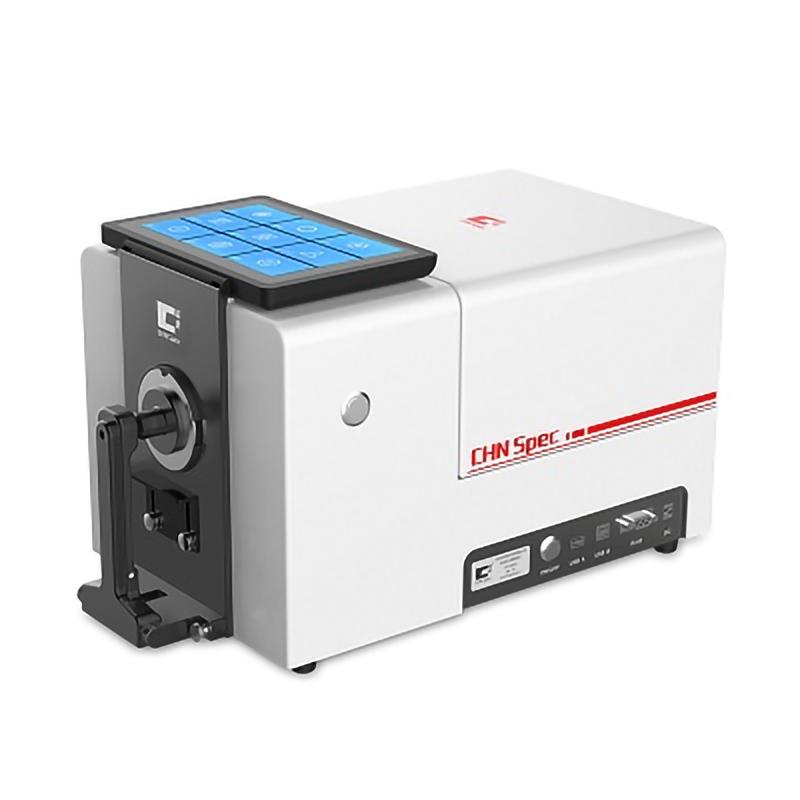

Image Spectrophotometer CS-826 is a high-precision, high-stability color Measurement Instrument; professional technology, powerful data processor, so that CS-826 has a good performance in the color measurement of black objects; The automatic calibration of the instrument ensures the stability of long-term measurement; the improved lighting source is well displayed in the measurement of fluorescence and visible light, and the measurement data of the instrument can maintain a good consistency with imported brands.

Features

1. Automatic calibration

2. High stability ultraviolet light source, providing stable fluorescence measurement marking line

3. It has good stability when measuring on black objects

4. It has good consistency with other competing products in the United States, Japan and Europe

5. Very good long-term stability, even after a drastic change in the environment, it can still ensure good measurement stability

6. It has two kinds of lighting sources: pulse xenon lamp and LED

7. 24 kinds of standard light sources, 40+ kinds of measurement indicators

8. Temperature and humidity computing compensation function

9. 7-inch touch screen, Android operating system

10. Dual optical path spectral analysis technology

11. Support SCI+SCE rapid measurement at the same time

Application

Paint coatings, ink printing, plastic particles, powders, liquids, textile yarns, glass, food,

FAQ

QWhich CHNSPEC color difference meter can be used to measure sand grains?

A CS-826, CS-821N series, CS-820N series, CS-390, CS-392, CS-650, CS-520, DS-700 series are all available.

QWhich CHNSPEC color difference meter is used for Masterbatch color measurement?

A DC-1000 series, CS-826, CS-821N, CS-820N, CS-390, CS-392, CS-650, CS-520 are all available.

QCan this cs826 measure black flannel?

A Sure

QWhich CHNSPEC colorimeter is used for tomato sauce color measurement?

A CHNSPEC CS-826, CS-821N, CS-820N, CS-390, CS-392, CS-650, CS-520, DS-700 series and spectroscopic color difference treasure can be tested.

QButton Color Test, Which CHNSPEC Color Tester to Choose?

A CHNSPEC's CS-821N, CS-826, CS-820N, CS-650, CS-520, DS-700 series can be tested.

QHeadphone color difference, which CHNSPEC is suitable?

A CHNSPEC's CS-821N, CS-826, CS-820N, CS-650, CS-520, DS-700 series can all test curved objects such as headphones.

QPlastic film. Color test. Do you want to use this one?

A Hello, yes, just choose a film fixture.

QCan CS-826 be used if testing is to be done on the side?

A Hello, yes, but you need to buy additional accessories.

QAre all Colorimeters available for inspection in the GB/T1766 standard?

A Not necessarily, but this CS-826 Colorimeter can be considered.

QIs this color reader compatible with Color software?

A Hello, CS-826 color reader comes standard with management software.
