CHNSPEC CS-828 Image Colorimeter Spinning & weaving yarn Complex image Color measurement

SE
Color Measurement Instrument for complex images. Color measurement and color scheme for rock color lacquer, Spinning & weaving yarn and other products. Minimum measurement 0.09mm ^ 2 area, between square inches, every minute
$56004.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

CHNSpec CS-828 ColorimeterSPEC

CHNSpec CS-828 ColorimeterDetails

CHNSpec CS-828 ColorimeterPacking list

SKU
NB033218
Lighting/Measurement conditions
Reflection: d/8 (diffuse illumination, 8 ° direction reception) SCI (including specular reflected light)/SCE (excluding specular reflected light) simultaneous measurement.
meet the standard
CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 Condition C, ASTM E1164, ASTM-D1003-07
Sensors
Silicon photodiode array
spectroscopic mode
Concave grating spectroscopy
Integrating sphere size
Φ152mm
Wavelength range
400~700nm
wavelength interval
10nm
Light spectrum Bandwidth
5nm
Reflectance Measurement Range
0~200%
Lighting source
Light spectrum LED
Measurement caliber
30 * 30Mm, any size can be customized
Minimum measurement area
0.3mm2
Repeatability of chromatic value
XLAV: Standard deviation Delta E * ab0.03, MAX Maximum Delta E * ab 0.1
Inter-instrument Agreement
ΔE*ab<0.4(XLAV)
Viewing Angle
CIE 2°/10°
Available Light Sources
A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84
Color Space
L*a*b, L*C*h, Hunter Lab, Yxy, XYZ
Chroma indicator
WI, YI, TI, homochromatic index MI, colour fastness, discoloration fastness, force, coverage, intensity, ISO luminance, R457, A density, T density, E density, M density
Color difference formula
delta E * ab, delta E * CH, delta E * uv, delta E * cmc, delta E * 94, delta E * 00, delta Eab (Hunter), 555 shade classification
Operating environment
5~ 40 ℃, Relative Humidity 80% (35 ℃) no condensation
Storage environment
-20~45 ℃, Relative Humidity 80% (35 ℃) no condensation
Interface
USB
Reflectance resolution
0.01%
CS-828
Colorimeter
Color Measurement Instrument for complex images. Color measurement and color scheme for rock color lacquer, Spinning & weaving yarn and other products. Minimum measurement 0.09mm ^ 2 area, between square inches, every minute

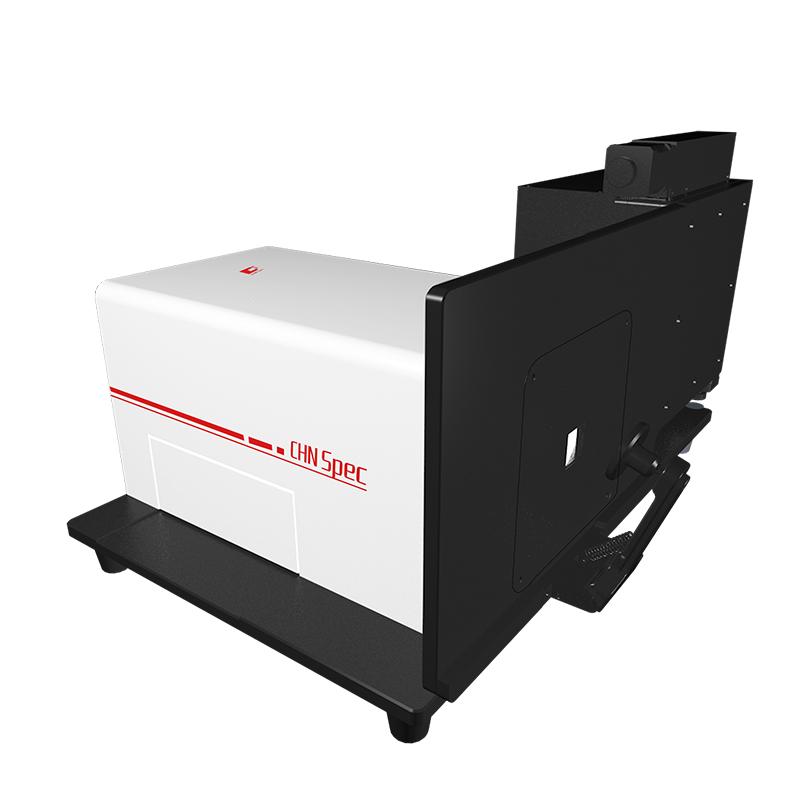

CHNSPEC CS-828 Image Colorimeter Spinning & weaving yarn Complex image Color measurement Picture

Introduction

Image Spectrophotometer CS-828 is a professional instrument for complex image color measurement; powerful performance configuration, professional image data processing technology, even when measuring an area of 0.09 square millimeters, it can also ensure repeatability in DE*ab0 Within .1; CS-828 can solve the color measurement and color matching problems of rock paint, textile yarn and other products.

Measurement scene

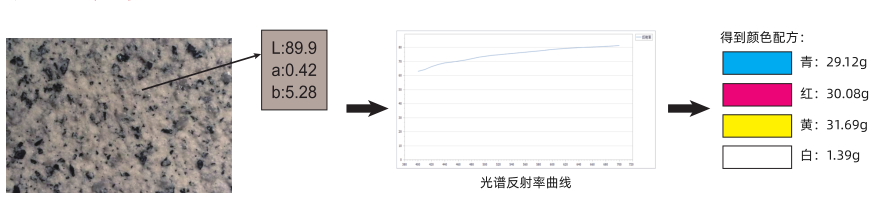

Color Spectrum CS-828 Spectrophotometer Details Figure 1

Features

1. Automatic calibration

2. Professionally applied to complex image color measurement

3. The minimum measurement area is 0.09mm^2 - between square inches, every detail is visible

4. Guarantee good data transferability with ordinary Spectrophotometer s

5. 24 kinds of standard light sources, 30+ kinds of measurement indicators

Can provide SCI/SCE measurement results

FAQ
QWater in water, sand in water, wood grain and other complex Color can be measured?
A OK
QCan this Colorimeter be applied to GB/T1766?
A OK
QWhat is the measurement aperture of CS-828 image colorimeter?
A Hello, the measurement diameter is 30 * 30mm.
QWhat is the wavelength range of this colorimeter measurement?
A Hello, it is 400nm~ 700nm.
