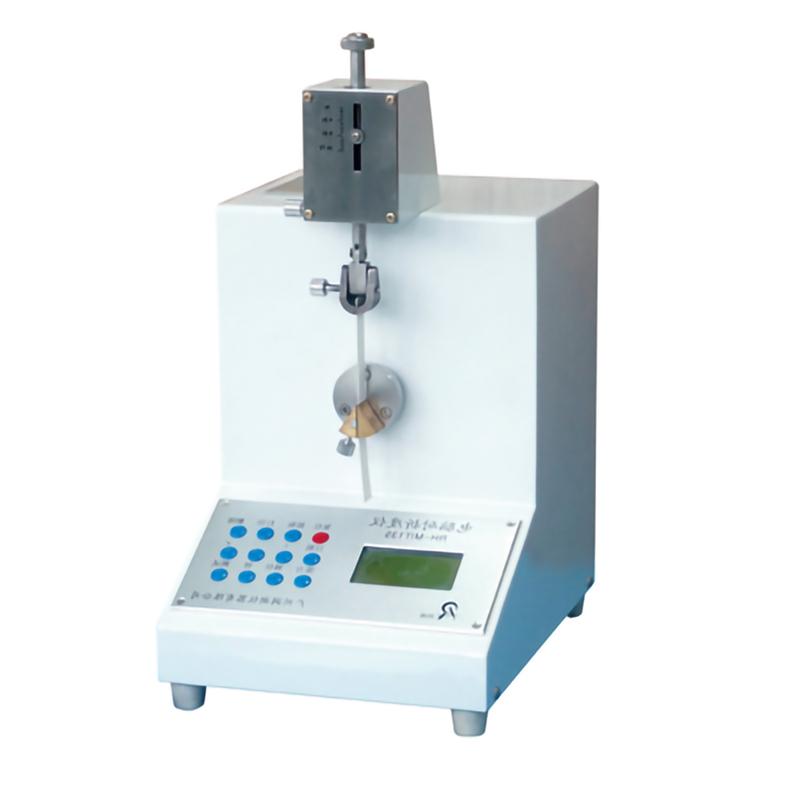

RUNHU RH-MIT135 Paper Folding Endurance Tester
RH-MIT135
-
JINGWEN JW107C MIT Paper Folding Endurance Tester$ 1446.00SE -
CHINA NBC-5632 MIT type folding Tester Paper Folding Endurance Tester$ 1409.00SE -
CHINA NBC-5637 MIT Paper Folding Endurance Tester$ 1330.00SE -
CHINA ZY-NZ1 folding resistance instrument$ 1594.00SE -
CHINA ZY-NZ-1 Folding Tester Cardboard Folding Tester$ 1563.00SE
runhu RH-MIT135 Paper Folding Endurance TesterSPEC
runhu RH-MIT135 Paper Folding Endurance TesterDetails
runhu RH-MIT135 Paper Folding Endurance TesterPacking list
- SKU
- NB033255
- Measurement range
- 1~ 99999 times
- folding logarithm
- 0 ~4.78
- spring tension
- 4.9N ~14.7N
- folding angle
- Left and right 135 +/- 2 °
- folding speed
- 175 +/- 10 times/min
- Folding mouth gap distance
- 0.50Mm, 0.75mm (standard); 0.25mm, 1.00mm, 1.25mm (custom)
- Dimension
- 330×250×400mm
- Mass
- About 30kg
- Power Supply
- AC220V，50Hz
Introduction
This instrument is suitable for measuring the folding fatigue strength of paper, cardboard and other sheet materials with a thickness of less than 1.25mm.
Executive standards: ISO5626, GB/T2679.5, QB/T1049, GB/T457
Features
1. This instrument is the third generation product produced by our company. Driven by stepper motor, the transmission is stable and the noise is low. The folding angle and folding speed are very precise.
2. The included weighing weight can calibrate the spring tension at any time to ensure that the test results are accurate and stable.
3. LCD Chinese display, friendly man-machine interface operation, fully automatic completion of the test, with test data statistical processing function, micro printer output. The automatic reset of the chuck makes the test more convenient, and the automatic memory and display of the test results and the output of the micro printer make the test more convenient to complete.
4. The instrument is equipped with a special calibration weight, which is convenient for the measurement and calibration department (third party) to calibrate the instrument.
