JINGHUAYIQI LD-BL-A (180 °/200kg) 180 ° Peel strength tester Adhesive tape disbonding force test

SE
Maximum load 200kg, Accuracy grade 0.5, Test speed range 5~ 500mm/min. Support a variety of material disbonding and tensile testing, can automatically draw Linear dispersion and calculate interval results.
$1585.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con

JingHuaYiQi LD-BL-A(180°/200kg) 180 ° Peel strength testerSPEC

JingHuaYiQi LD-BL-A(180°/200kg) 180 ° Peel strength testerDetails

JingHuaYiQi LD-BL-A(180°/200kg) 180 ° Peel strength testerPacking list

SKU
NB033273
Capacity selection
0~200kg ;(2kg,5kg,10kg,20kg,30kg,50kg,100kg,200kg
Accuracy class
Level 0.5
Maximum load
10KG
Force range
0.02/100-100%
Test force resolution
The maximum load 250,000 code; the inside and outside are not divided into gears, and the whole resolution remains unchanged
Effective test width
100mm
effective travel
400mm
Test speed range
5~500mm/min
Speed Accuracy
±0.5%
Displacement measurement Accuracy
Within ± 0.5% of the indication
Acquisition sensing method
High Precision Sensors
Control system
Stepper motor + stepper driver
Test bench lifting device
Computer digital control/manual jog control
Test bench safety protection device
Software automatic diagnosis, electronic limit
re-test
Manual can return to the initial position of the test at the highest speed, and automatic can return automatically after the test is over
Fixture configuration
Customized according to user product sample requirements
motor
400W
Weight
About 55kg
LD-BL-A(180°/200kg)
180 ° Peel strength tester
Maximum load 200kg, Accuracy grade 0.5, Test speed range 5~ 500mm/min. Support a variety of material disbonding and tensile testing, can automatically draw Linear dispersion and calculate interval results.

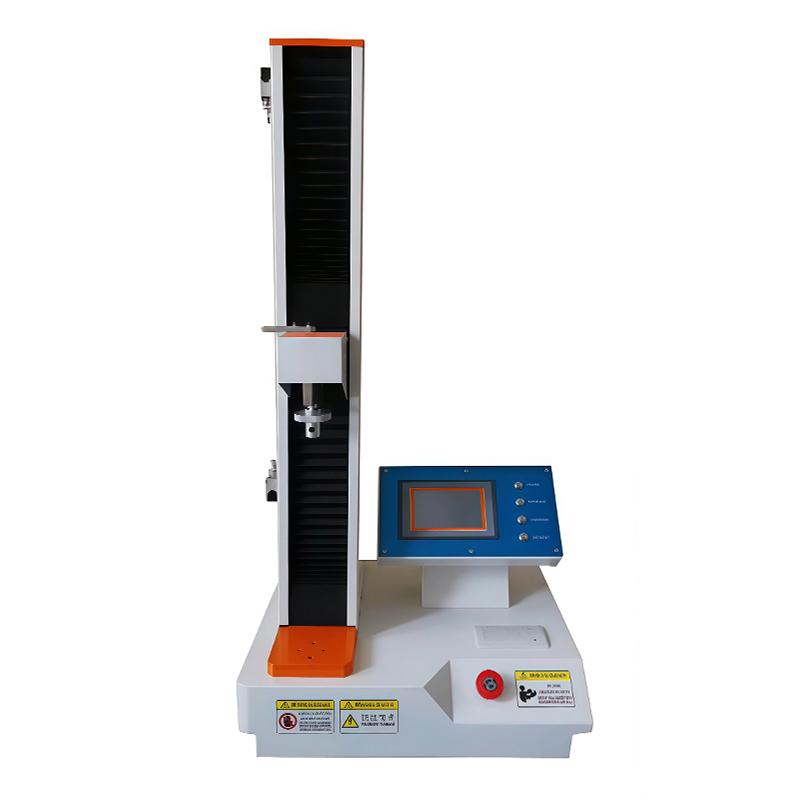

JINGHUAYIQI LD-BL-A (180 °/200kg) 180 ° Peel strength tester Adhesive tape disbonding force test Picture

Introduction

The 180° peel Strength Tester is specially used for tensile testing and tensile strength testing of plastics, non-woven fabrics, leather, cloth-based zippers and other products. Used for coatings, plastic films, composite films, and soft packaging with different fixtures. Materials, adhesives, adhesive tapes, self-adhesives, rubber, paper, and other products are subjected to tensile tests, tensile strength and elongation, breaking force and elongation, right-angle tearing, heat seal strength, tear strength , 180°peel strength (including T-type), 90°peel, anti-puncture test and other items testing.

Standards

GB/T2792 adhesive tape peel force test standard; ASTM D3330,

Test Methods

1. Fold the free end of the sample 180 degrees in half, and peel it off from the test plate, the adhesive surface is 25mm. Clamp the free end of the sample and the test plate on the upper and lower clamps. The peeling surface should be consistent with the force line of the test machine. The testing machine peels continuously at a peeling speed of 300mm/min±10mm, and an automatic Recorder draws the peeling curve (GB/T2792-1998 adhesive tape peeling force test standard).

2. Test result: calculated according to the distance between 20-80mm after stripping.

3. Within the peeled duty range, read a number every 20mm, at least 4 numbers must be read. Find its average.

4. Printed report with A4 paper size, with various curve analysis.

5. Can distinguish the maximum value, minimum value and average value in a sample.

6. After the test is completed, it can calculate the results of different intervals and take point analysis.


FAQ
QPeel strength tester can test 90 °, 180 ° at the same time?
A Hello, yes. With 2 sets of jigs.
QIs the accuracy of this Peel strength tester high?
A Hello, the accuracy level is 0.5.
QJINGHUAYIQI JH-BL-A (180 °/200kg) Peel strength tester can meet the GB/T2792 standard?
A Applicable, you can consult the customer service of the mall for details about the GB/T2792 standard.
