JINGJI NPD-J paper Burst Strength Tester Mechanical

JINGJI NPD-J paper Burst Strength Tester is suitable for measuring the bursting resistance of single-layer or multi-layer paper and other sheet materials with a pressure below 1000kpa. Measurement range of NPD-J paper Burst Strength Tester is 0~1000kpa. The diameter of the inner hole of the upper chuck is 30.5 +/- 0.05 mm, the diameter of the inner hole of the lower chuck is 33.1 +/- 0.05 mm, and the pressure speed is 95 +/- mL/min.
Contact
Details SPEC

jingji NPD-J (Mechanical) Paper Burst Strength TesterSPEC

jingji NPD-J (Mechanical) Paper Burst Strength TesterDetails

jingji NPD-J (Mechanical) Paper Burst Strength TesterPacking list

SKU
NB033360
Measurement range
0~1000kpa
Upper clamp ring aperture
Φ(30.5±0.05)mm
Lower clamp ring aperture
Φ(33.1±0.05)mm
Oil delivery speed
95±5mL/min
film thickness
0.8~0.9mm
Concentricity of Upper/Lower plates
≤0.25mm
NPD-J (Mechanical)
Paper Burst Strength Tester

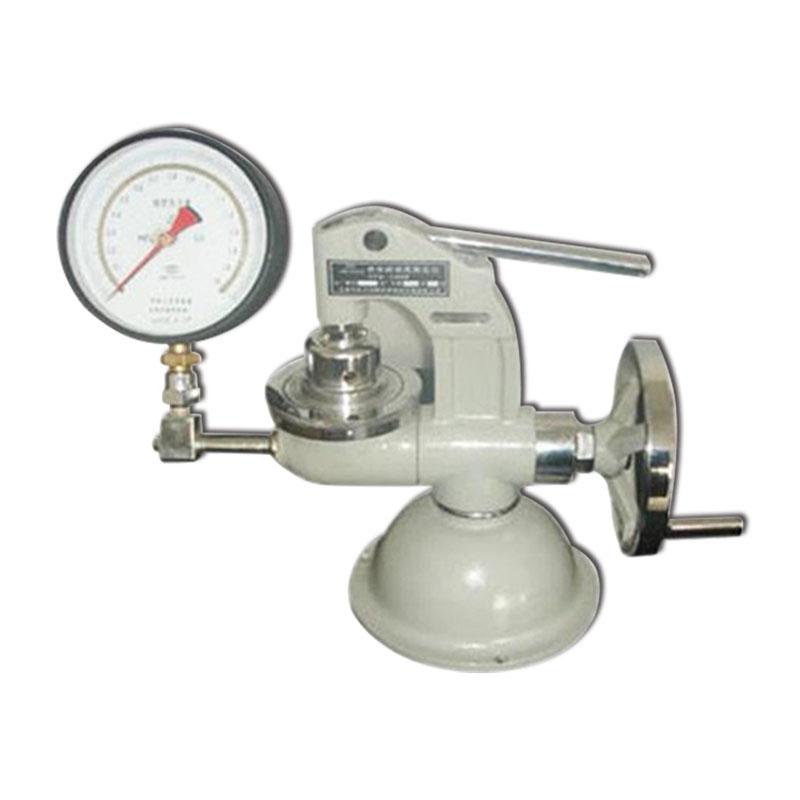

JINGJI NPD-J paper Burst Strength Tester Mechanical Picture

Applications

NPD-J paper burst Tester is designed and manufactured according to the light industry standard of the People's Republic of CHINA QB/T1057-98 "Paper and Cardboard Burst Resistance Tester".

Features

The instrument is suitable for measuring the burst resistance of single or multi-layer paper and other sheet materials with a pressure of less than 1000kPa.

According to the standard: QB/T1057-98
