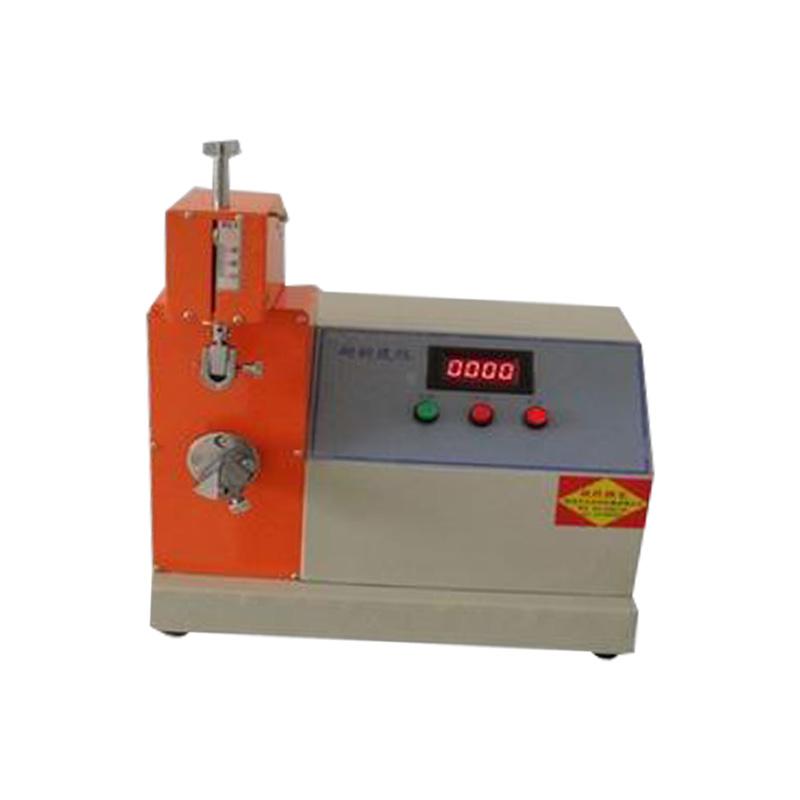

JINGJI NZD-2 Paper Folding Endurance Tester MIT
NZD-2
-
JINGWEN JW107C MIT Paper Folding Endurance Tester$ 1446.00SE -
CHINA NBC-5632 MIT type folding Tester Paper Folding Endurance Tester$ 1409.00SE -
CHINA NBC-5637 MIT Paper Folding Endurance Tester$ 1330.00SE -
Taichang TC-NZ135A Touch Screen MIT Folding Tester 0.25mm$ 1485.00SE -
CHINA ZY-NZ1 folding resistance instrument$ 1594.00SE
jingji NZD-2 Paper Folding Endurance Tester MITSPEC
jingji NZD-2 Paper Folding Endurance Tester MITDetails
jingji NZD-2 Paper Folding Endurance Tester MITPacking list
- SKU
- NB033370
- Measurement range
- ≤1 mm
- Count range
- 0~9999 times
- folding angle
- 135±2°
- folding speed
- 175 +/- 10 times/min
- Folding head width
- 19±1mm
- crease radius
- 0.38±0.02mm
- Folding mouth gap distance
- 0.25，0.50，0.75，1.00mm
Scope of application
MIT paper folding resistance Tester is designed according to CHINA's national standard GB/T2679.5 "Determination of folding resistance of paper and cardboard", which is an optical mechatronics structure, which can automatically count the number of double folds of the tested sample.
Features
The instrument adopts photoelectric control technology, which can make the folding chuck automatically return to position after each experiment, which is convenient for the next operation. The instrument has a powerful data processing function: it can not only convert the number of double folds of a single sample and the corresponding logarithmic value, but also count the experimental data of multiple samples in the same group, and can count the maximum, minimum, average value and coefficient of variation of the same group of samples, which are stored in the microcomputer and can be displayed through the digital tube. In addition to this, the instrument also has a printing function.
