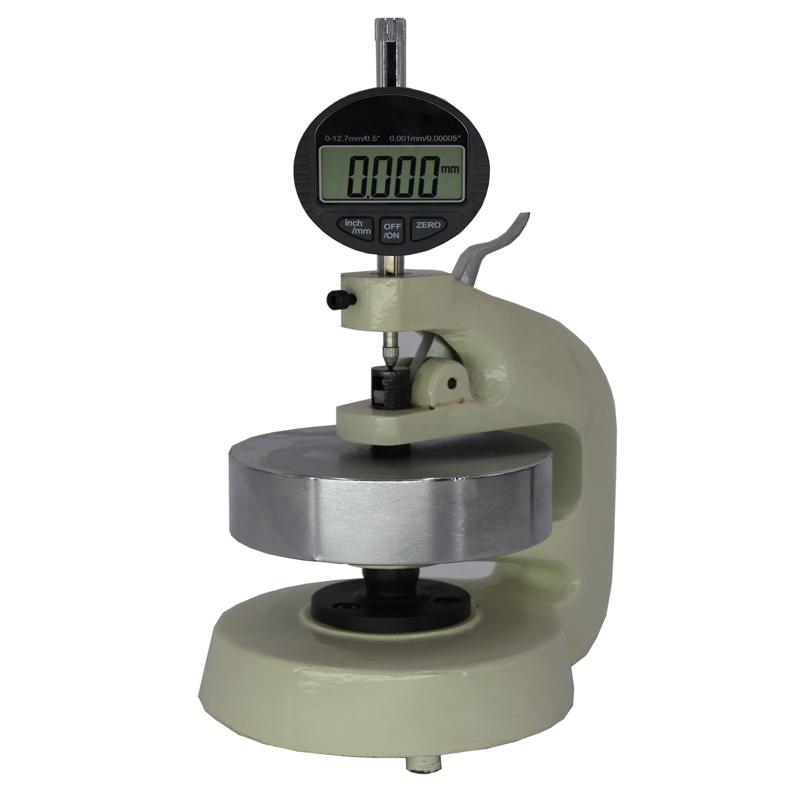

JINGJI HD-04 paper Thickness Gauge

JINGJI HD-04 paper Thickness Gauge can be widely used in the thickness determination of paper, Cardboard and Miscellaneous sheet materials, HD-04 paper Thickness Gauge Measurement range (0~4) mm, Graduation 0.01mm, contact pressure (100 +/- 10) kPa, contact area (200 +/- 5) mm2, measurement surface parallelism ≤ 0.005mm, error of indication +/- 0.0025mm or +/- 0.5%.
Model：
Contact
Details SPEC
Similar products

jingji HD-04 Paper Thickness GaugeSPEC

jingji HD-04 Paper Thickness GaugeDetails

jingji HD-04 Paper Thickness GaugePacking list

SKU
NB033372
Measurement range
0~4mm
Contact Pressure
100±10kPa
Contact area
200±5mm²
Measurement plane parallelism
≤0.005mm
Error of indication
±0.0025mm/±0.5％
Indication variability
≤ 0.0025Mm or ≤ 0.5%
Dimensions
233*160*120mm
Weight
About 5.5kg
Resolution
0.01mm
HD-04
Paper Thickness Gauge
JINGJI HD-04 paper Thickness Gauge Picture

Applications

Paper and cardboard Thickness Gauge is a special instrument for the thickness determination of paper and cardboard, and its main technical indicators and performance parameters comply with the relevant provisions of GB451.3 "Determination of Paper and Cardboard Thickness", which can be widely used in the thickness determination of paper, cardboard and other sheet materials.

Product principle

Under a certain area and a certain load, the thickness of the measured object. The pointer Thickness Gauge can be used as a basic measurement for item inspection.

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
