SUMSPRING NPD-3000 Automatic Burst Strength Tester (Cardboard)

SUMSPRING NPD-3000 automatic bursting strength Tester (Cardboard) is widely used in various Quality control centers, carton factories and other units, NPD-3000 automatic bursting strength Tester Measurement range ≤ 6000 kPa (accuracy 1kPa), hydraulic speed 170 +/- 10ml/min, sample holding force > 690kPa, motor 1/4HP.
Model：
Contact
Details SPEC
Similar products

sumspring NPD-3000 Automatic Burst Strength Testing Machine (Cardboard)SPEC

sumspring NPD-3000 Automatic Burst Strength Testing Machine (Cardboard)Details

sumspring NPD-3000 Automatic Burst Strength Testing Machine (Cardboard)Packing list

SKU
NB033379
induction method
pressure converter
print data
The test value has average value, time, date and other data
Instruction method
Digital A/D value progress rate 40 times/S, Test Accuracy is high
Measurement range
≤6000kPa
Oil delivery speed
170±10mL/min
Clamping Force
>690Kpa
motor
1/4HP
Dimensions
500*430*500mm
Weight
65Kg
air source pressure
0.5MPa-0.7MPa (gas source customer-provided)
Environmental temperature
15-50℃
Relative Humidity
Up to 70% RH
Power supply Voltage
220V 50HZ
NPD-3000
Automatic Burst Strength Testing Machine (Cardboard)

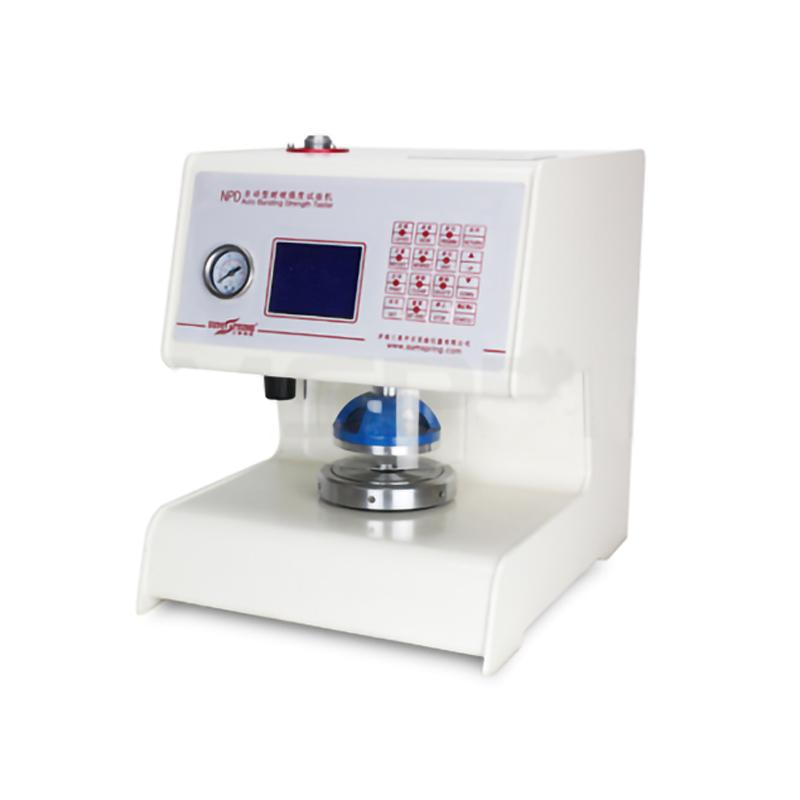

SUMSPRING NPD-3000 Automatic Burst Strength Tester (Cardboard) Picture

Introduction

Automatic Burst Strength Tester (Cardboard) NPD-3000 is suitable for the bursting strength test of various types of cardboard, and its performance parameters and technical indicators meet the requirements of GB/T6545 "Cardboard - Determination of Bursting Strength", ISO2759 "Cardboard - Determination of Bursting Resistance", GB1539 "Determination of Bursting Resistance of Cardboard" and other standards. NPD-3000 automatic burst Strength Tester adopts microcomputer control, liquid crystal display of the whole experimental process, test results are automatically printed, is a high-performance and portable burst strength testing instrument, is widely used in quality inspection centers, carton factories and other units.

Test principle

The specimen is clamped on the elastic adhesive film between the two chucks of the burst resistance meter, and the upper and lower chucks tightly clamp the surrounding of the specimen, so that the sample and the adhesive film are free to convex together, and when the hydraulic fluid is pumped in at a stable rate to make the adhesive film convex until the sample is broken, the maximum pressure applied is the burst strength of the sample.

Scope of application: The automatic burst resistance of corrugated cardboard is used for the burst strength test of various types of cardboard.

Technical characteristics

  • Microcomputer processing system, PVC control panel, convenient for users to use

  • Automatic judgment of rupture, automatic decompression, memory of test results, high degree of automation

  • The microcomputer collects data within the pressure value, and its calculation speed is high

  • Micro printer printout, convenient for fast data output

  • The automatic burst resistance testing machine adopts synchronous motor transmission, which is stable and accurate, and makes the output pressure more accurate

  • Compact structure, beautiful appearance, easy to use

standard

GB/T 6545、ISO 2759、GB 1539、TAPPI T810

disposition

Standard configuration: automatic burst strength Tester host, glycerin, micro printer, calibrator, rubber film
