TQC SP4000 hexagonal WFT gauge, range: 20-370 microns, six-sided Wet film instrument

Range range of 20~370μm, sub-scale 10/20μm, accuracy +/- 10μm, material stainless steel, Appearance size φ 50mm.

$215.00/piece

PromotionLoading...

Coupon

Model：

SP4000

Certificate

TQC sheen

Contact

Details SPEC Con VIDEO OI

TQC sheen SP4000 Wet Film Thickness GaugeSPEC

TQC sheen SP4000 Wet Film Thickness GaugeDetails

TQC sheen SP4000 Wet Film Thickness GaugePacking list

SKU: NB000334

Range: 20~370μm

Graduation: 10|20μm

Accuracy: ±10μm

material: stainless steel

Appearance size: Φ50mm

SP4000

Wet Film Thickness Gauge

Range range of 20~370μm, sub-scale 10/20μm, accuracy +/- 10μm, material stainless steel, Appearance size φ 50mm.

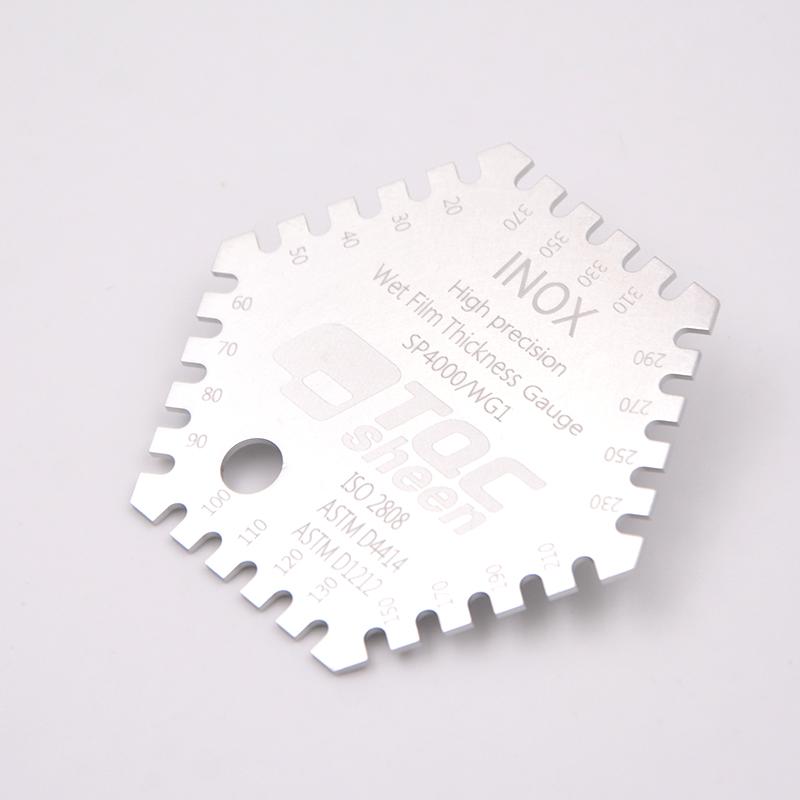

TQC SP4000 hexagonal WFT gauge, range: 20-370 microns, six-sided Wet film instrument Picture

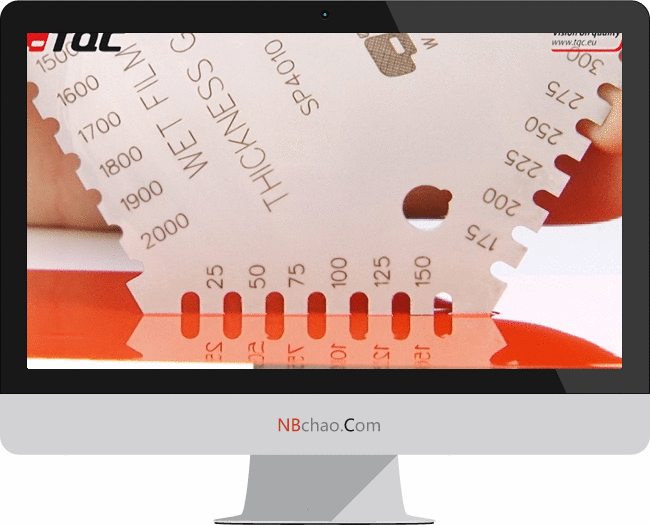

TQC SP4000 hexagonal wet Film Thickness Gauge operation animation video.gif

Introduction

TQC brand SP4000 hexagonal wet Film Thickness Gauge (accurate gauge) is lightweight, easy to carry and easy to operate. The wet film thickness measurement piece made of good stainless steel will not be affected by corrosion from acid and alkali components, is highly precise and durable.

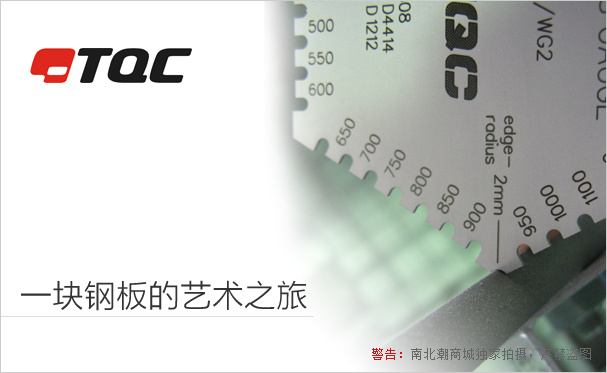

SP4000 hexagonal wet Film Thickness Gauge display picture 1.jpg

SP4000 hexagonal wet Film Thickness Gauge display picture 2.jpg

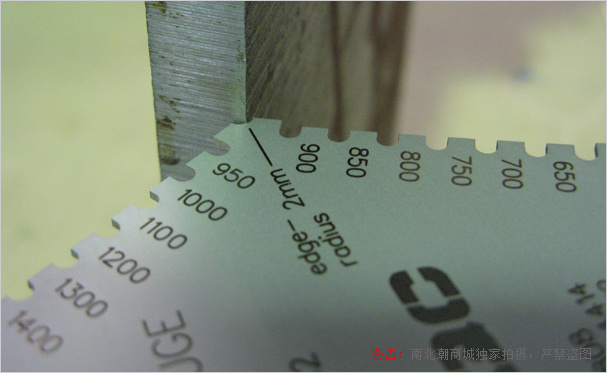

SP4000 hexagonal wet Film Thickness Gauge display picture 3.jpg

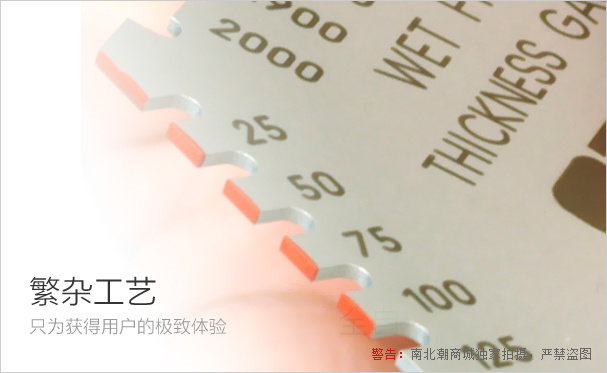

SP4000 hexagonal wet Film Thickness Gauge display picture 4.jpg

SP4000 hexagonal wet Film Thickness Gauge display picture 5.jpg

Specifications

model	Measuring range	diameter	Material	Accuracy
SP4000	20-370 micron	50mm	Stainless steel	10 micron

Applicable scope of wet film thickness measuring gauge

20-370 microns for decorative coatings and primers.

25-2000 micron for protective coatings, high solids adhesive with corner radius calibration (2mm).

50-10,000 microns, used for thicker coatings like floor coatings, fillers, fireproofing treatments, gypsum plasters, adhesives, etc.

Product details

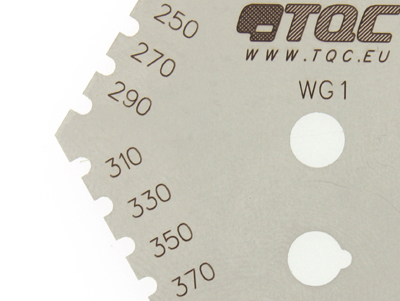

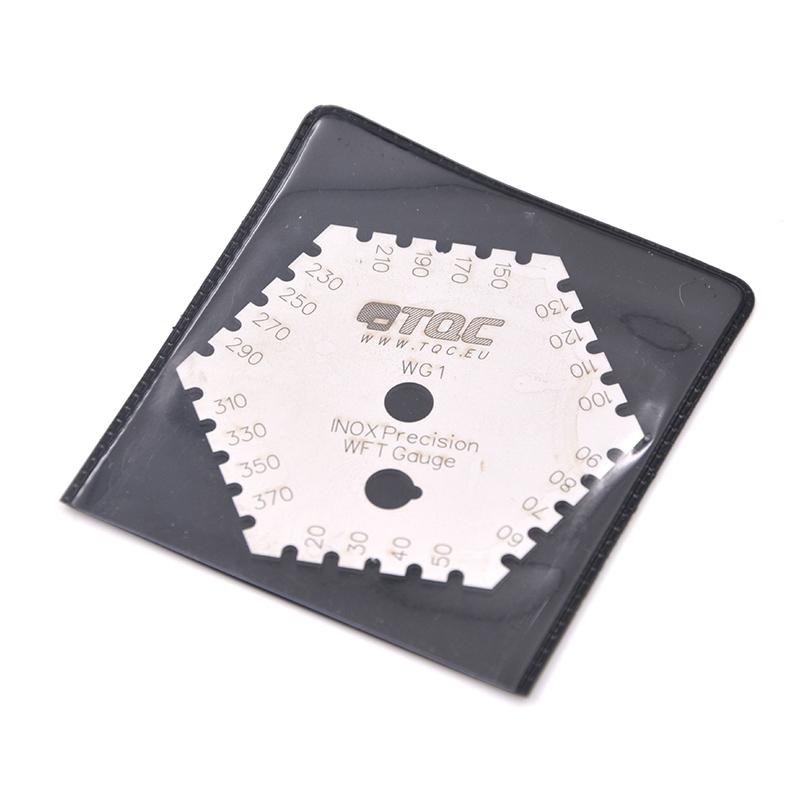

SP4000 hexagonal wet Film Thickness Gauge detail picture 1.jpg

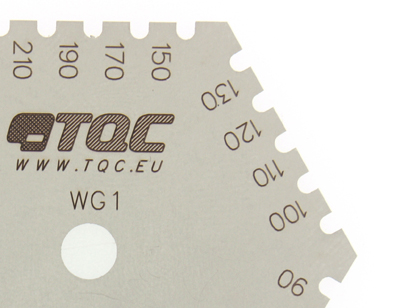

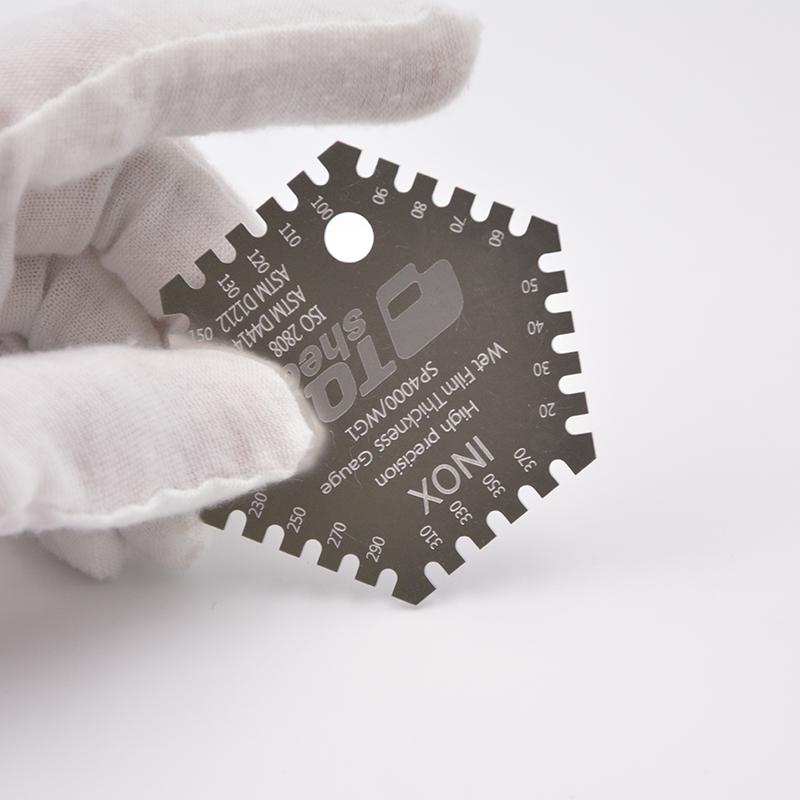

SP4000 hexagonal wet Film Thickness Gauge detail picture 2.jpg

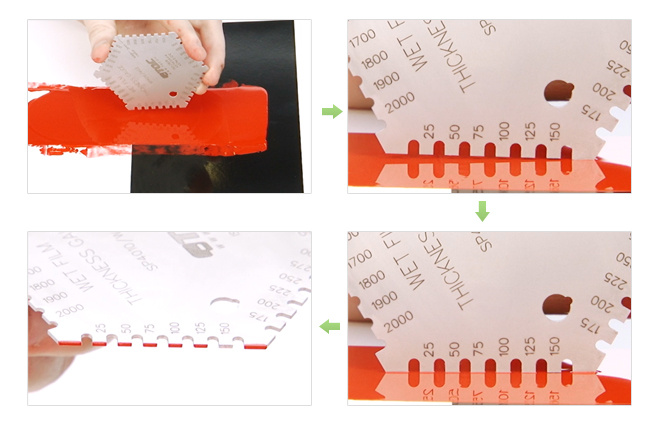

Operation guide chart

SP4000 Hexagonal Wet Film Thickness Gauge Operation Instructions.jpg

Series models of wet Film Thickness Gauges

model	Measuring range	series	Accuracy	diameter	Material
SP4000	20-370Âµm	24 (6Ã4) hexagons	10Âµm	50mm	Stainless steel
SP4010	25-2000Âµm	36 (6Ã6) hexagons	25Âµm	50mm	Stainless steel
SP4020	50-10000Âµm	71 (8Ã9) octagon	50Âµm	50mm	Stainless steel

Wet Film Thickness Gauge Specification Details

|| SP4000

WG-I wet Film Thickness Gauge 20-370 microns, 24 scales (hexagonal, 4 scales on each side)

|| SP4010

WG-II wet film thickness measuring gauge 2000 microns, 36 scales (hexagonal, 6 scales on each side), engraved with 2mm scale lines

|| SP4020

WG-III Wet Film Thickness Gauge 50-10000 microns, 71 scales (octagonal, 9 scales on each side)

Graduation: 0-900 range is 50Âµm; 900-5500 range is 100Âµm; 5500-9000 range is 500Âµm.

Measuring range	series	Accuracy	diameter	model
20-370Î¼m	24(6Ã4)	side 1:20 30 40 50 side 2:60 70 80 90 side 3:100 110 120 130 side 4:150 170 190 210 side 5:230 250 270 290 side 6:310 330 350 370	50mm	SP4000
25-2000Î¼m	36(6Ã6)	side 1:25 50 75 100 125 150 side 2:175 200 225 250 275 300 side 3:350 400 450 500 550 600 side 4:650 700 750 800 850 900 side 5:950 1000 1100 1200 1300 1400 side 6:1500 1600 1700 1800 1900 2000	50mm	SP4010
50-10000Î¼m	71(8Ã9)	side 1:50 100 150 200 250 300 350 400 450 side 2:500 550 600 650 700 750 800 850 900 side 3:1000 1100 1200 1300 1400 1500 1600 1700 1800 side 4:1900 2000 2100 2200 2300 2400 2500 2600 2700 side 5:2800 2900 3000 3100 3200 3300 3400 3500 3600 side 6:3700 3800 3900 4000 4100 4200 4300 4400 4500 side 7:4600 4700 4800 4900 5000 5100 5200 5300 5400 side 8:5500 6000 6500 7000 7500 8000 8500 9000 10000	50mm	SP4020

Take you into the Dutch TQC

The historical development of TQC company.jpg

TQC automated production and strict quality control.jpg

TQC R&D team.jpg

FAQ

QThe detection of the inner and outer wall Coating Film thickness of the construction project, this one can be used?

A Sure

QIs there an Elcometer 20~ 370μm wet film thickness gauge?

A Hello, no, but the SP4000 wet film thickness gauge of TQC in the Netherlands is the same as Elcometer and can be used instead.

QIs this the wet film thickness gauge mentioned in ISO2808?

A OK

QIs this the Coating thickness measuring card we usually use?

A Yes, it is the Film thickness card in the state of measuring Coating wet film.
