SUMSPRING CHY-U Thickness Gauge
CHY-U
sumspring CHY-U Thickness GaugeSPEC
sumspring CHY-U Thickness GaugeDetails
sumspring CHY-U Thickness GaugePacking list
- SKU
- NB033407
- Measurement range
- 0~2mm
- Resolution
- 0.1um
- Measurement speed
- 10 times/min (adjustable)
- Contact Pressure
- 17.5 +/- 1kPa (film); 100 +/- 1kPa (paper)
- Contact area
- 50Mm ² (film), 200mm ² (paper) Note: choose one of film and paper
- Injection step moment
- 0~1300 mm (adjustable)
- injection rate
- 0~120 mm/s (adjustable)
- Dimensions
- 450*340*390mm
- Weight
- 23kg
- Environmental temperature
- 15℃-50℃
- Test environment
- No vibration, no electromagnetic interference
- Relative Humidity
- Up to 80%, no condensation
- Power supply Voltage
- 220V,50Hz
Introduction

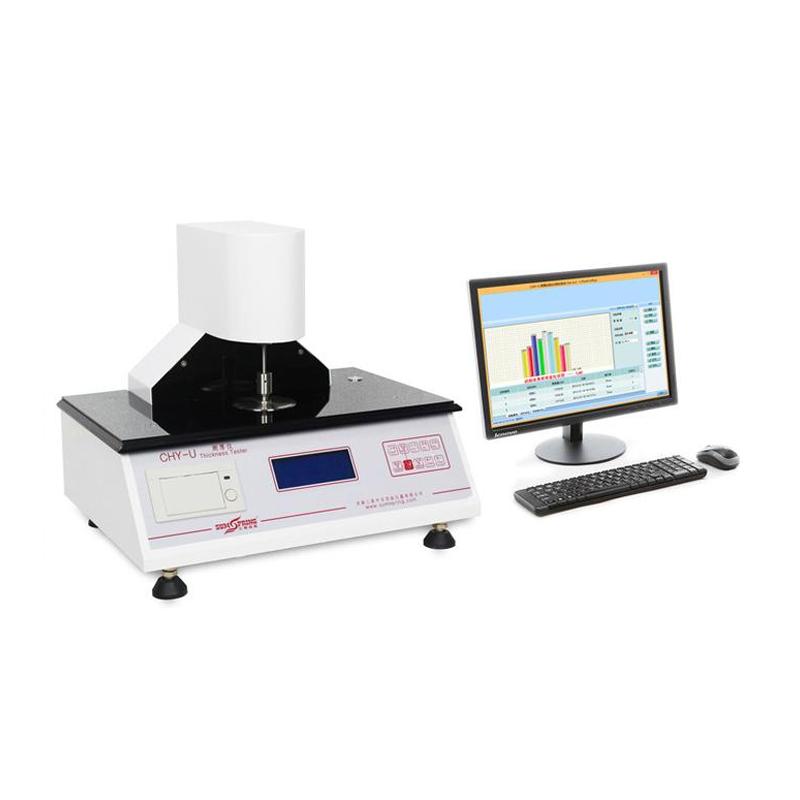

The Thickness Gauge CHY-U is suitable for accurate thickness measurement of hard and soft materials such as thin films, battery separators, solar cell silicon wafers, paper, and adhesive tapes. It is a fully automatic Thickness Gauge with accurate testing, which is widely used in quality inspection units, film manufacturers, photovoltaic factories and other units.
Test principle
The Thickness Gauge adopts the contact test principle, intercepts a certain size of sample, and the Thickness Gauge measuring head automatically lands on the specimen, relying on a fixed pressure and a fixed contact area to test the thickness value of the specimen.
Application
| Product name | Application |
| membrane | It is used for thickness measurement of soft materials such as thin films, battery separators, and capacitive film materials. |
| aluminum foil | Thickness measurement of hard materials such as metal foils. |
| Solar wafers | The contact test principle detects the thickness of each point on the solar wafer more efficiently. |
| Paper | By adjusting the measuring head, the specified pressure and area of the paper can be completed, and the thickness of various paper and cardboard materials can be completely tested. |
Technical characteristics
★ Microcomputer control, large LCD display
★ The use of sensors ensures the accuracy of the test
★ The contact area and measuring pressure are designed in strict accordance with the standard, and various non-standard customizations are supported
★ The measuring head is automatically raised and lowered, which avoids systematic errors caused by human factors
★ Manual and automatic dual measurement modes make it more convenient for customers to choose
★ Equipped with a micro printer, real-time data display, automatic statistics, printing, convenient and quick access to test results
★ Print maximum, minimum, average and each measurement result for easy data analysis
★ Up to 100 sets of test results are automatically saved and viewed and printed at any time
★ Standard gauge calibration is convenient for users to quickly calibrate the equipment
★ The Thickness Gauge is equipped with a special automatic sampler, which can realize fully automatic multi-point measurement with one button and minimal human error
★ The professional software provides graphical statistical analysis of test results, and accurately and intuitively displays the test results to users
★ Equipped with standard RS232 interface, it is convenient for external connection and data transmission between the system and the computer
Standards
GB/T 6672、GB/T 451.3、GB/T 6547、ASTM D645、ASTM D374、ASTM D1777、T APPI T411、ISO 4593、ISO 534、ISO 3034、DIN 53105、DIN 53353、JIS K6250、JIS K6328、JIS K6783、JIS Z1702、BS 3983、BS 4817
configuration
Standard configuration: Thickness Gauge host, standard gauge block, micro printer
Options: professional software, communication cables, measuring heads, counterweights, autosamplers
