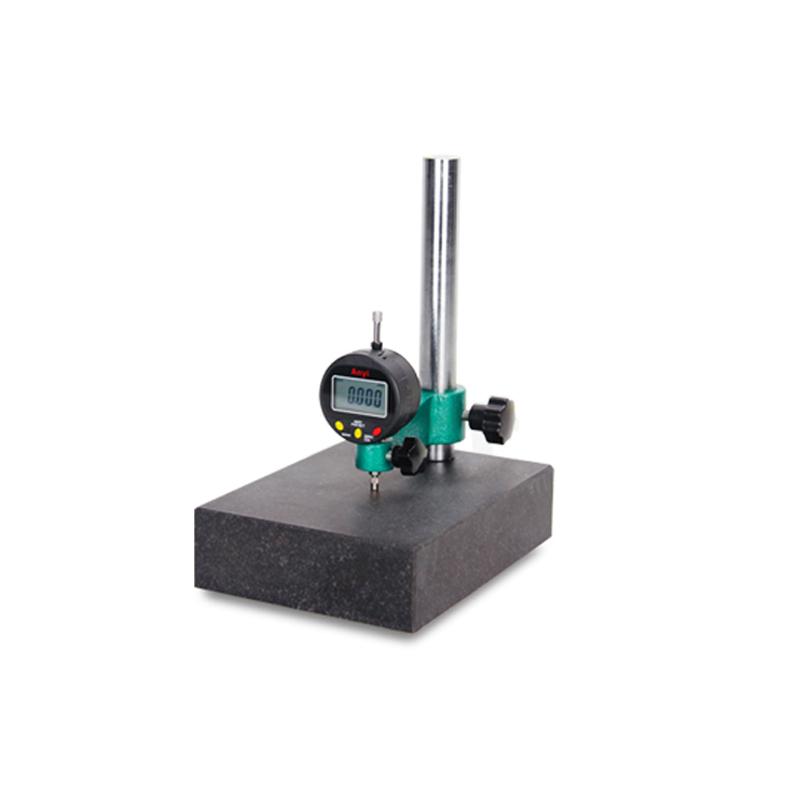

SUMSPRING CHY-5 Desktop Thickness Gauge
SUMSPRING CHY-5 desktop Thickness Gauge is mainly suitable for measurement Plastic film, foil, paper, Cardboard and other hard or soft material thickness, CHY-5 desktop Thickness Gauge Measurement range 0-12.7mm, resolution 0.001 mm, measurement head diameter 10mm (optional round head measurement head), measurement surface parallelism < 0.035mm, test table double zero grade marble table.
Model：
CHY-5
sumspring
Similar products
-
LD-HDY-B Cardboard Film thickness meter$ 424.00SE -
LD-HDY-B Cardboard Film thickness meter$ 405.00SE -
CHINA ZY-CH18 Paper and Cardboard Thickness Gauge$ 498.00SE -
YINUO YN-HDY02 corrugated fibreboard Film thickness Tester 0-20mm 0.01/0.001$ 553.00SE -
Jinan HORIZON CHY-T desktop Thickness Gauge$ 523.00SE
sumspring CHY-5 Desktop Thickness GaugeSPEC
sumspring CHY-5 Desktop Thickness GaugeDetails
sumspring CHY-5 Desktop Thickness GaugePacking list
- SKU
- NB033409
- Measurement range
- 0~12.7mm
- Resolution
- 0.001mm
- Contact surface diameter
- 10Mm (optional round head measurement head)
- Measurement plane parallelism
- ≤0.035mm
- Test Bench
- Double zero grade marble Countertop
- Dimensions
- 210*160*260mm
- Weight
- 6kg
- Environmental temperature
- 15℃-50℃
- Relative Humidity
- Up to 80%, no condensation
- Test environment
- No vibration, no electromagnetic interference
CHY-5
Desktop Thickness Gauge
Introduction
The benchtop Thickness Gauge CHY-5 is mainly suitable for measuring the thickness of hard or soft materials such as plastic film, foil, paper, cardboard, etc. It is widely used in packaging factories, paper factories, metal factories and other units.
Test principle
The principle of mechanical contact thickness measurement is to intercept a certain size of sample, and the measuring head automatically lands on the sample, and the thickness value of the sample is measured under a certain pressure and a certain contact area.
Application
| Product name | Application |
| membrane | It is used for thickness measurement of soft materials such as thin films. |
| aluminum foil | Thickness measurement of hard materials such as metal foils. |
| Solar wafers | The contact test principle of the benchtop Thickness Gauge can more effectively detect the thickness value of each point of the solar silicon wafer. |
| Paper | Changing the measuring head allows the test of the thickness of the paper and cardboard. |
configuration
Standard configuration: Thickness Gauge host, measuring head
