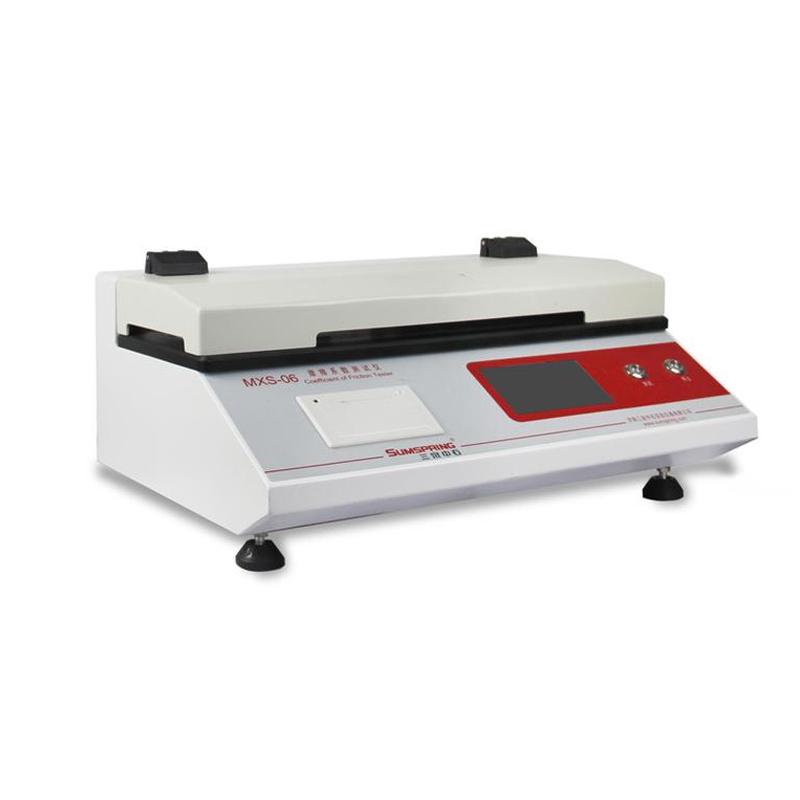

SUMSPRING MXS-06 Friction Coefficient Meter

SUMSPRING MXS-06 Friction Coefficient Meter is suitable for measurement Plastic film, sheet, rubber material, paper, coating, Coating, conveyor belt, non-woven fabric, Glass and other materials static coefficient of friction and dynamic coefficient of friction measurement, MXS-06 Friction Coefficient Meter load range 0-30N (optional), measurement error 0.5 level, stroke 70mm, 150mm (can be set), slider mass 200g, 500g.

Model：

MXS-06

sumspring

Contact

Details SPEC

sumspring MXS-06 Friction Coefficient MeterSPEC

sumspring MXS-06 Friction Coefficient MeterDetails

sumspring MXS-06 Friction Coefficient MeterPacking list

SKU: NB033414

Force range: 0~30N (optional)

Accuracy: Level 0.5

Slider stroke: 70mm、150mm

Slider Mass: 200G, 500g (different Mass sliders can be customized)

Slider traverse speed: 100 +/- 10mm/min, 150 +/- 5mm/min (1-500 mm/min speed can be adjusted arbitrarily)

Slider size: 63*63mm

Dimensions: 490*320*220mm

Weight: 23Kg

Operating temperature: 23±2℃

Relative Humidity: 50±5%RH

Power Supply: 220V,50Hz

MXS-06

Friction Coefficient Meter

Introduction

The coefficient of frictIon Meter MXS-06 is suitable for measuring the static friction coefficient and dynamic friction coefficient of plastic films, sheets, rubber materials, paper, coatings, coatings, conveyor belts, non-woven fabrics, glass and other materials, and the friction coefficient meter MXS-06 can also be used to measure the slip properties of cosmetics, eye drops, urinary catheters and other daily chemicals. It is widely used in papermaking, packaging materials, quality inspection centers and other industries.

Test principle

One of the two materials involved in the friction coefficient test is tiled on the test bench, and the other is fixed on a slider of a certain weight, and the two test surfaces are laid flat together, and the two surfaces are moved relative to each other under a certain contact pressure, and the required friction force is recorded. The coefficient of friction value is to divide the measured force by the gravity of the slider.

Application

Product name	Application
membrane	It is used to measure the static friction coefficient and dynamic friction coefficient of plastic films and sheets, and meets the national standard, American standard, ISO standard, etc.
Plastic composite film	It is used to measure the surface smoothness of composite films, coated materials, and coatings.
Paper	Measurement of static and dynamic friction coefficients on paper and cardboard.
Plastic composite tape	The coefficient of frictIon Meter tests the dynamic and static friction coefficient of the aluminum-plastic composite belt in the cable.
catheter	It is used to determine the smoothness between various urinary catheters and human simulated skin.
Eye drops	It is used to test the lubrication effect of eye drops.

Technical characteristics

★ Microcomputer control, PVC menu-based operation interface

★ The large liquid crystal displays the process curve, and the system can simultaneously measure the static friction coefficient and dynamic friction coefficient of the sample, which is convenient for users to quickly and accurately carry out the test operation

★ The test speed can be set and adjusted, and the quality of any slider can be supported, which broadens the application range

★ The instrument meets a variety of GB, ISO, ASTM test standards, and the test method can be arbitrarily selected according to customer needs

★ The instrument test table and the test slider have been degaussed and remanent magnetic testing, which effectively reduces the system test error

★ The sensing system adopts components, and the performance is stable and reliable

★ Precision ball screw drive, test speed infinitely variable speed, can meet a variety of standard requirements

★ The standing time is automatically timed to ensure sufficient contact between specimens and improve the accuracy of test results

★ The coefficient of frictIon Meter is equipped with a micro printer to quickly output experimental results

★ Professional computer testing software, which can re-analyze, store and edit up to 200 raw data

Standards

GB 10006、GB/T 17200、ISO 8295、ASTM D1894、TAPPI T816

configuration

Standard configuration: friction coefficient meter host, micro printer, 200g slider, 500g slider, test software, test cable

Optional: Counterweight slider
