GaoPin NGP40-CO Portable Multifunctional Carbon Monoxide Detection Alarm Instrument Specifications
Search
Brand：GaoPin
Model：NGP40-CO

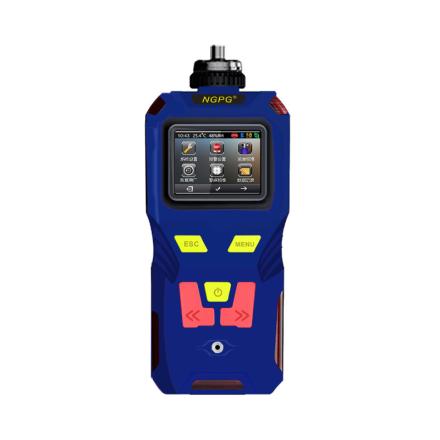

Name：Portable Multifunctional Carbon Monoxide Detection Alarm Instrument
Specifications
| Detect gas | Gas (CO) |
| Range | CO (0~1000ppm) Miscellaneous range can be customized |
| Resolution | CO (1ppm) higher resolution available |
| Sensors principle | Electrochemistry |
| Sensors Life | 2-3 years |
| Sampling method | pump suction |
| Display mode | 2.4 inch 320X240 high definition color screen display, 5 button operation |
| Detection Accuracy | ≤±3%（F.S） |
| Linearity | ≤±2% |
| Repeatability | ≤±2% |
| Response time | T90≤20s |
| recovery time | ≤30s |
| Power Supply | DC3.6V |
| Alarm mode | Sound and light alarm, vibration alarm, visual alarm, sound and light + vibration + visual alarm, turn off alarm optional |
| Battery Capacity | 3.6VDC, 4500mA large Capacity rechargeable polymer battery, with overcharge, overdischarge, overVoltage, overheating, short circuit protection function |
| Operating Environment | Temperature -40 ℃~ + 60 ℃; Relative Humidity ≤ 0-99% RH (Built-in Filter can be used in high Humidity or high dust environment) |
| Sample temperature | -40 ℃~ + 70 ℃, optional high temperature sampling cooling filtrate handle, can detect the flue gas concentration of 600 degrees or higher temperature |
| Temperature measurement | -40 ℃~ + 120 ℃ (optional) Accuracy 0.5 ℃ |
| Humidity measurement | 0-100% RH (optional) Accuracy 3% RH |
| Data storage | Standard 100,000 data Capacity, support local real-time view, delete or data export, free host computer communication software storage function defaults to off state, can be set to open state, storage time interval can be set arbitrarily |
| Interface | USB (charging and communication), optional RS485 or RS232 Communication interface |
| interface language | Chinese or English can be set, the default Chinese interface |
| Explosion-proof method | Intrinsically safe |
| Explosion-proof sign | Exia II CT4 Ga |
| Protection level | IP65, dustproof, splash-proof |
| Dimensions | 160*70*28mm |
| Weight | 300g |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/33429/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
