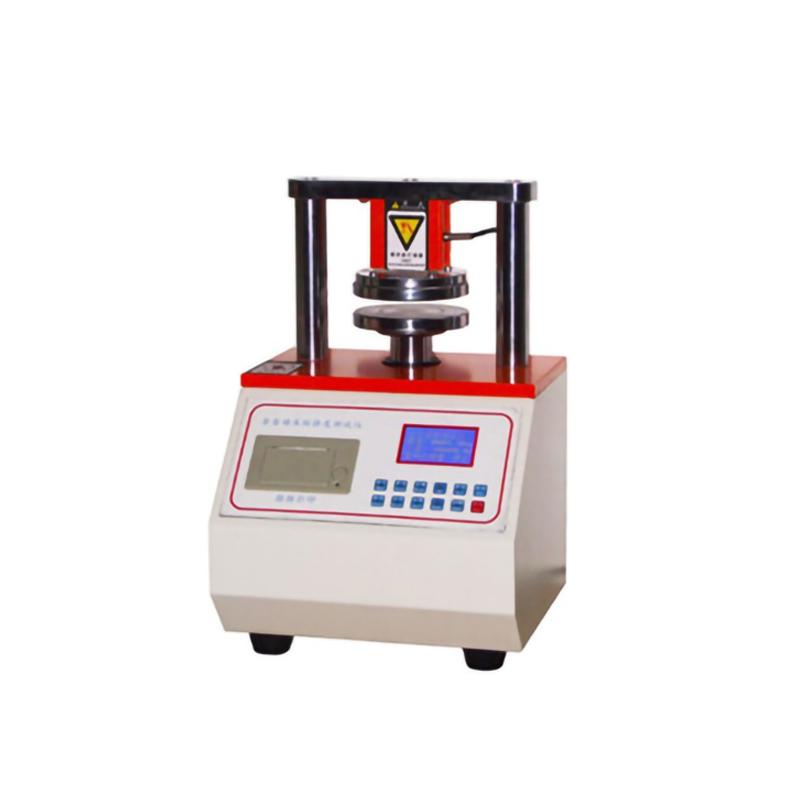

ZHONGNUO YSD-03 Electronic Compression Tester
YSD-03
zhongnuo YSD-03 Electronic compression TesterSPEC
zhongnuo YSD-03 Electronic compression TesterDetails
zhongnuo YSD-03 Electronic compression TesterPacking list
- SKU
- NB033434
- Force range
- 0~3000N
- Indication Accuracy
- ±1%
- Upper and lower pressure plate size
- Φ120mm
- Analysis
- 1/10000
- Pressurization speed
- 12.5±2.5mm/min
- Dimensions
- 390*350*690mm
- Weight
- 56Kg
- Environmental temperature
- 15℃-50℃
- The highest Relative Humidity
- 70% RH
- Power supply Voltage
- 220V 50Hz
Applications
Electronic compression Tester YSD-03 is suitable for the determination of physical properties such as ring compression strength, edge compression strength, adhesive peel strength, and flat compression strength of corrugated cardboard and paper. The instrument adopts microcomputer control system, one-button operation of the test process, with different test fixtures to complete different test requirements, electronic compression Tester is a high-performance multi-purpose comprehensive testing instrument, which is widely used in papermaking enterprises, packaging enterprises, testing institutions and other units.
Application
Cardboard --- used for the determination of edge compression strength and adhesive peel strength of corrugated cardboard and cartons.
Paper --- is used for ring compressive strength testing of various papers.
Technical characteristics
★ Microcomputer processing system, PVC control panel, convenient for users to use
★ Automatic measurement, intelligent judgment of experimental results, automatic return, high degree of automation
★ The microcomputer collects data within the pressure value, and its calculation speed is high
★ Micro printer printout, convenient for fast data output
★ Directly input the grammage and size, directly output the strength result, convenient and simple operation
★ Synchronous motor drive is adopted, which is stable and accurate, making the output pressure more accurate
★ Liquid crystal display effective value: 4 digits
The principle of the test
The specimen is clamped between the two chucks of the compressor fixture, the two chucks move relatively, and the force value change and displacement change in the test process are collected through the force value sensor located at the dynamic chuck and the displacement sensor built in the machine, so as to calculate the strength performance index of the sample.
Standards
GB/T 22874、GB/T 2679.6、GB/T 2679.8、GB/T 6546、GB/T 6548、ISO 7263、ISO 12192、TAPPI T843、TAPPI T809、TAPPI T821、TAPPI T825、TAPPI T822
configuration
Standard configuration: main unit, micro printer
Options: Ring pressure sampler, ring pressure center plate, side pressure sampler, side pressure guide block, flat pressure sampler, adhesive peel bracket.
