ZHONGNUO MXD-01 Coefficient of Friction Tester

ZHONGNUO MXD-01 Coefficient of Friction Tester is suitable for the measurement of film and sheet, rubber, Cardboard and other materials when sliding the static coefficient of friction and dynamic coefficient of friction, MXD-01 Coefficient of Friction Tester slider size 63x63mm, table size 150x220m, load range 0~5N, accuracy level 1, stroke 70, 150mm.
Model：
Contact
Details SPEC

zhongnuo MXD-01 Coefficient of Friction TesterSPEC

zhongnuo MXD-01 Coefficient of Friction TesterDetails

zhongnuo MXD-01 Coefficient of Friction TesterPacking list

SKU
NB033450
Slider size
63*63mm
Work surface size
150*220mm
Force range
0~5N
Accuracy
Level 1
Slider stroke
70mm、150mm
Slider Mass
200g
Slider traverse speed
100mm/min
Environmental requirements
temperature
Power supply Voltage
AC 220V 50Hz
Dimensions
470*310*200mm
Net Weight
15kg
MXD-01
Coefficient of Friction Tester

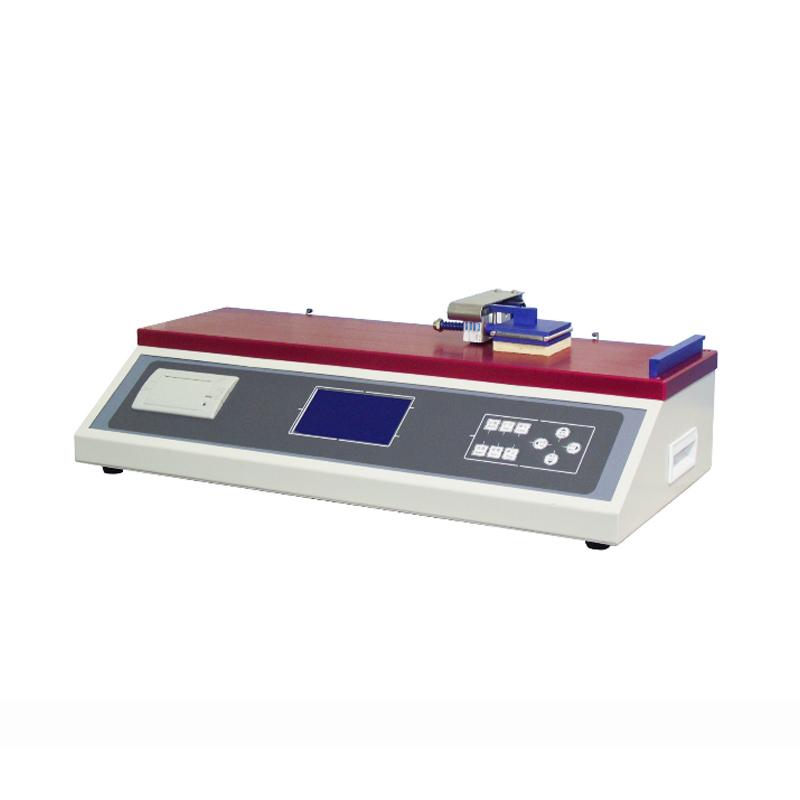

ZHONGNUO MXD-01 Coefficient of Friction Tester Picture

Applications

The coefficient of friction Tester MXD-01 is suitable for measuring the coefficient of static friction and dynamic friction coefficient when materials such as film and sheet, rubber, cardboard, woven bag, fabric style, metal material composite belt, conveyor belt, wood, coating, brake pad, wiper, shoe material, tire and other materials slide. By measuring the slip properties of the material, the quality and process indicators of the material production can be controlled and adjusted to meet the requirements of product use. In addition, it can also be used to measure the slip properties of cosmetics, eye drops and other daily chemical products. The equipment implements ISO 8295, GB 10006, ASTM D1894, TAPPI T816 and other standards.

Features

★ Microcomputer control, large LCD display data, results,

★ Full Chinese menu-based interface, PVC operation panel

★ Simultaneous detection of dynamic and static friction coefficients

★ It can be connected to a computer friction coefficient meter

★ The static time is automatically timed, and the dynamic and static friction coefficients are automatically cleared to ensure sufficient contact between the specimens and improve the accuracy of the test results

★ The instrument test bench and test slider have been degaussed and remanent magnetic testing, which effectively reduces the system test error

★ Equipped with a micro printer to automatically print test reports for single pieces or groups of specimens
