Germany erichsen 295/XII paint finish Cross Hatch Cutter 1mm/1.5mm pitch
erichsen 295/XII
Erichsen erichsen 295/XII Cross-cut knifeSPEC
Erichsen erichsen 295/XII Cross-cut knifeDetails
Erichsen erichsen 295/XII Cross-cut knifePacking list
- SKU
- NB033478
- Tooth spacing
- 1mm、1.5mm
- Instrument material
- stainless steel
- Handle material
- plastic
- Cutter head material
- stainless steel
- Application standard
- VDA 621-411、EN ISO 2409、ASTM D 3359、JIS K 5600-5-6、EN 13523-6
- number of blades
- 1
The Erichsen295 lacquered scratch cutter meets all mark test criteria. It consists of a plastic handle and a cutter head mounted on it, which can be adjusted to the most comfortable position for the operator. Different types of bits are available, and an EN ISO 2409 compliant tape is available.

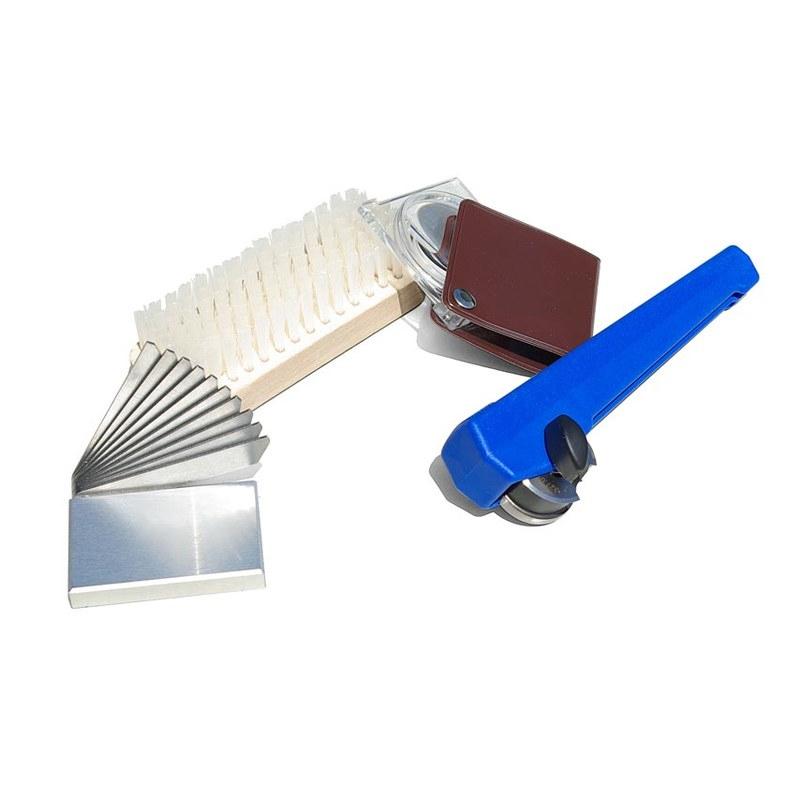

The Erichsen295 scratching instrument is supplied in a complete range of products, including a cutter head mounted on a plastic handle. It comes in a sturdy plastic carrying case, and also contains a nylon brush and a 2.5x magnifying glass. For the 295/III single-edged bits, a folding ruler is also available. The instrument also comes with a manufacturer's certificate M.
Comparison of the parameters of the Erichsen griddle series
standard | Film thickness | Knife size x spacing(mm) | Model |
ISO 2409 EN ISO 2409 JIS K 5600-5-6 | Up to 60 μm 60~120μm 120~250μm | 6 x 1 | 295/I, 295/IX, 295/III, 295/XII, 295/XIII |
6 x 1 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
6 x 2 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
6 x 3 | 295/VII, 295/XI, 295/XII, 295/XIII | ||
EN 13523-6 (formerly ECCA-T6) | Up to 60 μm 60μm | 6 x 1 | 295/I, 295/IX, 295/III, 295/XII, 295/XIII |
2 x 5 | 295/IV, 295/III, 295/XII, 295/XIII | ||
VDA 621-411 | Up to 60 μm 60~120μm >120 μm | 6 x 1 | 295/I, 295/IX, 295/III, 295/XII, 295/XIII |
6 x 2 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
6 x 3 | 295/VII, 295/XI, 295/XII, 295/XIII | ||
ASTM D 3359 | Up to 50 μm 50μm~125μm | 11 x 1 | 295/V, 295/III, 295/XII, 295/XIII |
6 x 2 | 295/II, 295/X, 295/III, 295/XII, 295/XIII | ||
DBL 5416 | It does not depend on the film thickness | 6 x 1.5 | 295/XII |
ISO 2409-1972 BS 3900:E NFT 30-038 | Conventions | 11x2 | 295/VI |
1. After 1994, the European standard ENISO2409 replaced the national standard DIN53151, BS3900:E6, NFT30-38, NEN5337 and SIS184172.
2. After the scratch test, you can also do a deep drawing test (ENISO1520). Deep drawing experiments can be performed with the following instruments:
ERICHSEN CUP-CONVEX TESTER, MODEL 200, 202, 202C OR 204
Complies with ASTMD3359 impact test set 304ECCA
3. on soft substrates.
4. on hard substrates.
