Defelsko SPGCS3 Advanced Surface Profile Roughness Gauge Texture Coating
SE
Advanced SPGCS3-E
Defelsko Advanced SPGCS3-E Surface profile measuring instrumentSPEC
Defelsko Advanced SPGCS3-E Surface profile measuring instrumentDetails

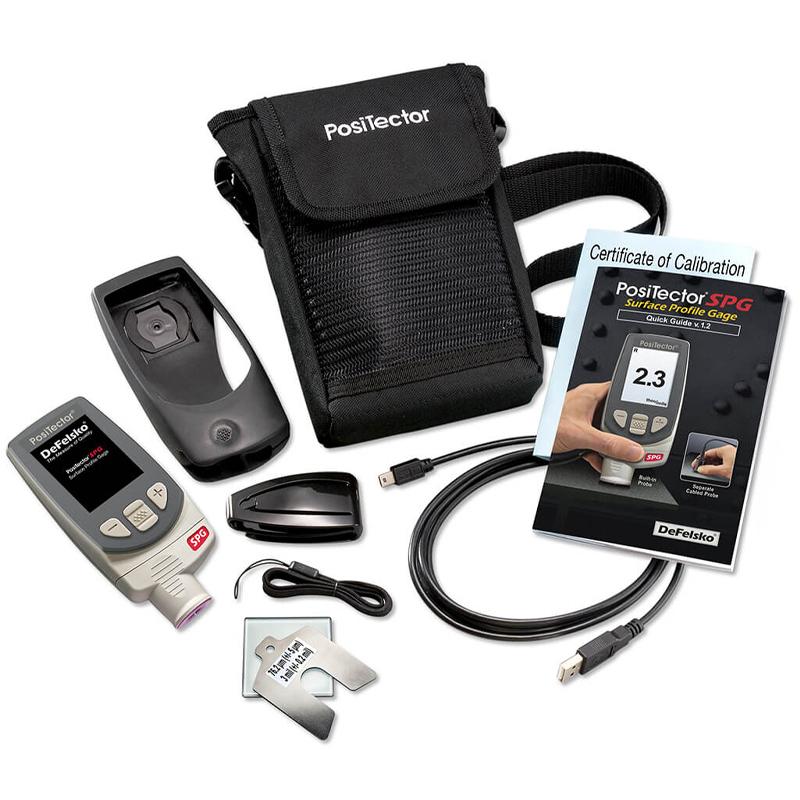

Defelsko Advanced SPGCS3-E Surface profile measuring instrumentPacking list
- SKU
- NB003348
- Display mode
- digital display
- Measurement range
- 0~1500μm(0~60mils)
- Error of indication
- ± (5 μm + 5%) ± (0.2mil + 5%)
- Sensors - Radius
- 500µm
- Sensors - Angle
- 60°
- Measurement profile
- Surface roughness profile
- Data storage
- 100,000 readings
- Interface
- USB
- Power
- 3 * Battery
- Dimensions
- 137*61*28mm
- Product Weight
- 140G (without battery)
- Applicable standards
- ASTM D4417-B、AS 3894.5-C、 U.S. Navy NSI 009-32、SANS 5772等
- type
- Advanced

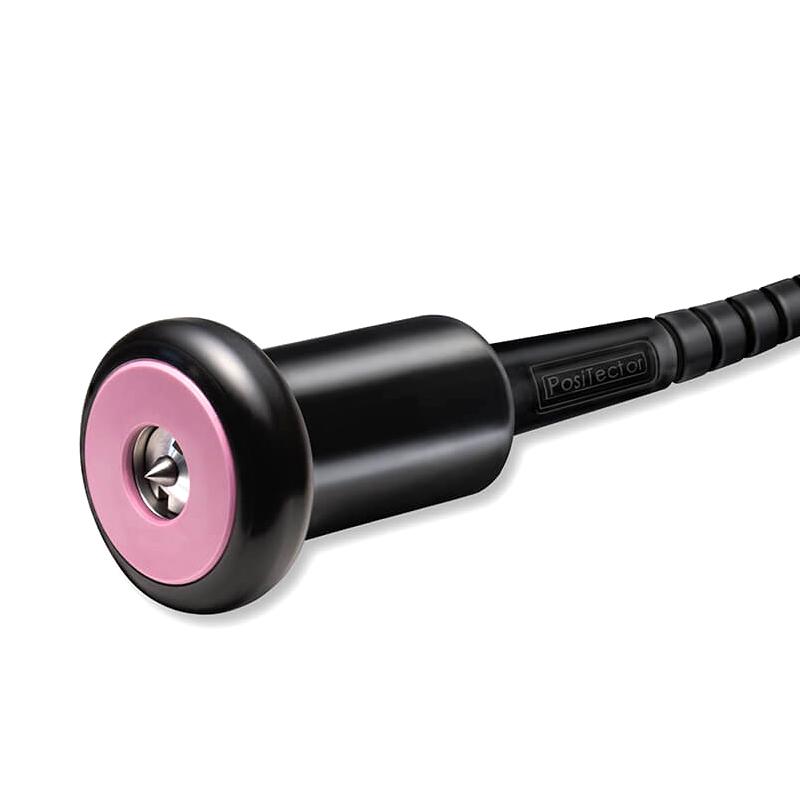

- Probe type
- PRBSPGCS split
- application
- Texture Coatings
Overview of the SPGCS3 Surface Profile Gauge
According to the different range and structure, Defelsko divides the SPG surface profile roughness Tester into three small series of SPG, SPGS, and SPGCS surface profile roughness Testers.SPGCS3The SPG CS series is an advanced model with a split structure and a wide measurement range (0~1500μm). The SPGCS3 surface profile roughness meter is suitable for measuring the surface roughness of textured coatings with a radius of 500 μm.
The advantages of SPGCS3 surface profile roughness Tester are presented
Features of SPGCS3 Surface Profile Roughness Tester:
1) AdoptionAlumina wear surface and tungsten carbide stylus tip for long life and continuous accuracy
2) One-handed operation, navigational menu interface
3) The shell has a high level of protection and can be preventedSolvents, acids, oils, water and dust – weatherability
4) It can be connected to Positector software for data management, etc
5) 100,000 measurement readings can be stored, up to 1,000 batches and sub-batches
6) SmartBatch™ allows users to add custom parameters and standards to meet different standards and test methods
7) WiFi Technology- Sync wirelessly toPosiSoft.net, download software updates and connect to mobile devices for more extended functionality
8) Bluetooth wireless technology can be used to transfer data to PC goods and other portable printers
9) Real-time graphics, picture reminders and batch recording
10) Wide host compatibility
Comparison of parameters of the Defelsko Positector SPG series
| Model | SPG | SPG S | SPG CS |
 |  |  | |
| Standard model | SPG1 | SPG S1 | SPG CS1 |
| Premium model | SPG3 | SPG S3 | SPG CS3 |
| probe | PRBSPG | PRBSPGS | PRBSPGCS |
| apply | Sandblasted steel | Textured paint | |
| Measuring range | 0~500 μm (0~20 mils) | 0~1500 μm (0~60 mils) | |
| precision | ± (5 μm+5%) ± (0.2mil+5%) | ||
| Stylus end angle | 60 degrees | 60 degrees | |
| Stylus end radius | 50μm (2mils) | 500μm (20mils) | |
