Brand：PuYun
Model：PY-J633

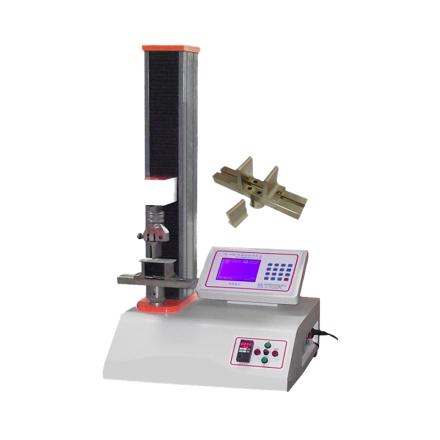

Name：Paper Cardboard Film Three Point Bending Stiffness Tester
Specifications
| load cell | High-Precision Force Sensors |
| Capacity selection | 300KG |
| Accuracy class | Level 1 |
| Test force test range | 0.4%~100%FS |
| Force Accuracy | +/- 1% or less |
| Displacement error of indication | +/- 1% of indication |
| Displacement resolution | 0.01mm |
| Measurement range | 2%~100%FS |
| Limit of indication error | +/- 0.5% of the indication |
| Measurement range | (10~600)mm |
| Limit of indication of large deformation error | +/- 1% of indication |
| Transmission mode | High-precision variable frequency motor |
| Transmission coupling | Forged for high carbon steel, good mechanical strength performance, no change |
| Transmission screw | Adopting Taiwan, China single-column structure precision ball screw |
| Test speed | 4 gears fixed adjustable speed change, first gear (5~ 5000) mm/min stepless speed change |
| Speed Accuracy | +/- 1% of the indication |
| Fixture processing | All fixtures are made of hard chrome Eletroplating, HRC55 or higher |
| Body surface preparation | Adopt DuPont powder, electrostatic spray painting process, high temperature 200 ℃ curing to ensure long-term fading |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
