Puyun PY-J632 Cup body stiffness Tester 0-20N

SE
Puyun PY-J632 cup body stiffness Tester is suitable for paper cup manufacturers, mass supervision bureaus, university scientific research structures and other units to use, PY-J632 cup body stiffness Tester measuring range 0-20N, indication accuracy measurement accuracy is greater than ± 1%, paper cup diameter 50-150mm.
$2216.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

PuYun PY-J632 Cup stiffness TesterSPEC

PuYun PY-J632 Cup stiffness TesterDetails

PuYun PY-J632 Cup stiffness TesterPacking list

SKU
NB033496
Measuring range
0~20N
Paper cup diameter
50~150mm
resolution
Stress resolution greater than 0.01N
Error of indication
Measurement Accuracy greater than ± 1%
Test speed
50±2.5mm/min
deformation
9.5±0.5mm
Probe spherical size
Spherical radius 5mm
Axial deviation
Less than 0.2mm
Measurable paper Cup height
30-150
Power
220V 50Hz
Dimensions
650*320*400mm
Weight
About 44kg
Operating Environment
Temperature (20 ± 15 ℃), humidity < 85%
PY-J632
Cup stiffness Tester

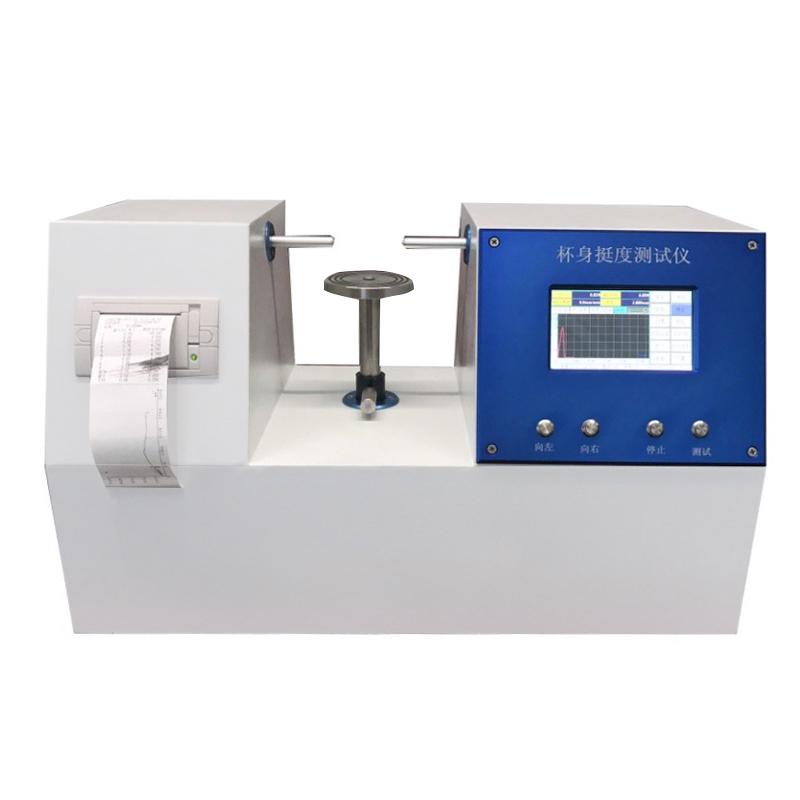

Puyun PY-J632 Cup body stiffness Tester 0-20N Picture

Introduction

The cup body stiffness Tester is a special instrument specially designed to test the strength of the cardboard cup body, mainly to control the physical quality of the paper cup through testing. It is suitable for use by paper cup manufacturers, quality supervision bureaus, university scientific research institutions and other units.

Standards

GB/T 27590, QB/T 2294-1997, JJG157-1995

Features

1. Microcomputer processing system, aluminum alloy sandblasting control panel, touch screen LCD display

2. Fully automatic electronic testing equipment, easy to use and wider testing range

3. One-key operation during the experiment to avoid human error

4. Computer measurement and control can automatically judge the initial test state

5. Built-in tray automatic lifting function, high degree of automation

6. Double measuring head structure design, more accurate test data

7. Test with real-time curve function

8. Micro printer, print test data at any time


FAQ
QOur factory mainly produces disposable paper cups. I want to find an instrument to test the strength of the cup body. Do you have any recommendations?
A PY-J632 cup body stiffness tester is specially designed for paper cup body strength detection, in line with the national standard GB/T 27590 and other standards, can effectively control the physical mass of paper cups. The instrument adopts microcomputer processing system and Touchscreen, one-click operation, can automatically judge the starting state and built-in tray lifting, Degree of automation is high, very suitable for paper cup manufacturers for mass control.
QQuality inspection organization, we need to test the stiffness of various specifications of paper cups, is this instrument suitable?
A Measurement range of the PY-J632 cup body stiffness tester covers 0~ 20N, the diameter of the paper cup is suitable for 50~ 150mm, and the height can be measured 30-150mm, which can handle a variety of paper cups. It adopts dual measurement head design, the test data is more accurate, and the built-in micro-printer can print the results at any time, which is very suitable for mass supervision bureaus and other institutions for standardized testing.
