TQC SP4010 hexagonal WFT gauge, range: 25-2000 microns, six-sided Wet Film Comb gauge

SE
Range of 25~ 2000μm, accuracy +/- 25μm, material stainless steel, Appearance size is about 50mm.
Model：
Certificate
Contact
Details SPEC VIDEO OI
Similar products

TQC sheen SP4010 Wet Film Thickness GaugeSPEC

TQC sheen SP4010 Wet Film Thickness GaugeDetails

TQC sheen SP4010 Wet Film Thickness GaugePacking list

SKU
NB000335
SP4010
Wet Film Thickness Gauge
Range of 25~ 2000μm, accuracy +/- 25μm, material stainless steel, Appearance size is about 50mm.

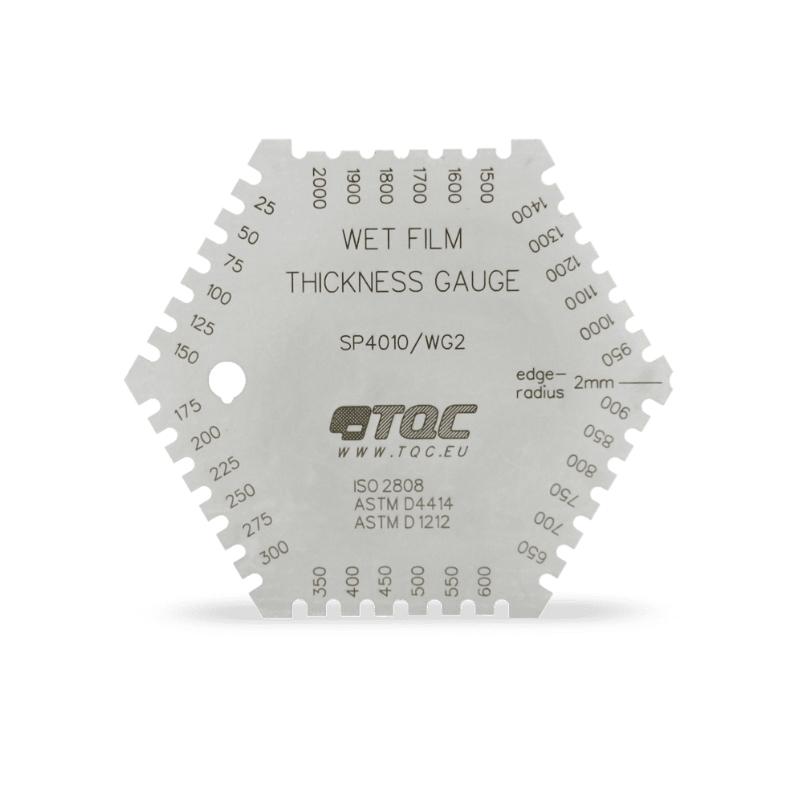

TQC SP4010 hexagonal WFT gauge, range: 25-2000 microns, six-sided Wet Film Comb gauge Picture

TQC SP4000 hexagonal wet Film Thickness Gauge operation animation video

Introduction

The TQC brand SP4000 hexagonal wet film comb is very popular in CHINA and has gradually become prominent among many instruments for measuring pigment wet film thickness due to its low price and good measurement results. This pigment wet Film Thickness Gauge is a hexagonal type of TQC brand. It is an accurate gauge and is light, portable and easy to operate. The pigment wet Film Thickness Gauge made of good stainless steel will not be affected by corrosion from acid and alkali components, is highly precise and durable.

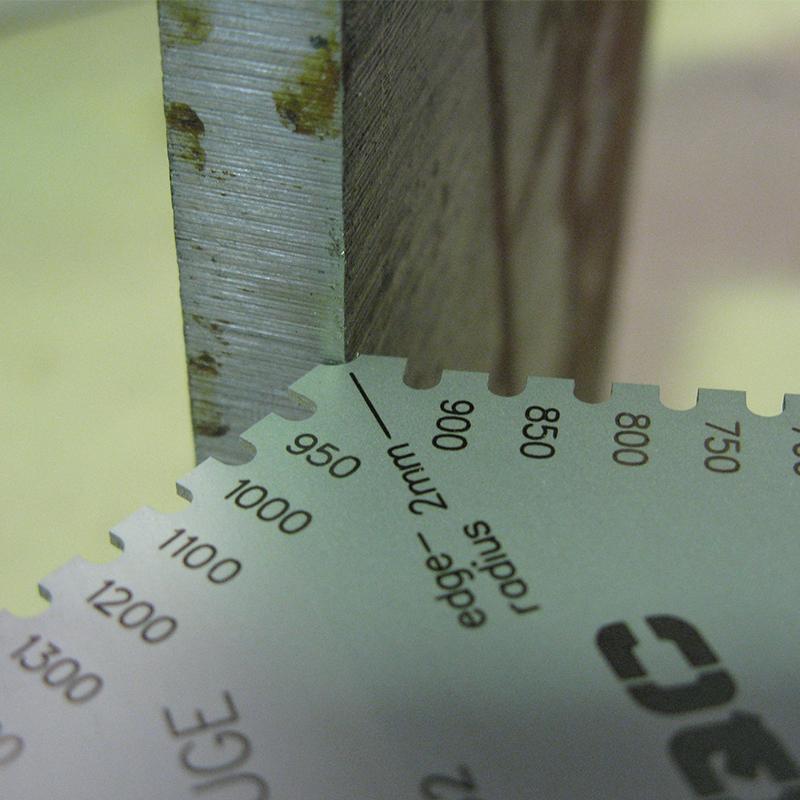

SP4010 hexagonal wet Film Thickness Gauge display picture 1

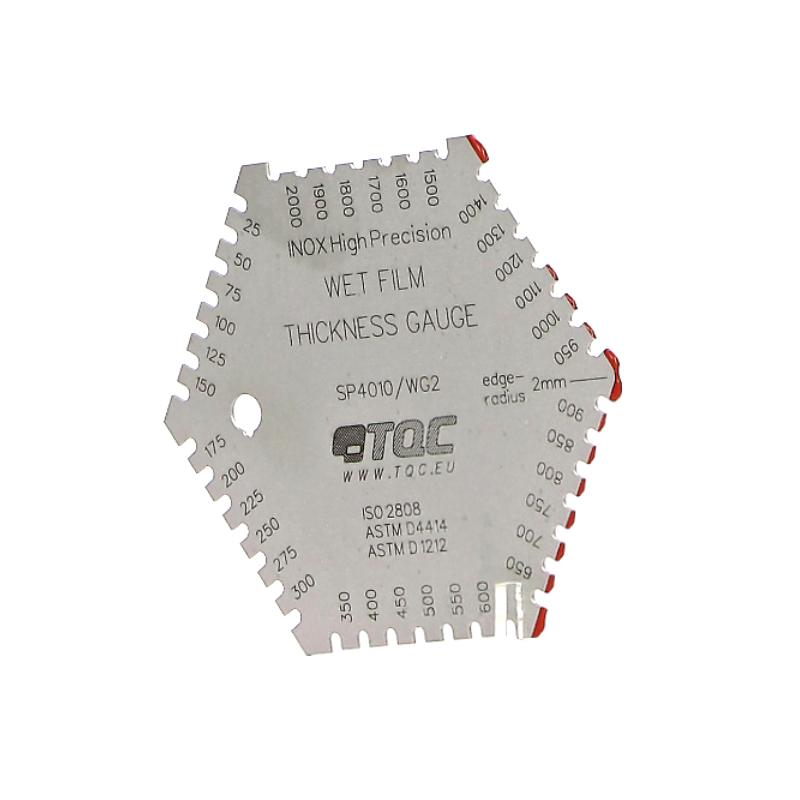

SP4010 hexagonal wet Film Thickness Gauge display picture 2

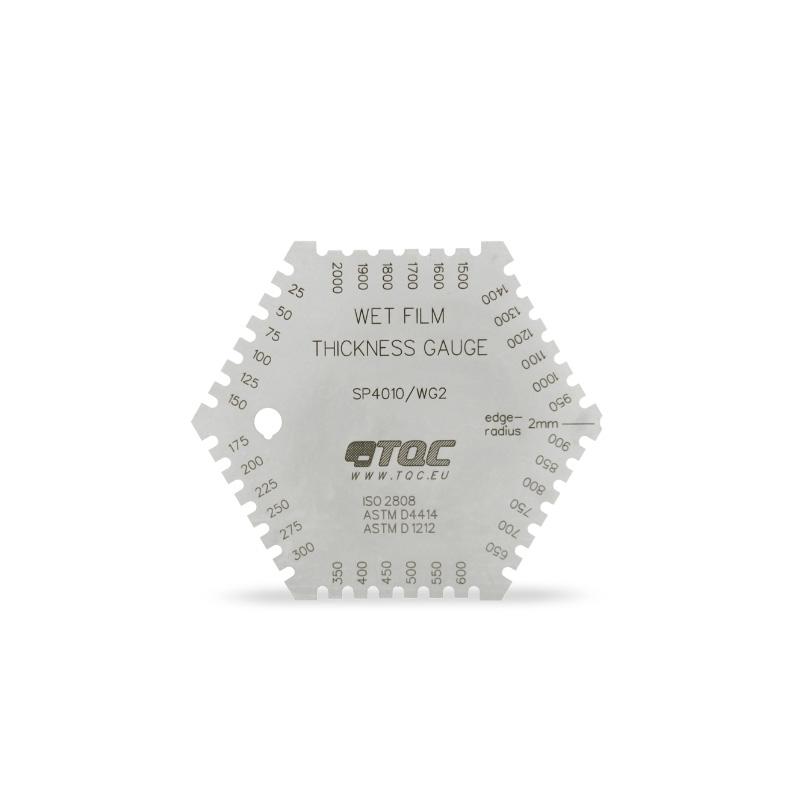

SP4010 hexagonal wet Film Thickness Gauge display picture 3

SP4010 hexagonal wet Film Thickness Gauge display picture 4

SP4010 hexagonal wet Film Thickness Gauge display picture 5


Specifications

modelMeasuring rangediameterMaterialAccuracy
SP401025-2000 micron50mmStainless steel25 micron

Applicable scope of wet film thickness measuring gauge

20-370 microns for decorative coatings and primers.

25-2000 micron for protective coatings, high solids adhesive with corner radius calibration (2mm).

50-10,000 microns, used for thicker coatings like floor coatings, fillers, fireproofing treatments, gypsum plasters, adhesives, etc.

Product details

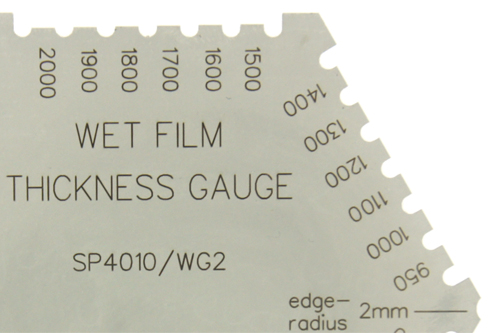

Detail of TQC SP4010 hexagonal wet Film Thickness Gauge

Operation guide chart

SP4010 Hexagonal Wet Film Thickness Gauge Operation Instructions

Series models of wet Film Thickness Gauges

modelMeasuring rangeseriesAccuracydiameterMaterial
SP400020-370µm24 (6×4) hexagons10µm50mmStainless steel
SP401025-2000µm36 (6×6) hexagons25µm50mmStainless steel
SP402050-10000µm71 (8×9) octagon50µm50mmStainless steel

Wet Film Thickness Gauge Specification Details

|| SP4000

WG-I wet Film Thickness Gauge 20-370 microns, 24 scales (hexagonal, 4 scales on each side)

|| SP4010

WG-II wet film thickness measuring gauge 2000 microns, 36 scales (hexagonal, 6 scales on each side), engraved with 2mm scale lines

|| SP4020

WG-III Wet Film Thickness Gauge 50-10000 microns, 71 scales (octagonal, 9 scales on each side)

Graduation: 0-900 range is 50µm; 900-5500 range is 100µm; 5500-9000 range is 500µm.

Measuring range

series

Accuracy

diameter

model

20-370μm

24(6×4)

side 1:20 30 40 50

side 2:60 70 80 90

side 3:100 110 120 130

side 4:150 170 190 210

side 5:230 250 270 290

side 6:310 330 350 370

50mm

SP4000

25-2000μm

36(6×6)

side 1:25 50 75 100 125 150

side 2:175 200 225 250 275 300

side 3:350 400 450 500 550 600

side 4:650 700 750 800 850 900

side 5:950 1000 1100 1200 1300 1400

side 6:1500 1600 1700 1800 1900 2000

50mm

SP4010

50-10000μm

71(8×9)

side 1:50 100 150 200 250 300 350 400 450

side 2:500 550 600 650 700 750 800 850 900

side 3:1000 1100 1200 1300 1400 1500 1600 1700 1800

side 4:1900 2000 2100 2200 2300 2400 2500 2600 2700

side 5:2800 2900 3000 3100 3200 3300 3400 3500 3600

side 6:3700 3800 3900 4000 4100 4200 4300 4400 4500

side 7:4600 4700 4800 4900 5000 5100 5200 5300 5400

side 8:5500 6000 6500 7000 7500 8000 8500 9000 10000

50mm

SP4020

Take you into the Dutch TQC

The historical development of TQC company

TQC automated production and strict quality control

TQC R&D team

FAQ
QFind a wet film thickness gauge for JJF1484
A This SP4010 wet film thickness gauge is.
QThis hexagonal wet film comb, I want the accuracy to be 10um, is there a cash sale?
A Hello, the SP4000 hexagonal wet film comb is available for cash sale, and the accuracy is 10um, which meets your requirements. Thanks for your consultation!
QCan the 75 micron one be used?
A You can consider changing a small amount of model. You can search for wet film gauge in the upper right corner, or contact customer service again.
QWe want to measure Printing ink Film thickness on Glass.
A Dear, if your measurement is wet film, it is OK. If your measurement is the thickness of dry film, you need to choose Ultrasonic Thickness Gauge separately.
