DOHO YMG60S 60 ° Miniature Glossiness Meter

DOHO YMG60S 60 ° Miniature Glossiness Meter uses a smaller bottom contact area to facilitate the measurement of convex curved surfaces and small area objects, YMG60S 60 ° Miniature Glossiness Meter Measurement angle 60 °, Measuring Area (mm) 60 °: 4mm, measurement range 60 °: 0~1000GU, Graduation 0.1GU.
Model：
Contact
Details SPEC

DOHO YMG60S 60 ° Miniature Glossiness MeterSPEC

DOHO YMG60S 60 ° Miniature Glossiness MeterDetails

DOHO YMG60S 60 ° Miniature Glossiness MeterPacking list

SKU
NB033541
Product model
YMG60S 60 ° Economy Miniature Glossiness Meter
Measurement angle
60°
Measuring Area
60°:4mm
Measurement range
0~200GU
Graduation
0.1GU
Measurement mode
Basic mode
Measurement time
0.5s
Repeatability
0~100GU:±1GU ;    100~200GU:±0.5%GU
Accuracy
Meet JJG 696 secondary glossmeter requirements
Automatic shutdown time
180 seconds
Long time calibrated
Manual calibration
language
Simplified Chinese
store data
none
Display
2.3 inch black and white display
Dimension
67X46X13mm
Weight
About 90g (without battery)
Power Supply
1 AA alkaline battery (AA alkaline battery or nickel-metal hydride rechargeable battery), can be measured more than 10,000 times
Interface
/
PC software
none
Temperature range
0~40℃（32~104°F）
Storage temperature
-20~50℃
Relative Humidity
< 85% RH, no condensation
Standard Accessories
Calibration plate
Optional Accessories
micro printer
YMG60S
60 ° Miniature Glossiness Meter

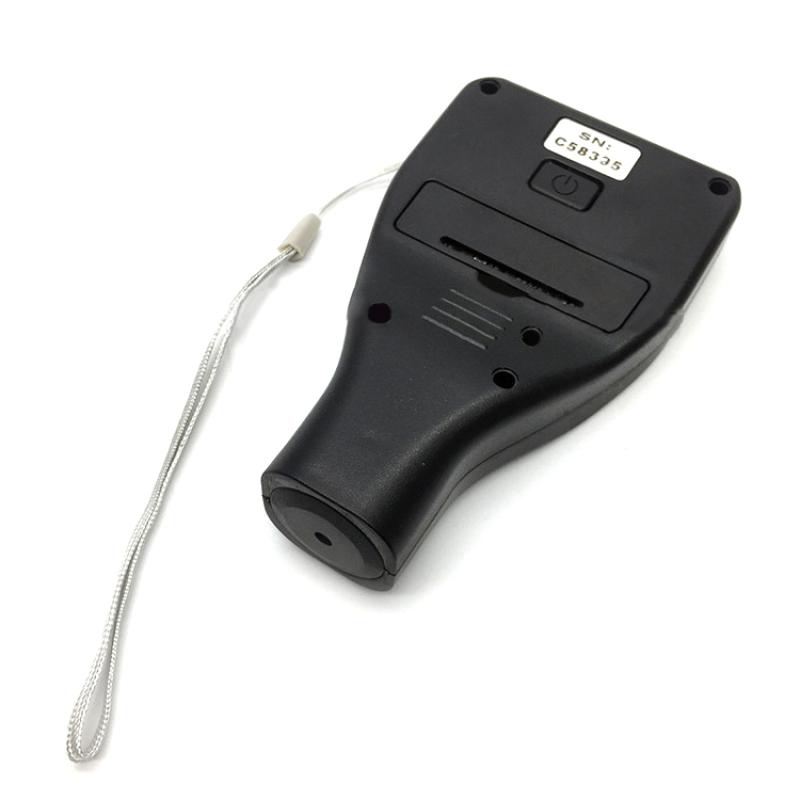

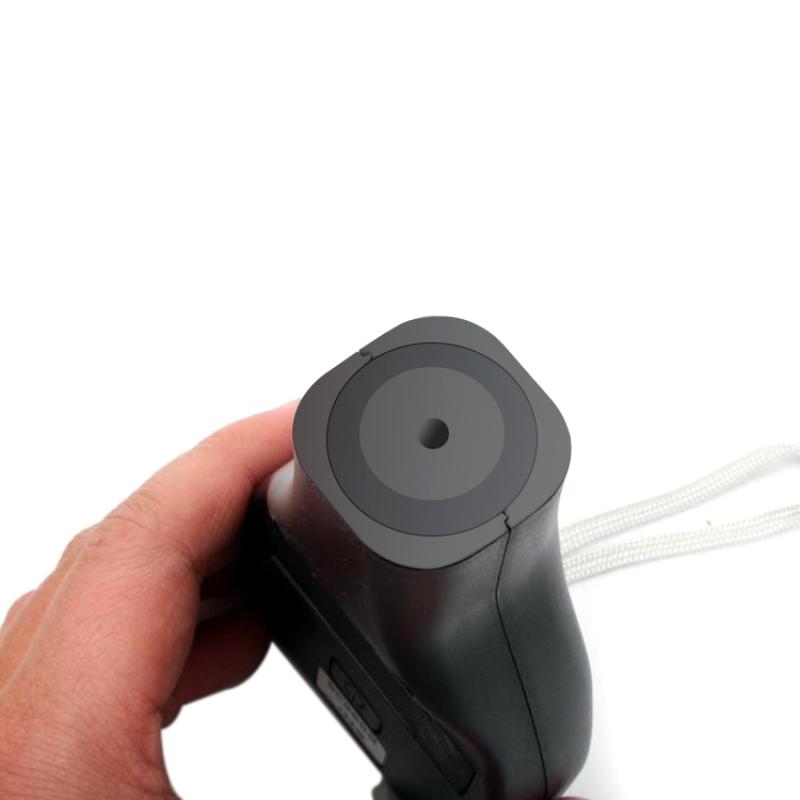

DOHO YMG60S 60 ° Miniature Glossiness Meter Picture

Introduction

YMG60S 60° micro gloss meter uses a smaller bottom contact area to facilitate the measurement of convex surfaces and small area objects, which can be used for gloss measurement and quality inspection in paint ink, coatings, plastic electronics, furniture, ceramics, electroplating, hardware and other industries.

Features

1. Smaller contact area is convenient for measuring convex surfaces and small area objects;

2. It can measure certain concave objects that are impossible to measure by traditional gloss meters, such as the inside of pipes and so on.

3. The control method is more conducive to the ergonomic design of the control of the measurement position;

4. The display screen has a 10° inclination angle, which is easy to view
