LD-TD-A Paper Cardboard Bending Stiffness Tester

SE
7.5 ° and 15 ° stiffness test, 6 kinds of bending length test can be carried out, suitable for measuring the bending stiffness of Film thickness less than 3mm Paper, Cardboard and other sheet-like non-metallic materials.
$1585.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

JingHuaYiQi LD-TD-A Paper Cardboard Bending Stiffness TesterSPEC

JingHuaYiQi LD-TD-A Paper Cardboard Bending Stiffness TesterDetails

JingHuaYiQi LD-TD-A Paper Cardboard Bending Stiffness TesterPacking list

SKU
NB033551
Measuring range
15 ~ 10000mN
Film thickness measurement
（0-3）mm
resolution
0.1mN
Indication of variability
≤1%
bending length
50mm、25mm、20mm、15mm、10mm、5mm(±0.1mm)
Bending angle
Adjustable from 0 to 90℃, commonly used (15 ± 0.3) ℃, (7.5 ± 0.3) ℃
Load arm length
200°±20°/min
printout
Modular integrated thermal printer
Display
5.7In LCD display with Linear dispersion diagram
printout
Thermal printer
Operating Environment
Temperature (20 ± 10) ℃, humidity < 85%
Dimensions
340*330*340mm
Weight
15kg
LD-TD-A
Paper Cardboard Bending Stiffness Tester
7.5 ° and 15 ° stiffness test, 6 kinds of bending length test can be carried out, suitable for measuring the bending stiffness of Film thickness less than 3mm Paper, Cardboard and other sheet-like non-metallic materials.

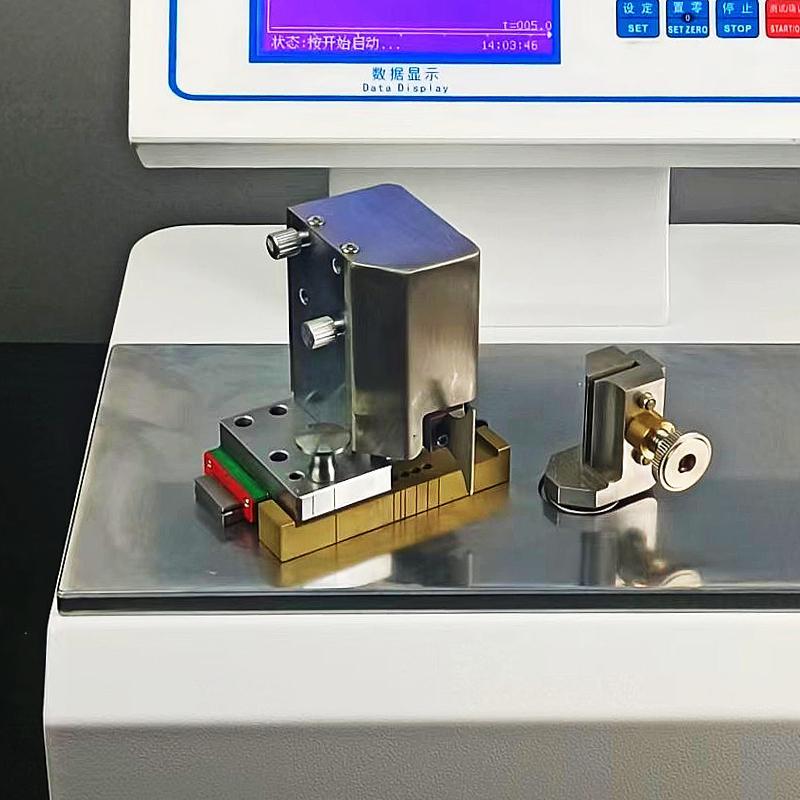

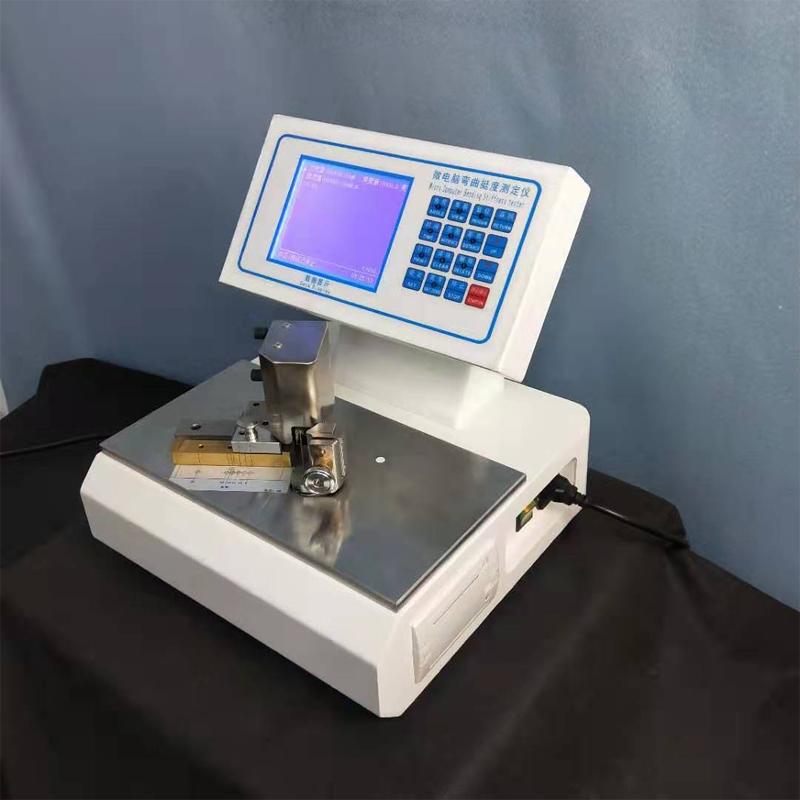

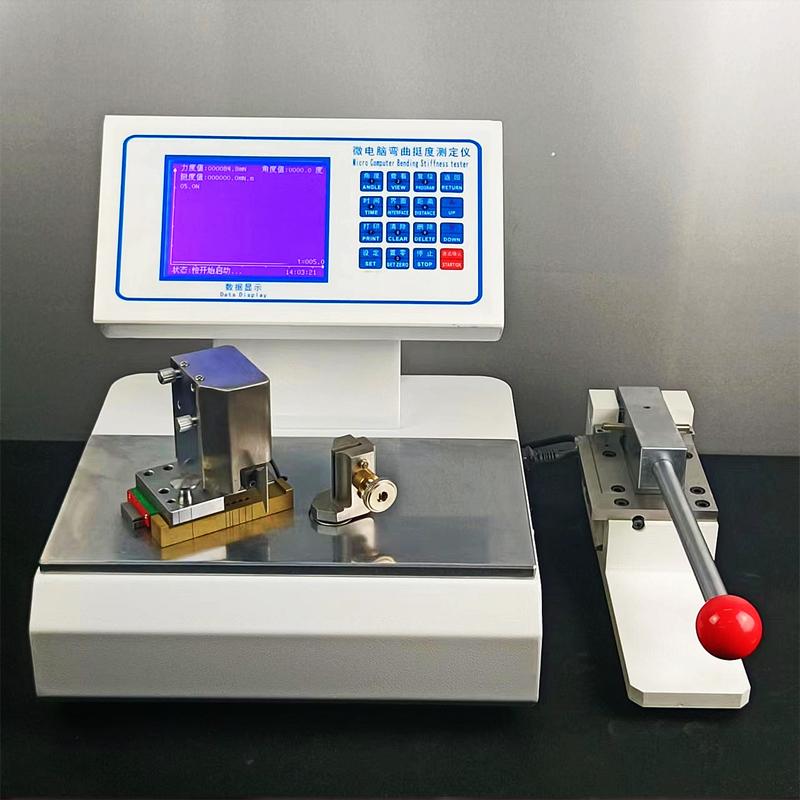

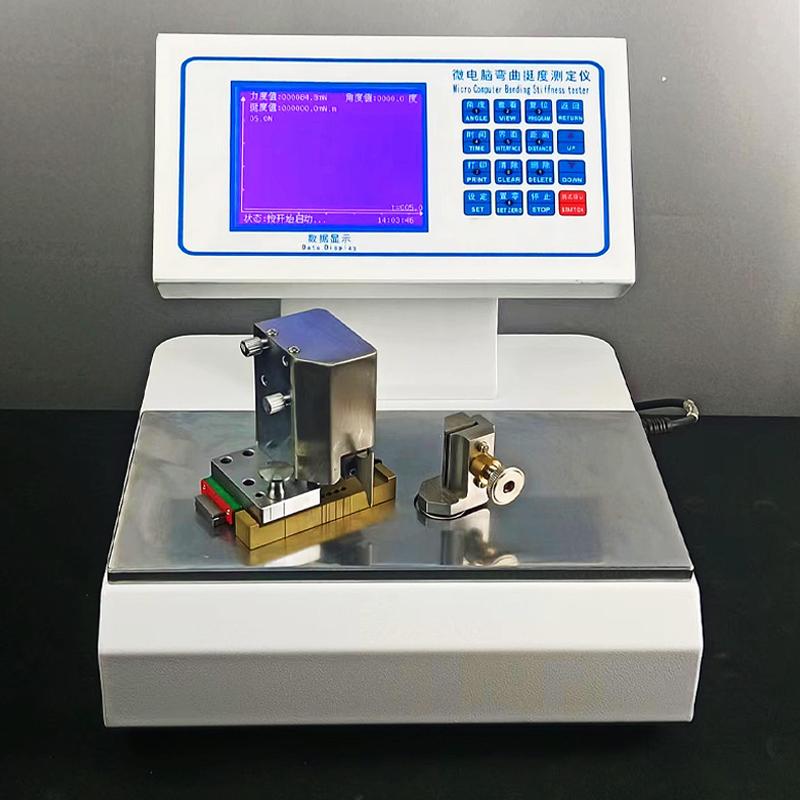

LD-TD-A Paper Cardboard Bending Stiffness Tester Picture

Applications

LD-TD-A cardboard Bending Stiffness Tester is a multifunctional intelligent microcomputer stiffness Tester, which is suitable for measuring the bending stiffness of paper, cardboard and other strong sheet non-metallic materials with a thickness of less than 3mm.

The test angle of the instrument can be set arbitrarily between (1~90)°, and the test time can be set arbitrarily within the specified range (3s~30s). With automatic zero-adjustment test function, it is a fully automatic stiffness Tester with a color screen as the man-machine interface introduced in CHINA. It can display the stiffness and time curve in real time, and the touch screen is easy and convenient to operate. This instrument has the functions of various parameter testing, display, memory, statistics and printing included in the standard, and provides scientific data analysis for cardboard bending stiffness testing.

Executive standard:

GB/T 23144 "General Principles for the Determination of Static Bending Stiffness of Paper and Board"

GB22364-2008 "Determination of Bending Stiffness of Paper and Cardboard"

ISO 5628 "Paper and board - Determination of static bending stiffness - General principles"

ISO 2493 "Paper and board - Determination of bending stiffness"

Features

7.5° and 15° stiffness test (arbitrary setting between (1～90)°);

The test time can be set at any number between (3～30)s;

The change of test angle is automatically controlled by the motor, which improves the measurement efficiency and reduces the human influence;

6 kinds of bending length tests can be carried out: 50mm, 25mm, 20mm, 15mm, 10mm, 5mm;

With automatic zeroing function, there is no need to manually check the sample before testing;

It has the functions of measurement statistics and printing, and the measurement time can be set; 1. It adopts high-tech digital motor and simplified and practical transmission structure.

The measurement and control system uses a single-chip microcomputer as the central processing unit.

Equipped with corresponding application software to control the whole machine, data acquisition and data processing.

The test data is displayed by the liquid crystal display window, and the test report is printed by the printer. The whole machine has a simple structure, complete functions, and is particularly convenient to operate.

FAQ
QI want to measure the flexural stiffness of Cardboard. Do you have a recommended instrument?
A LD-TD-A paper Cardboard bending stiffness tester is controlled by intelligent microcomputer, specially used to measure the bending resistance of paper and Cardboard sheet materials with a thickness of less than 3 mm. It is simple to operate, has a touch color screen, and can automatically adjust zero. The measured data is accurate and efficient.
QOur laboratory needs to measure Cardboard stiffness according to national standard.
A Applicable. LD-TD-A strictly follows national and international standards such as GB/T 23144 and GB22364-2008 (such as ISO 5628). It is particularly suitable for Quality inspection organizations, paper factory laboratories, etc. for raw material acceptance, process quality control or finished product inspection. Because it can accurately measure bending stiffness and provide scientific Data analysis and print reports to ensure your test results compliance and reliability.
QCan the test angle and time of this instrument be set by yourself?
A Yes, the test angle can be arbitrarily set between 1 and 90 degrees, commonly 7.5 degrees and 15 degrees; the test time can also be freely set within 3 to 30 seconds.
QCan the paper Cardboard bending stiffness tester measure this filter material? Similar to filter paper
A You can test it, or you can send a sample for testing.
QJHTD-A paper Cardboard bending stiffness tester measures the filter material. Can this paper be measured?
A You can test it, or you can send a sample for testing.
QStiffness meter test angle?
A The maximum test angle of this instrument can reach 90 degrees.
QDoes JH-TD-A bending stiffness tester have statistical function?
A Hello, this one has measurement statistics, printing and other functions.
QDo you have the paper Cardboard stiffness tester required by GB/T10335.3 standard?
A This JH-TD-A paper Cardboard bending stiffness tester will do.
