LD-BSTD-01 Cup body stiffness Tester Stiffness Meter

SE
Disposable paper cup paper bowl stiffness test, can be customized when the paper cup size is larger than the range. According to QB/T 2294
$1809.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

JingHuaYiQi LD-BSTD-01 Cup stiffness TesterSPEC

JingHuaYiQi LD-BSTD-01 Cup stiffness TesterDetails

JingHuaYiQi LD-BSTD-01 Cup stiffness TesterPacking list

SKU
NB033552
Error of indication
±1%
Indication of variability
≤1%
Measurable paper cup diameter
20-150mm
Paper Cup height
15≤L≤120mm
Test speed
50 ± 2.5mm/min (1-200 continuously adjustable)
Force distance
9.5±0.5mm
Dimensions
380*260*290mm
LD-BSTD-01
Cup stiffness Tester
Disposable paper cup paper bowl stiffness test, can be customized when the paper cup size is larger than the range. According to QB/T 2294

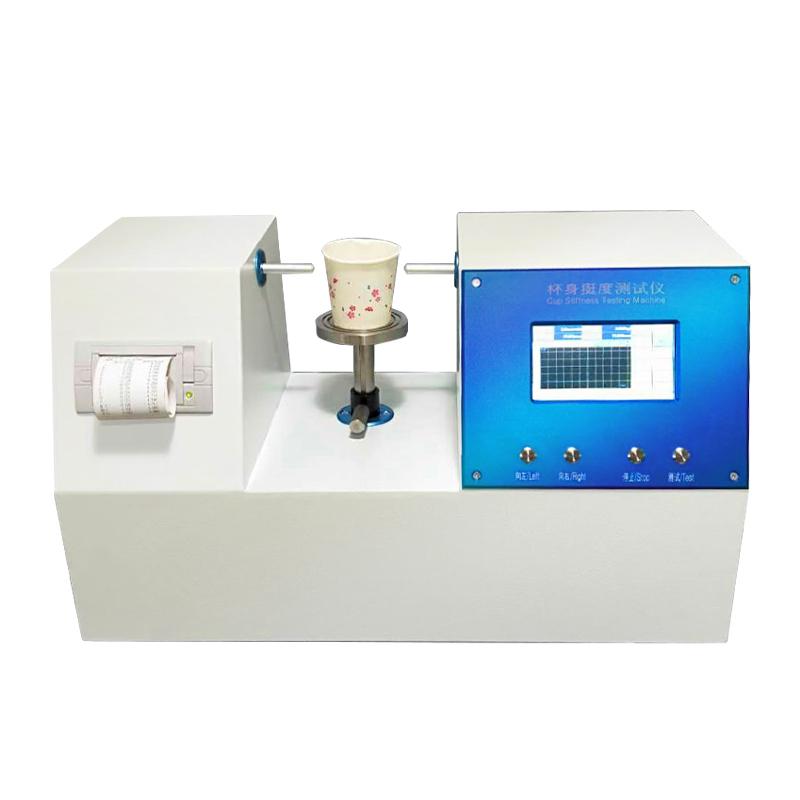

LD-BSTD-01 Cup body stiffness Tester Stiffness Meter Picture

Applications

LD-BSTD-01 Electronic Paper Cup Body Stiffness Tester is designed according to the principle requirements of the mechanical paper cup body stiffness Tester in the QB/T 2294-2006 "Paper Cup" standard. The instrument is a fully automatic electronic testing instrument, easy to use, wide testing range, suitable for measuring the body stiffness of various volume cups. The paper cup physical performance testing instrument required by the inspection department.

technical characteristics

1. Microcomputer processing system, aluminum alloy sandblasting control panel, touch screen LCD display

2. Fully automatic electronic testing equipment, easy to use and wider testing range

3. One-key operation during the experiment to avoid human error

4. Computer measurement and control can automatically judge the initial test state

5. Built-in tray automatic lifting function, high degree of automation

6. Double measuring head structure design, more accurate test data

7. Test with real-time curve function

8. Micro printer, print test data at any time


FAQ
QOur factory mainly produces paper cups of various specifications. If you want to test the stiffness of the cup body, do you have any recommended instruments?
A LD-BSTD-01 cup body stiffness tester is specially designed according to the paper cup industry standard, which can fully automatically measure the stiffness in the range of 0 to 20N, with high accuracy and simple operation.
QQuality inspection organization, we need to test the strength of different sizes of paper cups, choose what equipment?
A LD-BSTD-01 is very suitable for various paper cups with a measuring diameter of 20 to 150 mm and a height of 15 to 120 mm, with a wide testing range. The instrument adopts a dual measurement head design for more accurate data, and also has real-time Linear dispersion and printing functions. It is very convenient to issue reports, which can fully meet your third-party testing requirements for accuracy and versatility.
QStiffness meter wants to buy, the function should be full point, the operation can not be too complicated, do you recommend?
A You can consider the LD-BSTD-01 cup body stiffness tester. It has full functions, such as automatic lifting tray and computer automatic judgment of status. Basically, just put the cup and press a button to avoid human error. And Touchscreen control, the results are directly displayed and printed, which is not troublesome to use, and can be used from research and development to quality control.
QWhat is the range of this essence cup Stiffness meter?
A Hello, the measurement range is 0~ 20N.
