DONGRU DR80 light transmitance Tester

SE
DONGRU DR80 light transmitance Tester Measurement range 0.0 - 99.9%, measurement number% beam of light transmission, measurement object thickness can not exceed 25mm, DR80 light transmitance Tester is mainly used for measurement of various Glass, plastic, film and matte, milky white material and other transparent or translucent material of visible light Transmittance.
$568.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

DongRu DR80 Light transmitance TesterSPEC

DongRu DR80 Light transmitance TesterDetails

DongRu DR80 Light transmitance TesterPacking list

SKU
NB033591
Measurement range
0.0~99.9%
Measurement quantity
% beam of light transmission
The maximum thickness of the measurement object cannot exceed
25mm (more than 10mm, another test frame must be selected)
The measurement area should not be less than
16mm*16mm
Measurement Accuracy
±2%
Resolution
0.10%
Main Dimensions
129mm*70mm*25.5mm
Probe Dimensions
Φ38mm*118mm
Power
Three (7) alkaline batteries
operating temperature
0℃-40℃
Relative Humidity
Not more than 85%
Wavelength range
380-780nm
DR80
Light transmitance Tester

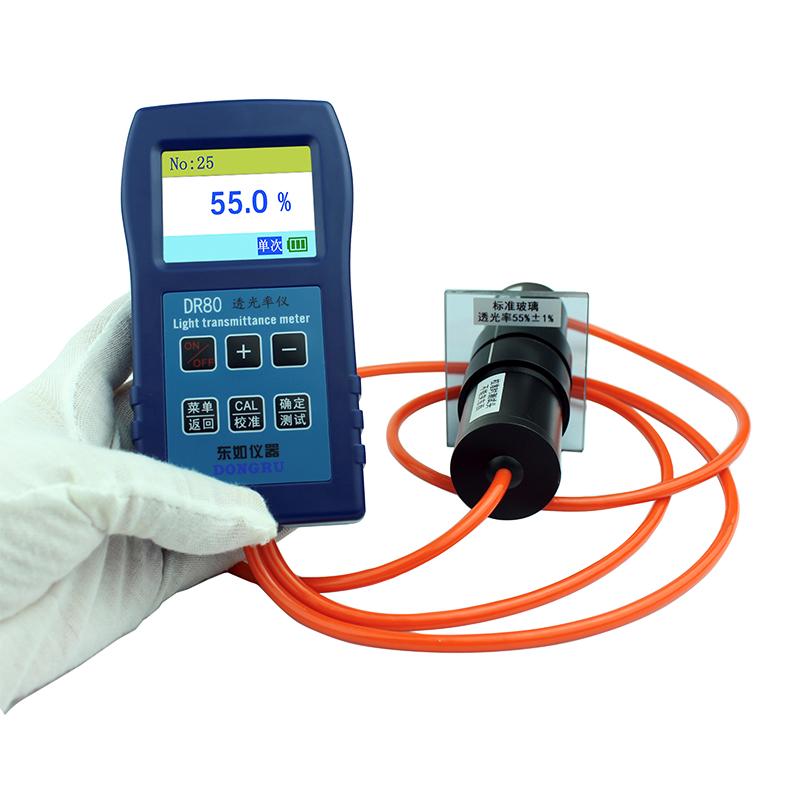

DONGRU DR80 light transmitance Tester Picture

1. Introduction

The ratio of the luminous flux passing through the object to the luminous flux incident on the object is the light transmittance of the object, expressed as a percentage. DR80 light transmittance meter is mainly used to measure the visible light transmittance of various transparent or translucent materials such as glass, plastic, film and frosted, milky white materials. This instrument is made of imported components according to the optical principle, and its operation is simple. , accurate measurement, small size, wide measurement range, easy to carry, especially suitable for on-site measurement.

2. Application scope

On-site measurement in automobile manufacturing and testing, glass products, aerospace and other industries.

Light transmittance measurement of protective film, PC, acrylic and other plastic products.

Light transmittance measurement of printing, matte, aluminized film and milky white materials.

Transmittance measurement of other transparent or translucent materials.

3. Features

Split type light transmittance meter, easy to operate

Fast measurement speed, good sensitivity and high measurement accuracy

There are two test modes: single test (SINGLE) and continuous (CONT INUE) measurement mode

There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), measurement times

Large capacity storage, can store 2000 measurement data

2.3 inch color display

Chinese and English bilingual version

Instrument start-up manual calibration

The operation process is marked with a buzzer (single measurement mode)

Large LCD with backlight, low Voltage indicator

Manual/automatic shutdown function

FAQ
QWhat is the power supply of DR80 Transmittance meter?
A DR80 Transmittance meter uses built-in lithium battery as power supply, capacity is 3000mAH, support charging, environmental protection and convenience.
QWhat are the test modes of the DR80 instrument in light transmitance measurement?
A DR80 Transmittance meter has two test modes, Single Measurement mode and Continuous Measurement mode.
QDoes the DR80 Transmittance meter have a low voltage indication?
A Yes, the DR80 Transmittance meter has a low voltage indicator function, which can remind the user to charge or replace the battery in time.
QWhat measurements does the DR80 Transmittance meter display?
A The DR80 Transmittance meter has four statistical functions, including MAX Maximum (MAX), MIN Minimum (MIN), Average (MEA), and number of measurements.
QWhat material does DR80 Transmittance meter mainly measure?
A It is mainly used for the measurement of visible light Transmittance of various transparent or translucent materials, including Glass, Plastic, Film, Frosted, Milky White materials, etc.
QHow many test modes are available?
A DR80 Transmittance meter has two test modes, Single Measurement mode (SINGLE) and Continuous Measurement mode (CONTINUE)
QHow many light transmitance measurement data can be stored?
A The DR80 Transmittance meter has a large storage capacity and can store 2000 measurement data.
