Digital Viscometer NDJ-5S YONGLIDA 10~100000mPa·s Viscosity range Rotation speed adjustable
-
HUINUO NDJ-5S digital display Rotational Viscometer 100,000 CP$ 448.00SE -
HUINUO NDJ-5S Digital Rotational Viscometer Viscosimeter with L0 rotor$ 556.00SE -
HUINUO NDJ-5S Digital Rotational Viscometer with RTD temperature sensor$ 466.00SE -
HUINUO NDJ-5S Laboratory Rotational Viscometer with a small number of sample adapters$ 801.00SE -
HUINUO NDJ-1S digital Rotational Viscometer with RTD temperature sensor$ 411.00SE
YongLiDa NDJ-5S Digital ViscometerSPEC
YongLiDa NDJ-5S Digital ViscometerDetails
YongLiDa NDJ-5S Digital ViscometerPacking list
- SKU
- NB003361
- Display mode
- digital
- Measurement range
- 10~100000mPa·s
- Rotor specification
- 1 #, 2 #, 3 #, 4 #(0 #optional)
- Rotor speed
- 6/12/30/60rpm
- Measurement Accuracy
- ±5%F.S
- Power
- 220V/50Hz
- Interface
- RS-232
- Display information
- Rotation speed, rotor type, viscosity results
NDJ-5S digital viscometer overview
Yonglida NDJ-5S digital viscometer is a digital display rotary viscometer. It is an intelligent liquid viscosity measuring instrument. It automatically completes the measurement of liquid viscosity through computer program control and directly displays the measured viscosity on the LCD. value. NDJ-5S digital viscometer adopts MCS-1 series microcomputer-controlled stepper motor, which can realize continuous adjustment of speed and ensure the accuracy of measuring viscosity. The measurement viscosity range of NDJ-5S is 10~100000mPa·s, and it is equipped with No. 1~4 rotors.
NDJ-5S digital viscometer application
It is used to measure the viscous resistance and absolute viscosity of liquids, and is used in grease, paint, food, adhesives, cosmetics and other industries and scientific research institutions.

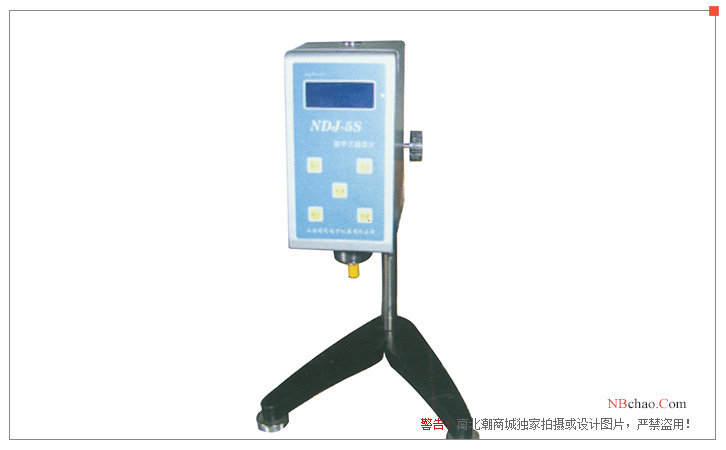

NDJ-5S digital viscometer display diagram
- 1ISO 12634-2017《Graphic technology Determination of tack of paste inks and vehicles by a rotary tackmeter》
- 2JJG 1002-2005《Rotational Viscometers》
- 3GB/T 22427.7-2008《Starch - Determination of viscosity》
- 4GB/T 12004.4-2003《Polyvinyl chloride paste--Determination of apparent viscosity by the Brookfield test method》
- 5SN/T 2903-2011《Dangerous goods Viscosity of flammable liquids Capillary method, rotational viscometer method, force ball Viscometer method》
- 6HG/T 3323-1982《Rubber viscosity determination method (rotational viscometer method)》
- 7SY/T 0522-2008《Determination of wax evolution point of crude oil rotational viscometer method》
- 8HG/T 3660-1999《Testing Methods for Melt Viscosity of Hot-melt Adhesives》
- 9GB/T 15357-2014《Surface active agents and detergents―Determination of viscosity and flow properties of liquid products using a rotational viscometer》
- 10SY/T 5377-2007《Electric rotational viscometer》
