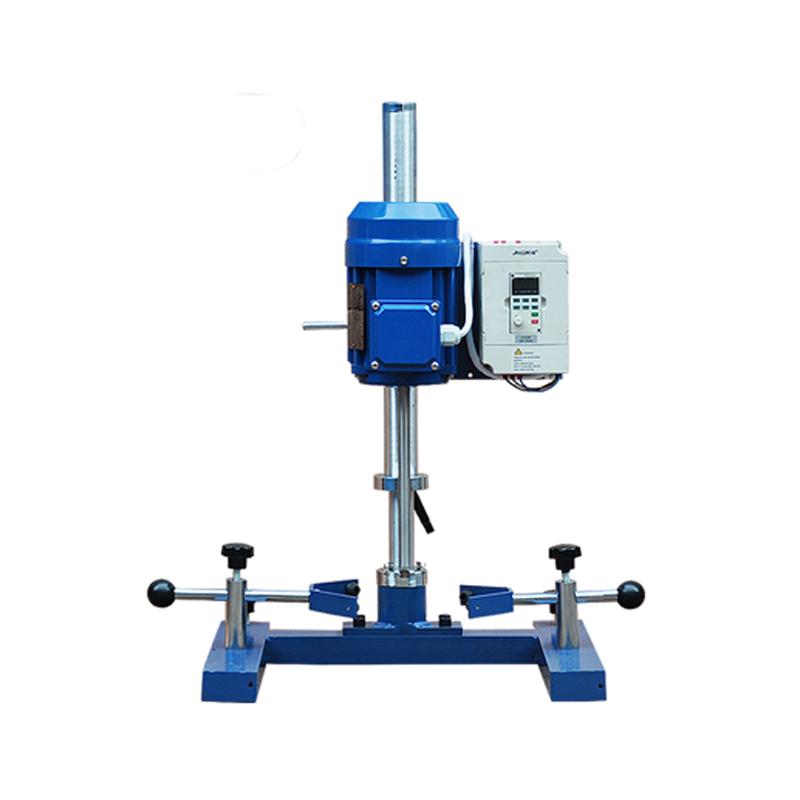

Huxi HR-550JBF round tube type (frequency conversion speed regulation) Disperser
SEHuxi HR-550JBF round tube type Disperser adopts variable frequency motor, it is an experimental digital display Disperser, HR-550JBF round tube type Disperser construction processing capacity 5L, power 550W, speed 0-8000r/min, Viscosity 20000cp, lifting method Round tube spring lifting, lifting stroke 260mm.
Model：
HR-550JBF
Similar products
-
HUXI HR-400JFS Laboratory High Speed grinding Disperser Square Tube 400W/3L$ 537.00SE -
MODERNER GFJ-0.4A High Speed Disperser Widely Used for Coating Dispersion, inks Dispersion -
Qiwei JFS-550S Inverter Disperser Electric Lifting 550w$ 542.00SE -
QIWEI JFS-750S Coating Variable Frequency Disperser Electric Lift 550w$ 696.00SE -
Qiwei JFS-550 Pigment high-speed variable frequency Disperser electric lift, with 5-liter Mixing Tank$ 618.00SE
HuXi HR-550JBF Circular Tube DisperserSPEC
HuXi HR-550JBF Circular Tube DisperserDetails
HuXi HR-550JBF Circular Tube DisperserPacking list
- SKU
- NB033644
- Motor type
- Brushless motor
- Bracket type
- Round tube small bracket
- Voltage
- 220V
- Recommended throughput
- 5L
- power
- 550W
- Speed regulation range
- 0~8000rpm
- Viscosity
- 20000cp
- Lifting method
- Round tube spring lift
- Lifting stroke
- 260mm
- Dimensions
- 740*450*420mm
- Bottom length and width
- 275*330mm
- Spindle length
- 210mm
- Spindle diameter
- 16mm
- Spindle distance from bracket
- 135mm
- Dispersion sheet off the ground
- 30mm
HR-550JBF
Circular Tube Disperser
Applications
Dexterity and convenience. The frequency conversion motor is selected, the operation is more stable, and the noise is low. Easily meet a variety of high-demand dispersion and stirring experimental requirements.
Features
The inverter motor is selected, the operation is stable, the noise is small, it can run for a long time, and the design is safe and reliable.
The dispersion disc is made of good stainless steel and has good corrosion resistance.
The dispersion disc is connected to the dispersion shaft by hexagon socket screws, which is easy and flexible to disassemble and assemble.
Frequency conversion stepless speed regulation, brushless motor, maintenance-free, no sparks, no dust, higher safety performance, ordinary bracket, spring lifting.
FAQ
QResin paints must have dispersion and sanding functions, and the sample volume is more than 1 liter. Which model is recommended?
A
This one will do.
QCan HR-550JBF be used for 2L and 1L tanks?
A
Jars can do
QIs there a 10,000 Disperser? Take a fancy to this series
A
Rotation speed is easy to change, this one can be changed, both 550jbf and 750jbf can be changed.
QResin paints, the sample volume is more than 1 liter, with dispersion and grinding functions, is this one suitable?
A
Yes, you can disperse the grinding, but you need to buy another grinding bead to do the grinding.
QAre you using that white plastic dispersion plate on the ground?
A
Yes!
QLaboratory high-speed ground Disperser, can add 5L cartridge and matching dispersion plate?
A
OK
QDo a few hundred grams of samples do offset mill dispersion, any suggestions?
A
If it is scattered, 550JBF will do. The dispersion plate is also small enough.
QWhat is the HUXI HR-550JBF Disperser lifted by?
A
Hello, it is lifted by a round tube spring.
QIs the HUXI 550JBF Disperser a manual lift or an electric lift?
A
Hello, this round tube Disperser adopts the round tube spring lifting method.
QHow many liters of samples can the frequency conversion speed control Disperser HR-550JBF generally handle?
A
Hello, it is usually 5L.
