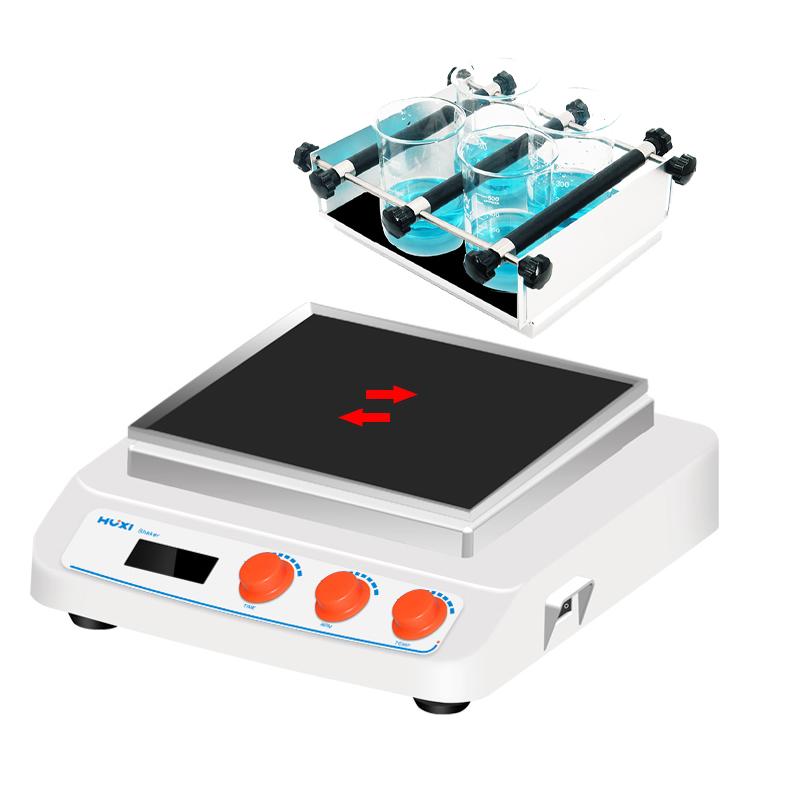

HUXI HT-W330G Heatable, Multifunctional Desktop Shaker (Reciprocating)
SE
HT-W330G
HuXi HT-W330G Multifunctional Desktop ShakerSPEC
HuXi HT-W330G Multifunctional Desktop ShakerDetails
HuXi HT-W330G Multifunctional Desktop ShakerPacking list
- SKU
- NB033651
- Oscillation method
- Reciprocating
- temperature setting
- RT+5～100°C
- temperature resolution
- 0.1℃
- power
- 35W/185W
- Oscillation Stroke
- 8MM
- Maximum load Weight
- 7.5KG
- Motor type
- DC brushless motor
- Motor input power
- 35W
- Motor output power
- 25W
- Oscillation frequency
- 60~400Rpm (optional up to 500)
- Speed display
- LCD
- Timing display
- LCD
- Timer
- 99 hours 59 minutes
- Power
- 100~240V,50/60Hz
- Weight
- 8.5KG
- Allowable environment temperature/humidity
- 5~40℃, 80%
- Dimensions
- 330*370*130mm
- Shell protection grade
- IP21
- Data Interface
- RS232 optional
Applications
The new generation of multi-functional desktop shaker adopts DC brushless motor and microcomputer control technology, unique knob operation mode is simple and easy to use, and can mix and culture all kinds of commonly used flasks, petri dishes, and beakers by changing different trays. It is suitable for use in the fields of biotechnology, microbiology and medical analysis, coloring or decolorization of colloids and combinatorial chemistry. The heating series combines oscillation and heating functions to solve the problem of rapid heating and at the same time fully open experimental samples, and the samples are swirled or reciprocated, mixed and incubated.
Features
The large-screen LCD displays the Timer Setting, speed and temperature value, and the operation interface is simple and easy to understand;
Locking operation mode to prevent misoperation;
Driven by brushless DC motor, low noise, accurate speed, long service life, maintenance-free;
A wide range of pallets, cradles, and fixtures are available for a wide range of needs;
Accessories are easy to replace, which greatly improves work efficiency;
Soft start, uniform acceleration, effectively avoid sample splashing;
RS232 interface is optional, and the computer can be connected to the computer through the RS232 interface, which can realize the real-time display of the instrument parameters and working curves on the computer side;
The heating series has a fast heating speed and a wide temperature range, and the maximum temperature can reach more than 100°C, making up for the gap that the oscillator cannot operate at high temperature.
Optional
| Pallet name | Fitting parameters | remark |
| Universal pallets | 210*282mm | Multiple Petri dishes or screw-top cell culture flasks/crooked neck flasks can be placed |
| Adjustable tray | 210*282mm | Put 4 beakers of 500 ml |
| Spring trays | 210*282mm | Holds 6 200 ml Erlenmeyer flasks |
| Secure the tray | 210*282mm | Multiple Petri dishes or screw-top cell culture flasks/crooked neck flasks can be placed |
| Flask clamp tray | 1）6*250ml 2）8*100ml 3）8*50ml 4）8*25ml | 1) 6 250ml Erlenmeyer flasks can be placed 2) 8 100ml Erlenmeyer flasks can be placed 3) 8 50ml Erlenmeyer flasks can be placed 4) 8 25ml Erlenmeyer flasks can be placed |
| Non-standard customized pallets | 210*282mm | It can be customized according to customer needs |
