QXD 0-100 Fineness Gauge YONGLIDA QXD Fineness Gauge

SE
Single-channe, range 0~100μm, scale unit μm, scraper material Cr12 molybdenum vanadium, scraper size 155 * 50 * 13mm, applicable standard GB/T1724, Graduation 10μm.
$125.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

YongLiDa QXD0-100 GrindometerSPEC

YongLiDa QXD0-100 GrindometerDetails

YongLiDa QXD0-100 GrindometerPacking list

SKU
NB003366
Scraper type
Single-channe
Number of grooves
1
range
0 ~ 100µm
Scale unit
mm
Scraper material
Cr12 molybdenum vanadium
Scraper size
155*50*13mm
Applicable standard
GB/T1724
Graduation
10µm
QXD0-100
Grindometer
Single-channe, range 0~100μm, scale unit μm, scraper material Cr12 molybdenum vanadium, scraper size 155 * 50 * 13mm, applicable standard GB/T1724, Graduation 10μm.

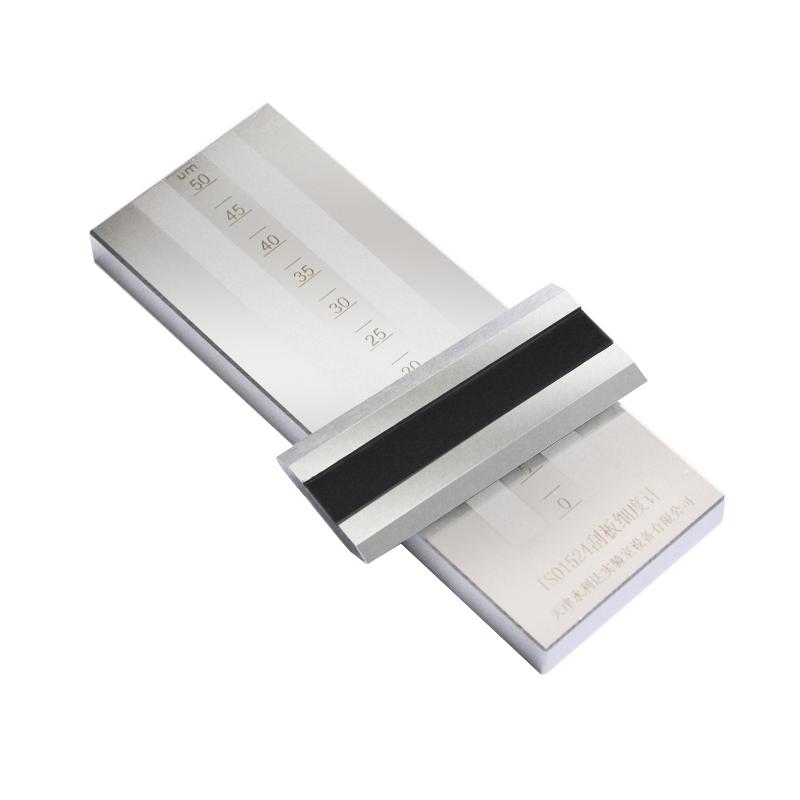

QXD 0-100 Fineness Gauge YONGLIDA QXD Fineness Gauge Picture

Introduction to QXD0-100 fineness plate

Yonglida QXD0-100 fineness plate is a single-slot Fineness of Grind Gauge with a measuring fineness range of 0~100μm. Made of vanadium steel, it has good wear resistance. The measurement division value of QXD0-100 fineness plate is 10μm.

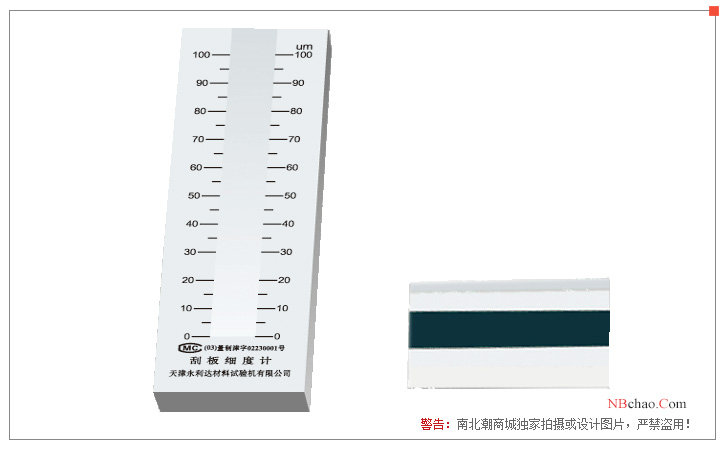

QXD0-100 fineness plate display

Yonglida QXD0-100 fineness board display

FAQ
QWhat is the minimum scaling interval for a 100 μm scraper Fineness meter?
A Hello, it's 10μm.
QI want to do a test on the JT/T821.4 standard. Is this Fineness gauge okay?
A Sure
QCan the QXD100 single-channe Fineness gauge detect coatings closer to 75 microns?
A In line with the scraper fineness Measurement can scrape the material fineness below 0~ 100μm.
QWhat instrument is used for the measurement of the size of solid aggregates in the slurry?
A This type of scraper Fineness meter can determine the Fineness in the slurry. The scraper Fineness meter method is an accurate, fast and easy-to-operate method. The specific model selection can be based on your estimated slurry Fineness. For details, please consult the technical engineer of NBchao. Com Mall.
