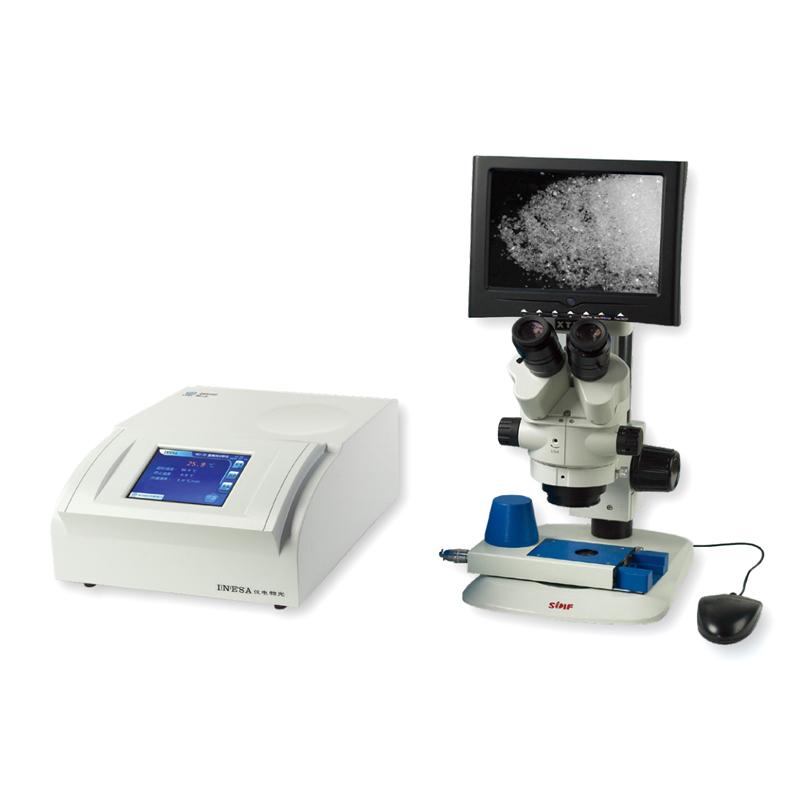

INESA WRX-2S Thermal Analyzer
SEUsing PWM pulse program temperature control and 7-inch color touch screen, with 0.1 ℃ high resolution and 3000 sets of data storage functions, realize TOA thermal analysis under Microscope, suitable for melting point determination of micro and slice samples and bioengineering thermodynamics research, support USB and RS232 interface
$5753.00/set
PromotionLoading...
Coupon
Model：
WRX-2S full set of 4
Similar products
INESA WRX-2S full set of 4 Thermal Microscope AnalyzerSPEC
INESA WRX-2S full set of 4 Thermal Microscope AnalyzerDetails
INESA WRX-2S full set of 4 Thermal Microscope AnalyzerPacking list
- SKU
- NB033671
- Temperature range
- RT+~300℃
- Measuring method
- Hot stage method, visual
- Temperature Resolution
- 0.1℃
- Heating rate
- Optional continuously between 0.1 and 20 ℃/min
- error of indication
- ±0.5℃(≤200℃)；±0.7℃(>200℃)
- Repeatability
- ±0.3℃(1.0℃/min)
- linear Heating rate error
- ±10%
- Data storage
- 3000 sets
- Printer model
- RD-TH32-SC (optional)
- Display mode
- 7-Inch color LCD touch screen
- Interface
- RS232/USB
- Slide thickness
- 0.8~1.2mm
- Slide thickness
- 0.17mm
- magnification
- ≥ 40X (depending on the configured Microscope)
- Power Supply
- 220V±22V 50Hz±1Hz
- Hot mirror table size
- 195mm×28mm×85mm
- Digital display unit size
- 290mm×170mm×360mm
- Net Weight of instrument
- 9Kg (without Microscope)
- XSP-8CA Trinocular Biological Microscope (Set 1)
- Electronic eyepiece with 1.30 million pixels
- XTZ-TV Video Continuous Diploidy Microscope (Set 2)
- With Display, continuous zoom
- 59XC Trinocular Polarizing Microscope (Set 3)
- Electronic eyepiece with 1.30 million pixels for polarized viewing
- 69XCL reflection Polarizing Microscope (Set 4)
- Electronic eyepiece with 1.30 million pixels for polarized viewing
WRX-2S full set of 4
Thermal Microscope Analyzer
Using PWM pulse program temperature control and 7-inch color touch screen, with 0.1 ℃ high resolution and 3000 sets of data storage functions, realize TOA thermal analysis under Microscope, suitable for melting point determination of micro and slice samples and bioengineering thermodynamics research, support USB and RS232 interface
Features
THE MICROTHERMAL ANALYZER IS SUITABLE FOR STUDYING AND MEASURING THE THERMAL PROPERTIES OF THE MEASURED SUBSTANCE UNDER THE MICROSCOPE, WHICH IS CALLED TOA ANALYSIS (THERMO-OPTICAL ANALYSIS). It can be used as a melting point determination for trace samples, the melting point of sectioned samples, and for bioengineering thermodynamic research. It has a wide range of uses in synthetic fibers, chemical industry, biology, mineralogy, criminology and other fields.
The instrument adopts PWM pulse program temperature control and color LCD touch screen display technology, and has 3000 sets of test data storage function.
The instrument is equipped with a USB interface to transmit data to a PC, and an RS232 interface can be connected to a micro printer (optional) for printing.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
Standard
