INESA WGG-60 Glossmeter 60 °

SE
INESA microcomputer Glossmeter WGG-60 is a portable Glossmeter, Measurement range 0~120GU, WGG-60 Glossmeter meets ASTM D523, ASTM D1455, ASTM D2457 and other standards.
Model：
Certificate
Contact
Details SPEC OI

INESA WGG-60 Microcomputer GlossmeterSPEC

INESA WGG-60 Microcomputer GlossmeterDetails

INESA WGG-60 Microcomputer GlossmeterPacking list

SKU
NB033685
Measurement angle
60°
Measurement range
0~120GU
Light spot size
9×14mm
Graduation
0.1GU
Error of indication
±1.5GU
Repeatability
±0.4GU
Measurement time
0.8s
Display
Color liquid crystal display
interface language
Chinese
Operating temperature
0-40℃
Power Supply
2 AA alkaline batteries
Instrument size
171mm×60mm×91mm
Net Weight of instrument
400 g
Standards
JJG 696 Level 1 Glossiness Requirements
WGG-60
Microcomputer Glossmeter

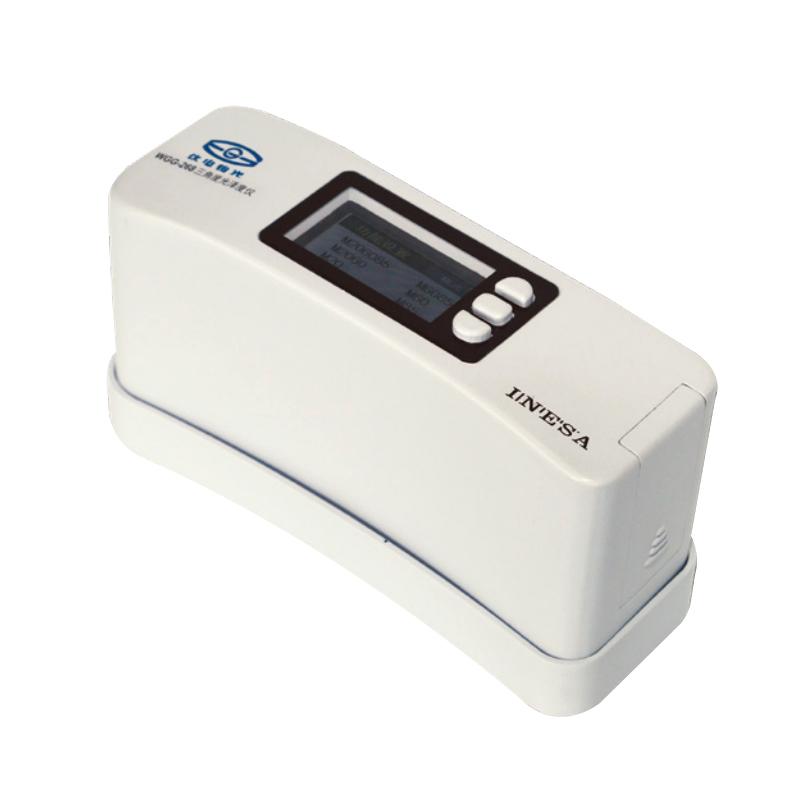

INESA WGG-60 Glossmeter 60 ° Picture

Introduction

WGG-60 gloss meter is an instrument that uses the working principle of photoelectric reflection to determine the brightness of the surface of an object. Its technical parameters meet the relevant requirements of the national standard GB9754-88, the international standard ISO2813 "Measurement of Mirror Gloss of Non-metallic Coating Film 20 °, 60 ° and 85 °", so the scope of application is larger, and the performance indicators meet the relevant requirements of the national metrology verification regulations JJG696-2002. The instrument is small in size, light in weight, easy to carry, energy-saving, power-saving, instant measurement, no waiting time, stable value, no drift, easy to measure quickly. This instrument is suitable for measuring the gloss of paints, coatings, inks, stones, paper, enamels, tiles, furniture, home appliances, plastic products, packaging and decoration and other flat products.

In addition, this instrument is also applicable to the following standards: ASTM D523 Standard Test Method for Specular Gloss, ASTM D1455 Standard Test Method for 60° Specular Gloss of Latex Floor Polishing Paint, ASTM D2457 Standard Test Method for Mirror Gloss of Plastic Films, and JIS Z8741 Method for Measuring Specular Gloss.


FAQ
QCan I test the gloss of latex floor polishing paint?
A Hello, yes, this WGG60 Gloss meter complies with ASTM D1455 standard.
QWhy is the decimal point not displayed after my Gloss meter is turned on?
A Hello, please check: 1) Whether the battery capacity is sufficient; 2) Check whether the spring sheet in the battery box is ejected.
QHow to calibrate this WGG-60 gloss meter?
A Hello, set the value of the black standard board as the default value for calibration. Press the "Settings" button once to display XXX, and press the "Settings" button again. The ten-digit value is incremented by X + 1. Keep pressing the "Settings" button to the ten-digit value you need. Press the "Calibration" button to repeability the above steps and set the single-digit value. Press the "Calibration" button to set the value after the decimal point. Finally, press the "Calibration" button, and the setting is completed at this time.
QCan this glossmeter be applied to GB/T1766?
A OK
