YONGLIDA QXP0-100 ISO Grindometer 10 μm scale

SE
Single-channe, range 0~100μm, scale unit μm, scraper material Cr12 molybdenum vanadium, scraper size 175 * 65 * 13mm, applicable to standard GB/T 1724, Graduation 10μm.
$164.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

YongLiDa QXP0-100 ISO Grindometer (single-channe)SPEC

YongLiDa QXP0-100 ISO Grindometer (single-channe)Details

YongLiDa QXP0-100 ISO Grindometer (single-channe)Packing list

SKU
NB003369
Scraper type
Single-channe
Number of grooves
1
range
0 ~ 100µm
Scale unit
mm
Scraper material
Cr12 molybdenum vanadium
Scraper size
175*65*13mm
Applicable standard
GB/T 1724
Graduation
10µm
QXP0-100
ISO Grindometer (single-channe)
Single-channe, range 0~100μm, scale unit μm, scraper material Cr12 molybdenum vanadium, scraper size 175 * 65 * 13mm, applicable to standard GB/T 1724, Graduation 10μm.

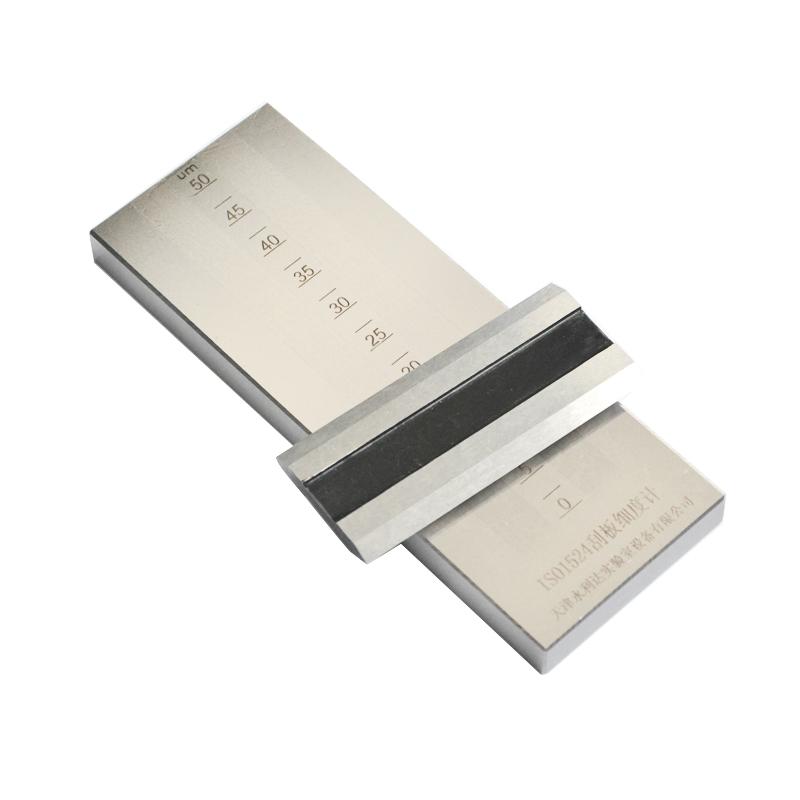

YONGLIDA QXP0-100 ISO Grindometer 10 μm scale Picture

Overview of QXP0-25/50/100 ISO Fineness of Grind Gauge

Yonglida ISO Fineness of Grind Gauge is a single-slot Fineness of Grind Gauge using Cr12 molybdenum vanadium steel. It is divided into three models: QXP0-25, QXP0-50, and QXP0-100 according to the range of detection fineness. It is equipped with Correspondingly sized spatulas are available. QXP0-25/ QXP0- 50/ QXP0- 100 ISO Grindometer can be applied to the laboratory testing of GB/1724 standard.

QXP0-25/50/100 ISO Fineness of Grind Gauge display

Yonglida QXP0-25/QXP0-50/QXP0-100 ISO Fineness of Grind Gauge display

Model series

modelQXP0-25QXP0-50 _QXP0-100 _
Fineness range0~25μm0 ~ 50μm0 ~ 100μm
Division value2.5 μm5 μm10 μm
Dimensions175x65x13mm
materialCr12 molybdenum vanadium


FAQ
QWhat material is this Yonglida scraper Fineness meter made of?
A Hello, this one is made of Cr12 molybdenum vanadium steel.
QWhat specifications of Fineness gauge do primers generally use?
A Fineness requirements for primers are generally not higher than 50μm/60μm, and a Fineness gauge with a range of 0 to 100 can be used, either single-channe or double-channel.
QCan the YONGLIDA QXP0-100ISO Fineness gauge meet the JT/T821.4 standard?
A Applicable, you can consult the customer service of the mall for details about the JT/T821.4 standard.
QCan the QXP100 single-channe Fineness gauge measure paint up to 75 microns?
A In line with the ISO Fineness of Ground Gauge (single-channe) range, the material fineness can be scraped below 0~ 100μm.
